Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counter-clockwise when viewed from the bottom).

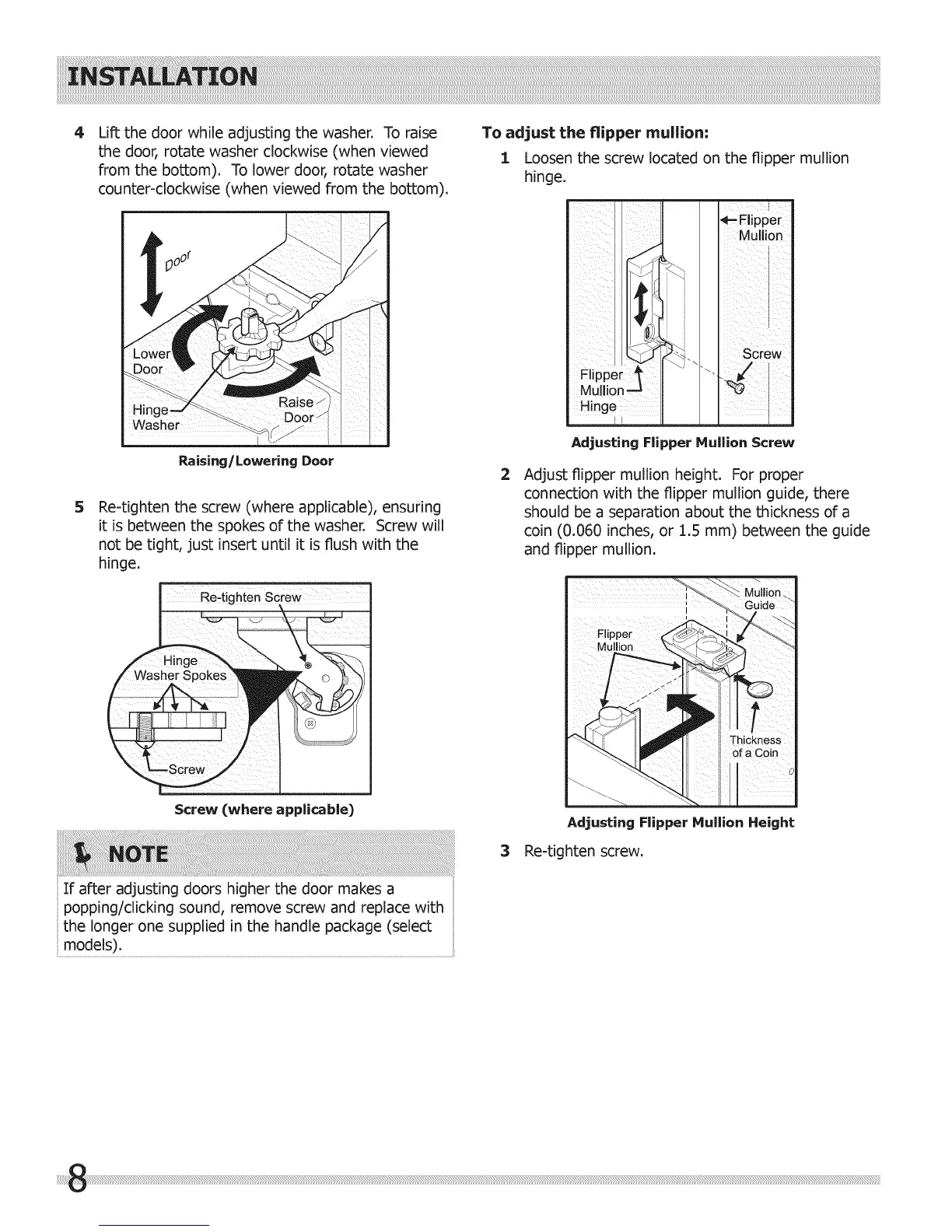

Raising/Lowering Door
Re-tighten the screw (where applicable), ensuring
it is between the spokes of the washer. Screw will
not be tight, just insert until it is flush with the
hinge.
To adjust the flipper mullion:
1 Loosen the screw located on the flipper mu!lion
hinge.
Adjusting Flipper Mullion Screw
2
Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
Screw (where applicable)
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace with
the longer one supplied in the handle package (select
Adjusting Flipper Mullion Height
3 Re-tighten screw.
