INSTALLATION
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(3) Retaining Clips
• Doors should align with each other and be
level.
Most of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front rollers:

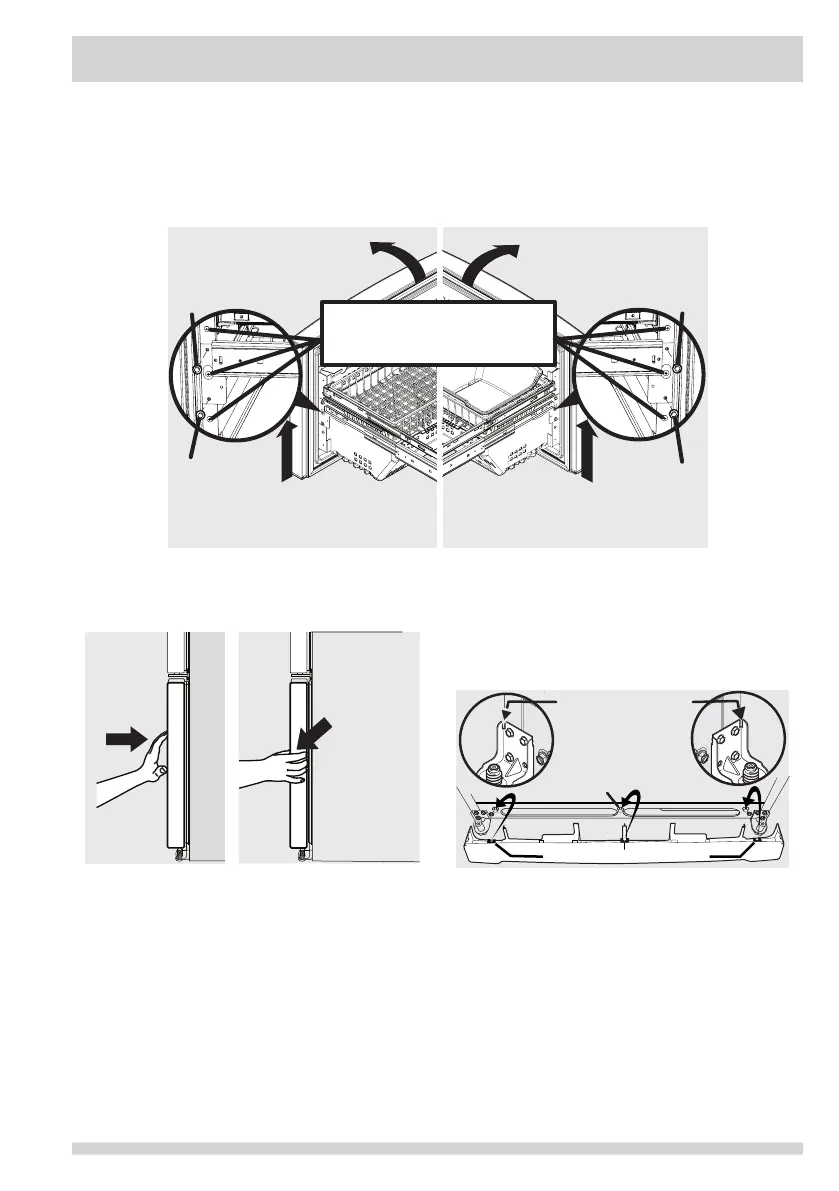

Leveling Freezer Drawer (if necessary)
To level the freezer drawer:
1 Check gasket seal around top, bottom, and sides of freezer drawer.
2 If gasket is not sealed, open drawer and slightly loosen four drawer screws (two on each side) to
allow drawer to rotate.
3 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not to
rotate the drawer.
4 Tighten four drawer screws.
5 Recheck gasket seal.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for nal positioning of your
refrigerator:
• Allfourcornersofthecabinetmustrestrmly
ontheoor.
• The sides should tilt ¼ inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
A
B
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
1 Slightly open freezer drawer. Lift the toe grille
and gently pull forward (see illustration).
2 You can raise or lower each door. Use a
⅜inchsocketwrenchtoturntheadjustment
screws (one per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
Head Drawer
Screw
Remove
Hex Head Drawer
Screw
Do Not Remove
Other Screws
Head Drawer
Screw
Remove
Hex Head Drawer
To Next Page
