Specifications
subject to change.
Meets
requirements of
ASSE 1006

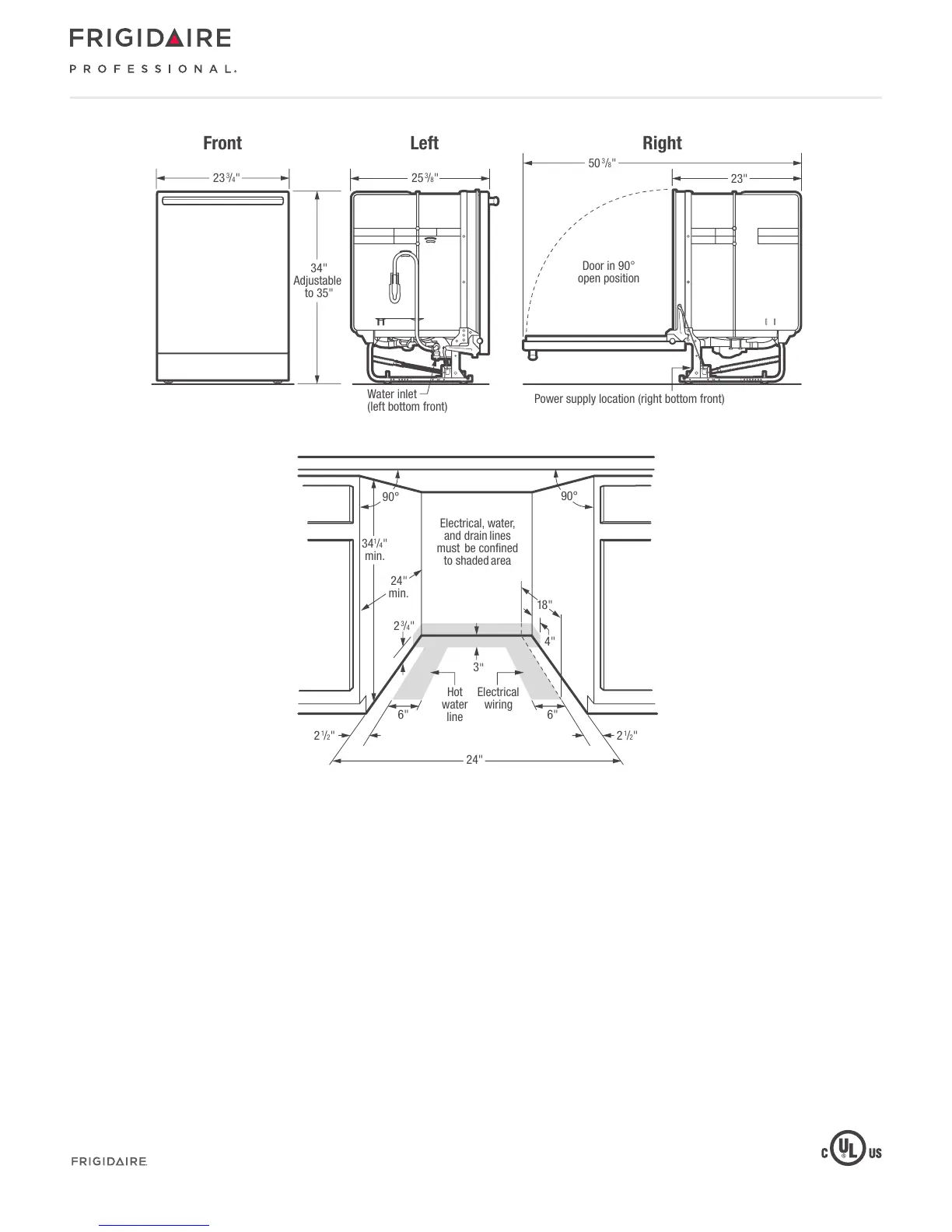

24" Built-In Dishwasher w/Integrated Controls (IC)
Professional (FPHD2491K)
1
/2"
4"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
6"
24"
2
3
/4"
90°
90°
3
"
34
1
/4"
min.
Hot
water
line
Electrical
wiring
Front
34"
Adjustable
to 35"
23
3
/4"
Power supply location (right bottom front)
50
3
/8"
23"
Right
Door in 90°
open position
Left
25
3
/8"
Water inlet
(left bottom front)
Dishwasher Specifications
•
Product Shipping Weight (approx.) – 90 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 10 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi) with at least 120° F
hot water temperature.
•
Make sure location has correct drain, water and electrical outlets
to make connections.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
•
Connections preferably located toward left side of dishwasher.
Do not cross drain, water or electrical lines in front of motor, blower
or frame.
•
If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
•
Leveling legs supplied to adjust height.
•
When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•
Floor should be flat and free of obstructions.
•
When installing at end of cabinet line, sides and back must be
fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moisture-
proof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FPHD2491K 02/14 © 2014 Electrolux Home Products, Inc.
