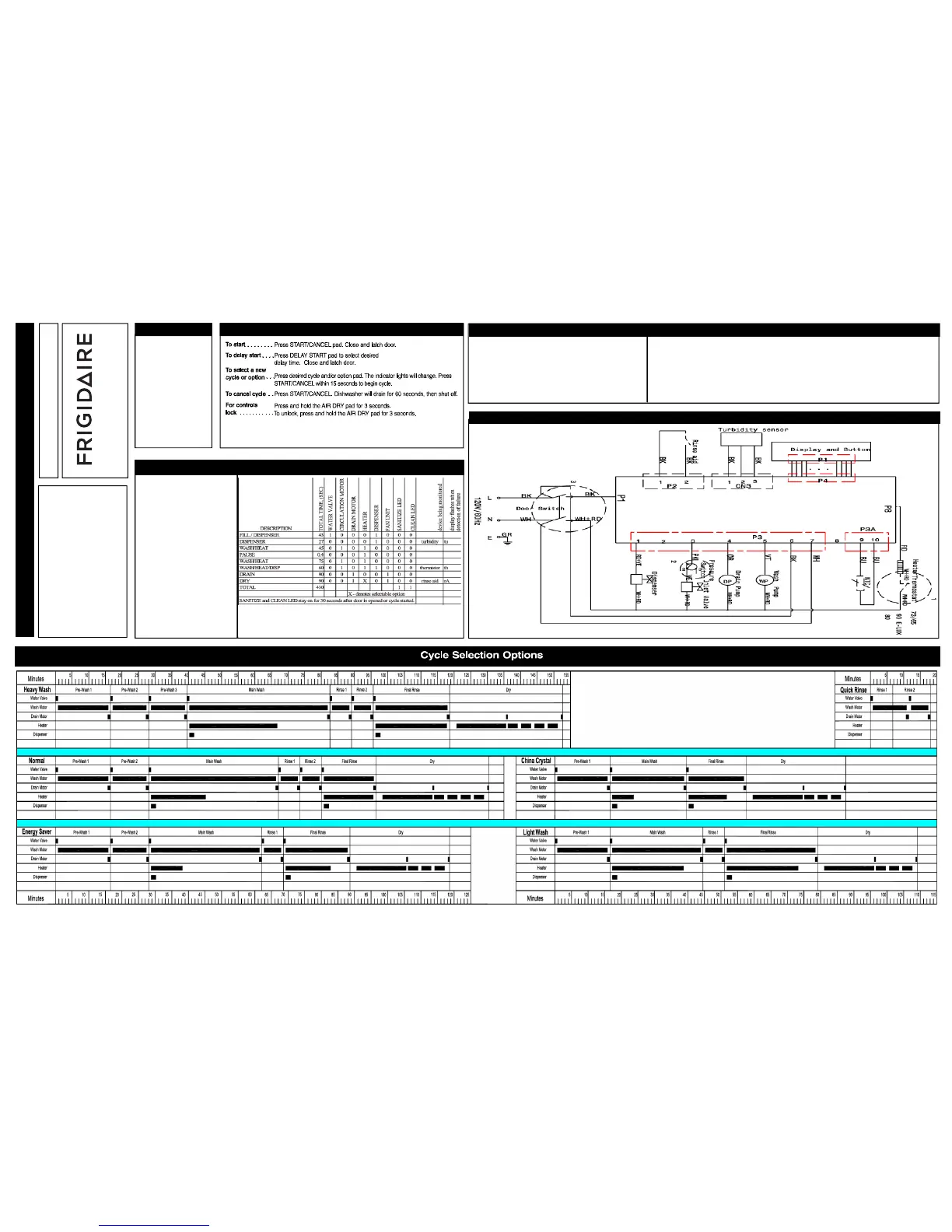

SERVICE DATA SHEET
P/N: FPHD2491
Electronic Series
Color Code
BK............................. Black
BU...............................Blue
PK...............................Pink
RD...............................Red
WH/RD.............White/Red
RD-YE.............Red/Yellow
VT..............................Violet
OR.........................Orange
GR...........................Green
W..............................White
Wiring Diagram
Display Codes (LED)Display Codes (Readout)
CLEAN
OPTION LED's Flas hing
------------------------ Shows completion of cycle.
Indicator light will go off 30 seconds after door is opened.
-- HI-TEMP WASH and AIR DRY/ LED's flashing indicates power failure has occurred. Press
START/CANCEL pad and reselect desired options and cycle.
LOW RINSE
SANITIZE
------------------ The liquid rinse agent is low. Light will switch off after 5 complete wash cycles or dispenser is filled.
---------------------- The SANITIZED criteria has been met. Indicator light will go off 30 seconds after door is open ed.
This information is intended for use by
persons having electrical and mechanical
training and a level of knowledge of these
subjects generally considered acceptable in
the appliance repair trade. Electrolux Home
Products North America cannot be
responsible, nor assume any liability, for
injury or damage of any kind arising from
the use of this Service Data Sheet.
Operation
LO.
PF
Cd
'01-24'
.........Low liquid in the rinse aid dispenser
..........A power failure has occurred
..........Close the door
....Hour(s) delay before start
The water/service test is a
Special function initiated
from the power failure
mode or idle mode.
While in power failure
or idle mode
-
simultaneously press the
AIR DRY and START/CANCEL
pads for 1 1/2 seconds.
The dishwasher will then
step through the test
cycle per the chart.
Pushing the START/CANCEL
pad will advance the
dishwasher to the next step.
Water/Service Test
(Some models)
