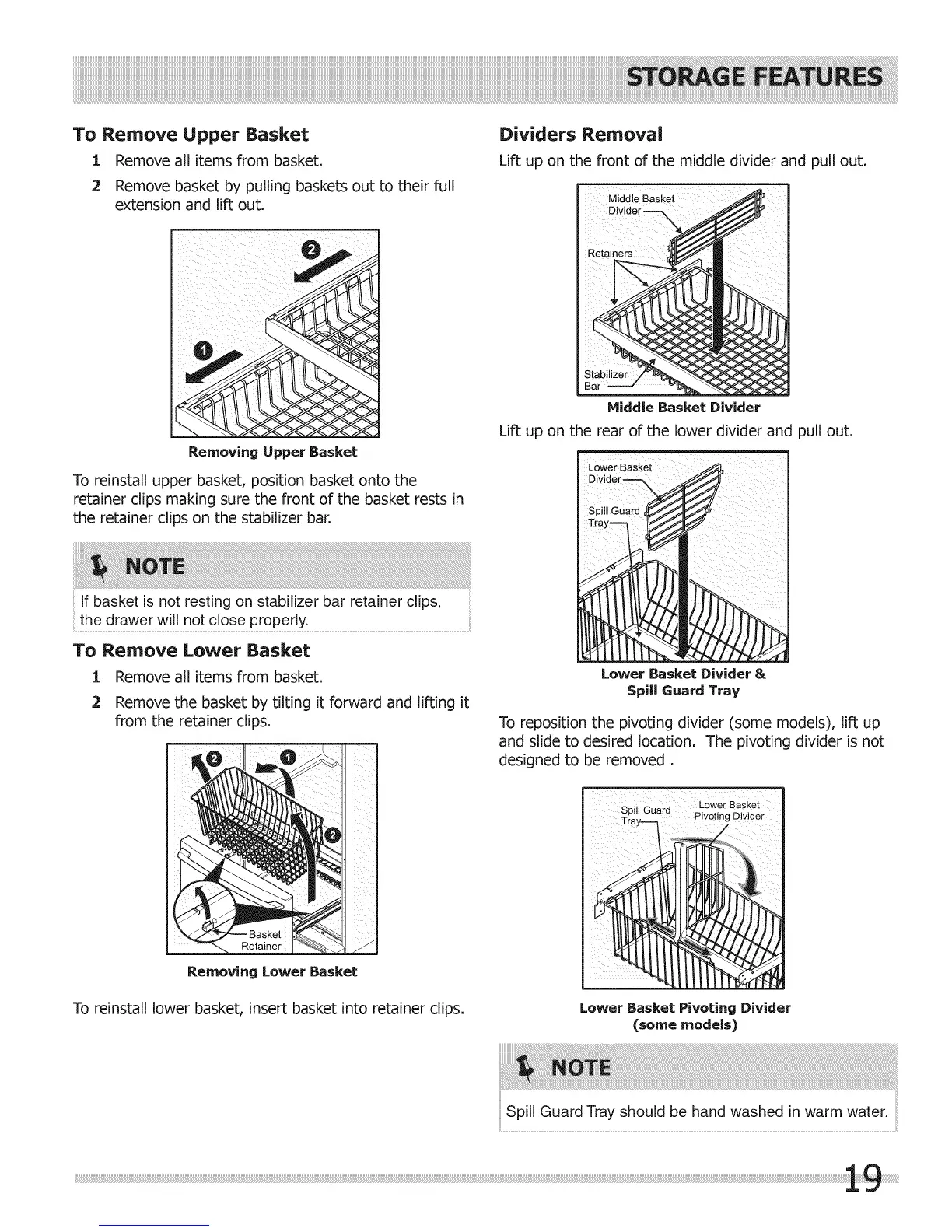

To Remove Upper Basket
1 Remove all items from basket.
2 Remove basket by pulling baskets out to their full
extension and lift out.
Removing Upper Basket
Dividers Removal
Lift up on the front of the middle divider and pull out.
Middle Basket
Divider-_
Retainers
Hiddle Basket Divider
Lift up on the rear of the lower divider and pull out.
To reinstall upper basket, position basket onto the
retainer clips making sure the front of the basket rests in
the retainer clips on the stabilizer bar.
If basket is not resting on stabilizer bar retainer clips,
the drawer will not close properly.
To Remove Lower Basket
1 Remove all items from basket.
2 Remove the basket by tilting it forward and lifting it
from the retainer clips.
i I
Retainer :
Removing Lower Basket
To reinstall lower basket, insert basket into retainer clips.
Lower Basket Divider &
Spill Guard Tray
To reposition the pivoting divider (some models), lift up
and slide to desired location. The pivoting divider is not
designed to be removed.
.... rrt LOwer BaSket
! " Pivoting Divider
Lower Basket Pivoting Divider
(some models)
Spill Guard Tray should be hand washed in warm water.
iii
