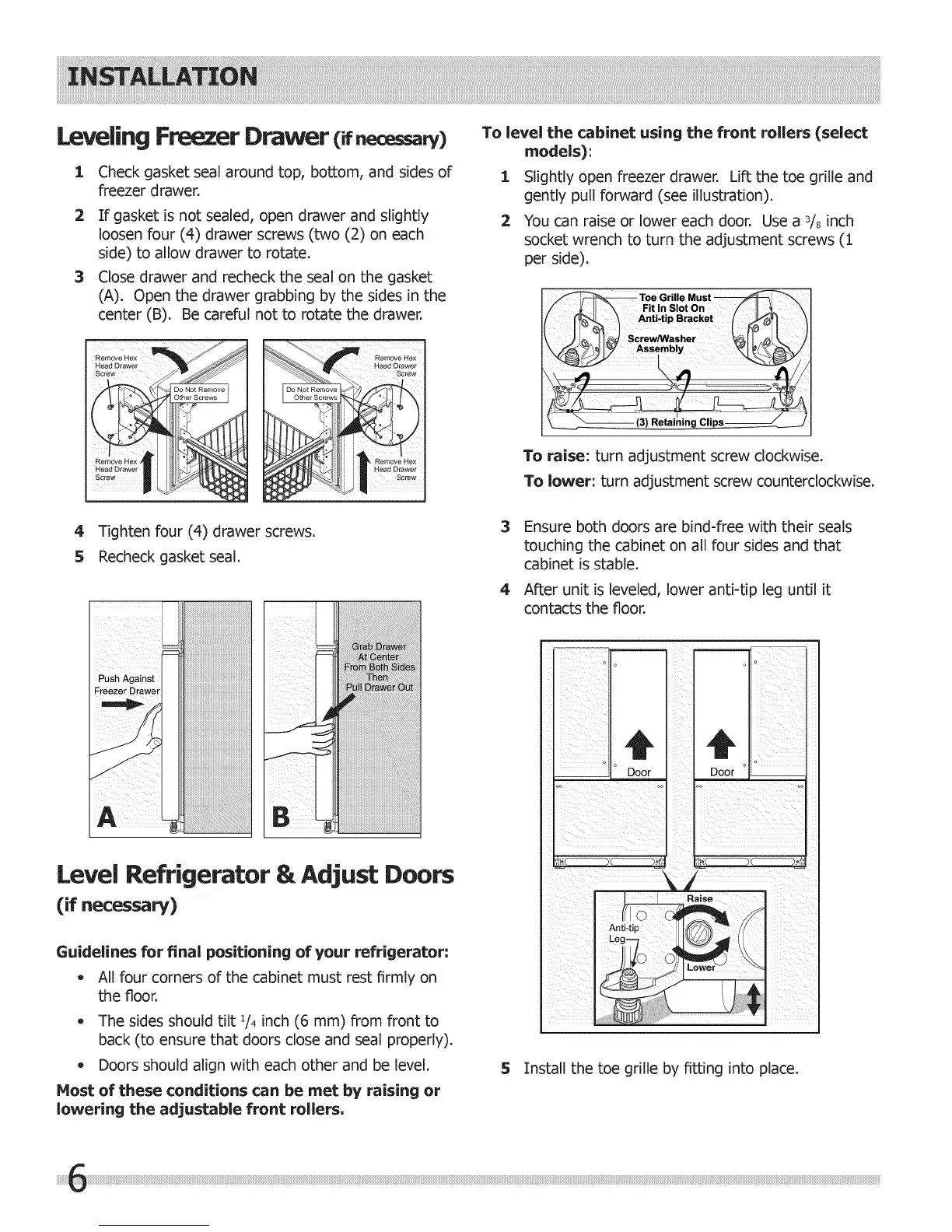

Leveling Freezer Drawer (if neo saw)
1
2
Check gasket sea! around top, bottom, and sides of
freezer drawer.
If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each
side) to allow drawer to rotate.
Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
Remove Hex
Head Drawer
Screw
Other Screw_
Remove Hex
Head Drawer
m m
Remove Hex
Head Drawer
Screw
_ Not Remove
_Other Screws
Remove Hex
Head Drawer
4 Tighten four (4) drawer screws.
5 Recheck gasket sea!.
To level the cabinet using the front rollers (select
models):
1 Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
2 You can raise or lower each door. Use a 3/8inch
socket wrench to turn the adjustment screws (1
per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
3
4
Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet is stable.
After unit is leveled, lower anti-tip leg until it
contacts the floor.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for final positioning of your refrigerator:
= All four corners of the cabinet must rest firmly on
the floor.
The sides should tilt V4 inch (6 mm) from front to
back (to ensure that doors close and seal properly).
Doors should align with each other and be level.
Host of these conditions can be met by raising or
lowering the adjustable front rollers,
o
o
o
Door
o °_ iiiii
o o
Door
5 Install the toe grille by fitting into place.
