BUILT-IN CONVECTION MICROWAVE INSTALLATION INSTRUCTIONS
All dimensions are in inches (cm).

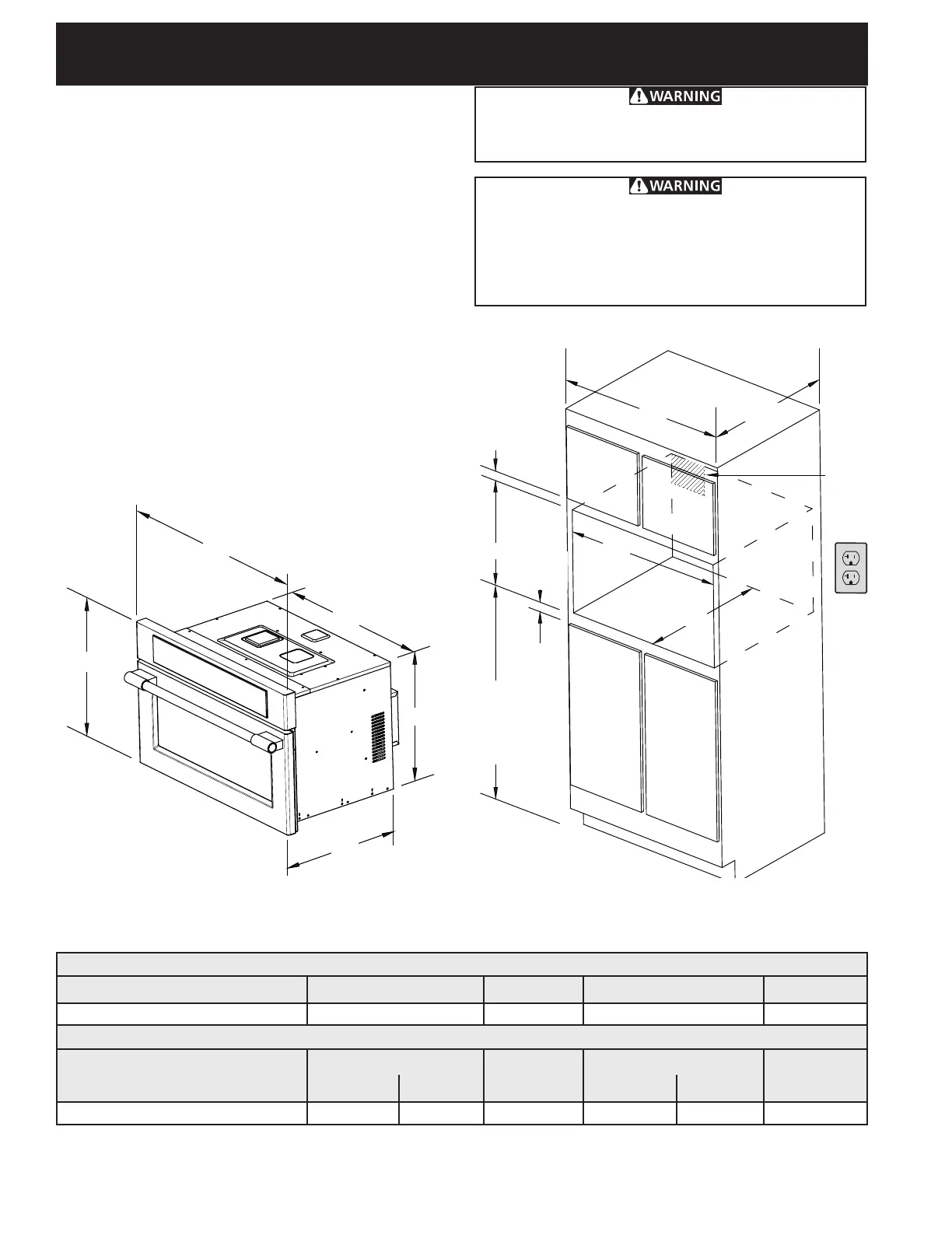

PRODUCT DIMENSIONS
MODEL A B C D
Convection Microwave Oven 29-13/16 19 24-5/8 23
CUTOUT DIMENSIONS AND CABINET WIDTH
MODEL F G
H
I
Min. Max. Min Min. Max. Min.
Convection Microwave Oven 28 28-3/8 22 17-3/4 18 30-1/8
NOTES:
1. The base must be capable of supporting 155 pounds
(70 kg).
2. Allow at least 21" (53.3 cm) clearance in front of the
oven for door depth when it is open.
3. Dimension G (cutout depth) is critical to the proper
installation of the built-in oven. If the oven decorative
trim does not lie ush against the cabinet, or if noise
is heard on convection models, verify dimension G
to assure that it is the required depth.
Figure 2: Microwave Only
A
B
C
17-5/8"
D
H
36" min
required
distance
to oor
2"
min
I
G
F
24" min
2"
min
Outlet
Area
20 Amp
Circuit
Do not lift or manipulate the oven door handle
or the control panel.
Heavy Weight Hazard
• Use two or more people to move and install the
microwave oven.
• Failure to follow this instruction can result in injury
or damage to the unit.
3. Cabinet Installation
1. Unpack the microwave oven.
2. Find the two mounting screws included in the litera-
ture package.
3. Insert the oven into the cabinet opening.
4. Push the oven in and against the cabinet.
