BUILT-IN CONVECTION MICROWAVE INSTALLATION INSTRUCTIONS
NOTES:
1. The base must be capable of supporting 155 pounds
(70 kg).
2. Allow at least 21" (53.3 cm) clearance in front of the
oven for door depth when it is open.
3. Dimension G (cutout depth) is critical to the proper
installation of the built-in oven. If the oven decorative
trim does not lie ush against the cabinet, or if noise
is heard on convection models, verify dimension G
to assure that it is the required depth.
B
A
D
17-5/8"
36" min
required
distance
to oor
24" min*
2"
min
F
G
I
H
C
2"
min*
Outlet
Area
20 Amp
Circuit
* See wall oven
installation instructions
for cutout dimensions

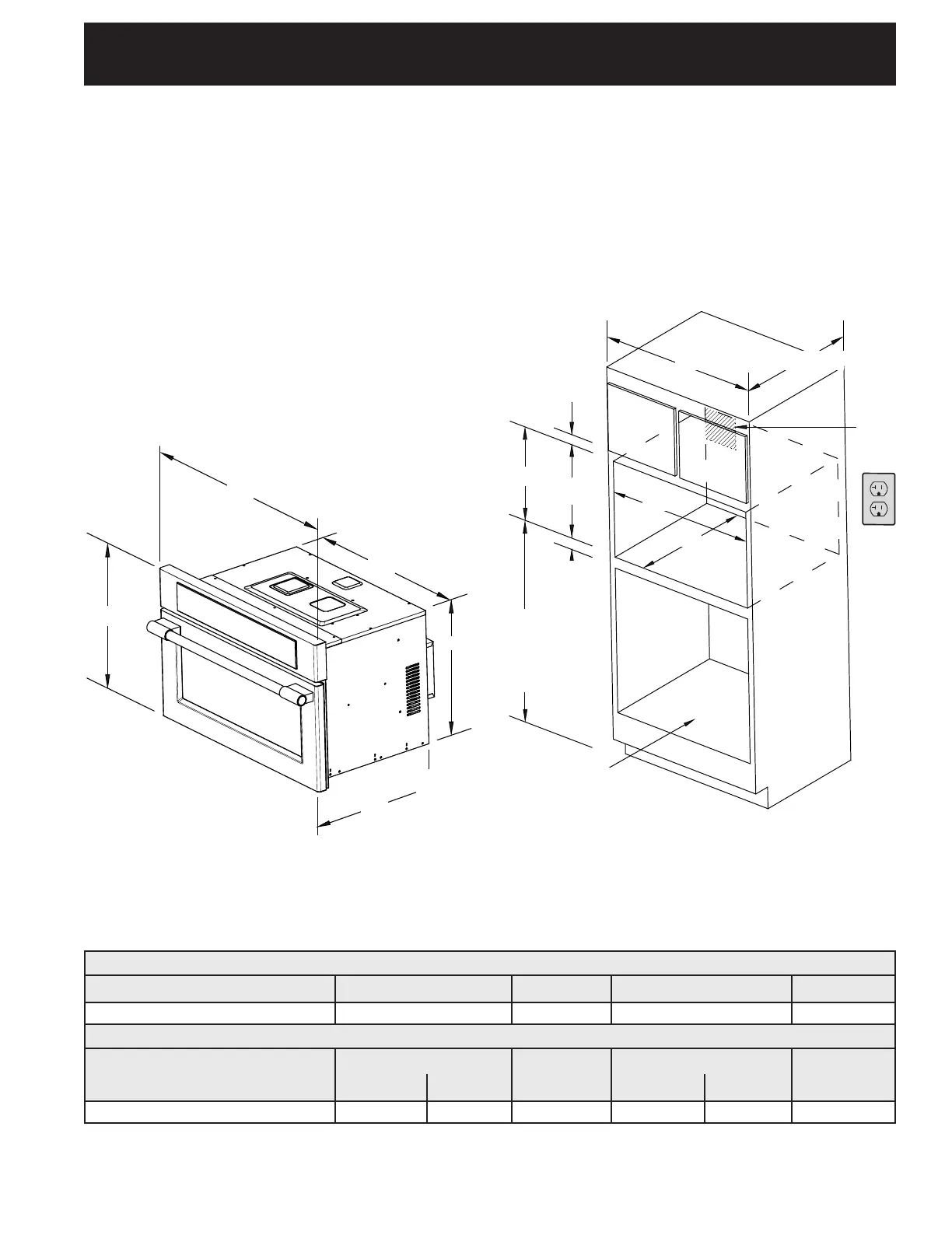

PRODUCT DIMENSIONS
MODEL A B C D
Convection Microwave Oven 29-13/16 19 24-5/8 23
CUTOUT DIMENSIONS AND CABINET WIDTH
MODEL F G
H
I
Min. Max. Min Min. Max. Min.
Convection Microwave Oven 28 28-3/8 22 17-3/4 18 30-1/8
Figure 3: Microwave with Wall Oven
All dimensions are in inches (cm).
