LOCATION OF YOUR WASHER
DO NOT INSTALL YOUR WASHER:
1. In an area exposed to dripping water or outside
weather conditions. The ambient temperature
should never be below 60 ° F (15.6 ° C) for proper
washer (detergent breakdown) operation.
2. In an area where it will come in contact with
curtains or drapes.
3. In an area (garage or garage-type building) where
gasoline of other flammables are kept or stored
(including automobiles).
4. On carpet. Floor MUST be solid with a maximum
slope of 1/2 in. per foot (1.27 cm per 30.5 cm). To
ensure vibration or movement does not occur,
reinforcement of the floor may be necessary.
IMPORTANT
MINIMUM INSTALLATION CLEARANCES
When installed in alcove or closet:
Sides, Rear = 0 in. (0 cm)
Top = 0 in. (0 cm)
When installed in closet: Front = 1 in. (2.54 cm)
Closet door ventilation required: 2 louvered openings
each 60 in
2
(387 cm
2
), 3 in. (7.6 cm) from top and bottom
of door.
UNPACKING
1. Cut the shipping carton along the dotted line along
the base of the unit.
2. While in the carton carefully lay the washer on its
back side.
3. Remove the styrofoam base.
4. Carefully return the washer to an upright position
and remove the carton.
5. Carefully move the
washer to within
4 feet (122cm) of
the final location.

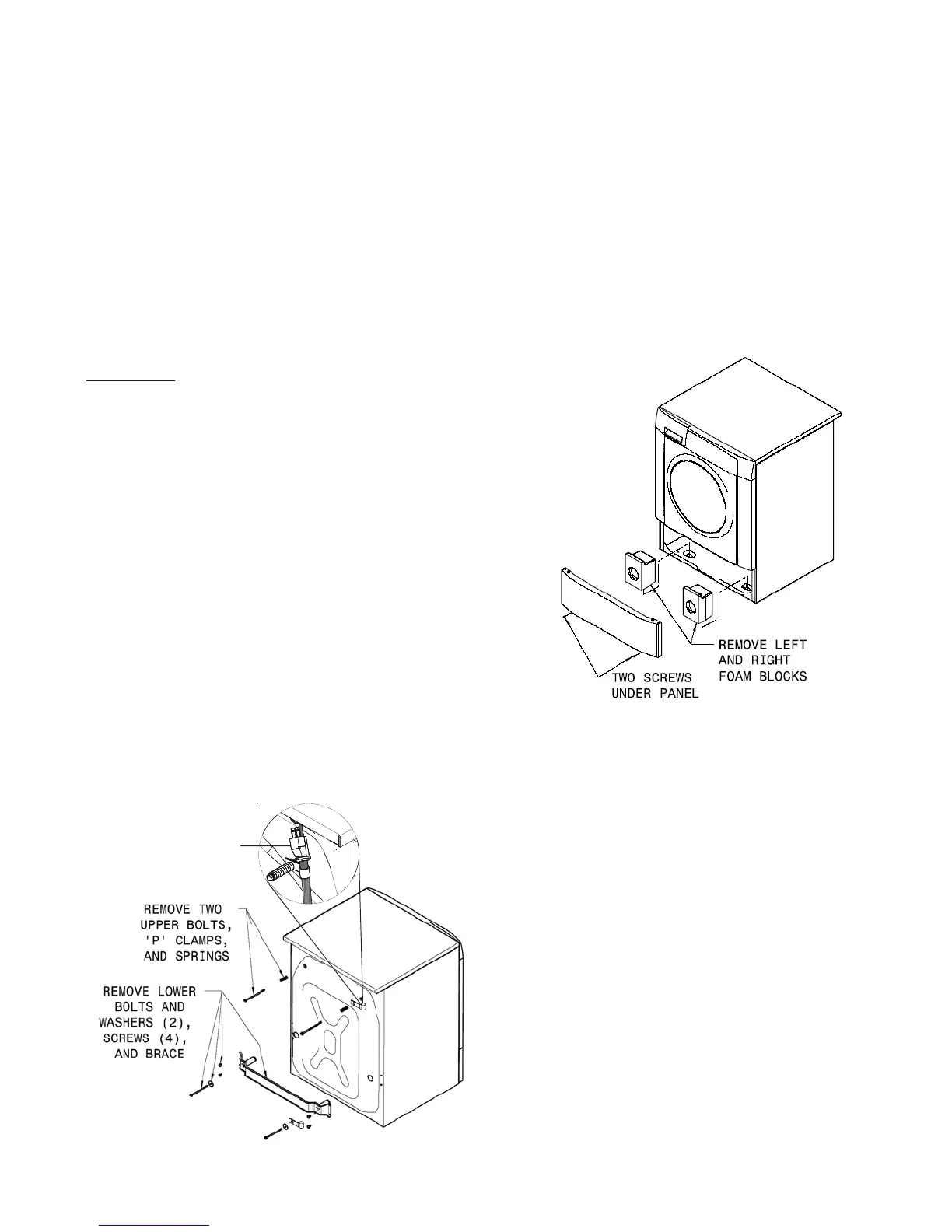

6. Remove the following from the back panel of the
washer: 4 packaging bolts,
2 packaging springs,
2 washers,
2 metal "P" clamps,
4 screws,
1 packaging brace.
7. Remove the 4 transport plugs from the literature
pack and install them in the corresponding holes
in the back panel of the washer.
8. Remove the 4 small hole plugs from the literature
pack and install them in the side panel holes
vacated by the packaging brace.
9. Using the shipping posts, prop up the front of the
washer approximatley 2 inches to gain access to
the service panel screws.
10. Remove the 2 screws and remove the service panel.
11. Remove the the two (2) styrofoam blocks located
under the drum (a yellow ribbon surrounds the items
to be removed). Lift up on the drum, tilt the base of
the foam blocks inwards toward the rear of the
washer until free, then pull them out.
12. Remove and discard the yellow ribbon from the front
of the washer.
13. Replace the service panel and screws.
NOTE: If the washer is to be transported at a later
date, the shipping support hardware must
be reinstalled to prevent shipping damage.
Drain Hose Installation
The drain hose is field installed to allow hose orientation
to the left or right, up or down depending on location of
the house drain. The hose is shipped in the washer tub
with the spring clamp on the coupler elbow and drain
hose hanger installed on the end of the hose.
1. Remove the drain hose from the tub of the washer.
2. Push the hose onto the drain coupler at the upper
left of the washer back panel until the hose con-
tacts the STOP RIB.
