REPLACEMENT PARTS
If replacements parts are needed for your washer,
contact the source where you purchased your washer
or call 1-800-944-9044 for the Frigidaire Company
Authorized Parts Distributor nearest you.
Destroy the carton and plastic bags
after the washer is unpacked. Children might use them
for play. Cartons covered with rugs, bedspreads, or
plastic sheets can become airtight chambers causing
suffocation. Place all materials in a garbage container
or make materials inaccessible to children.
The instructions in this manual and all
other literature included with this washer are not meant
to cover every possible condition and situation that
may occur. Good safe practice and caution MUST be
applied when installing, operating and maintaining any
appliance.
Maximum benefits and enjoyment are achieved
when all the Safety and Operating instructions are
understood and practiced as a routine with your
laundering tasks.
Cable Tie
Cable
Tie
8. Plug the power cord into a grounded outlet.
NOTE: Check to ensure the power is off at a circuit
breaker/fuse box before plugging the power
cord into an outlet.
9. Turn on the power at a circuit breaker/fuse box.
10.Read the Operating Instructions and Owner’s Guide
provided with the washer. They contain valuable and
helpful information that will save you time and money.
11.Run the washer through a complete cycle. Check for
water leaks and proper operation.
12. If your washer does not operate, please review the
“Avoid Service Checklist” in your Owner’s Guide before
calling for service.
13. Place these instructions in a location near the washer
for future reference.
NOTE: A wiring diagram is located inside the washer on
the service panel.
INSTALLATION

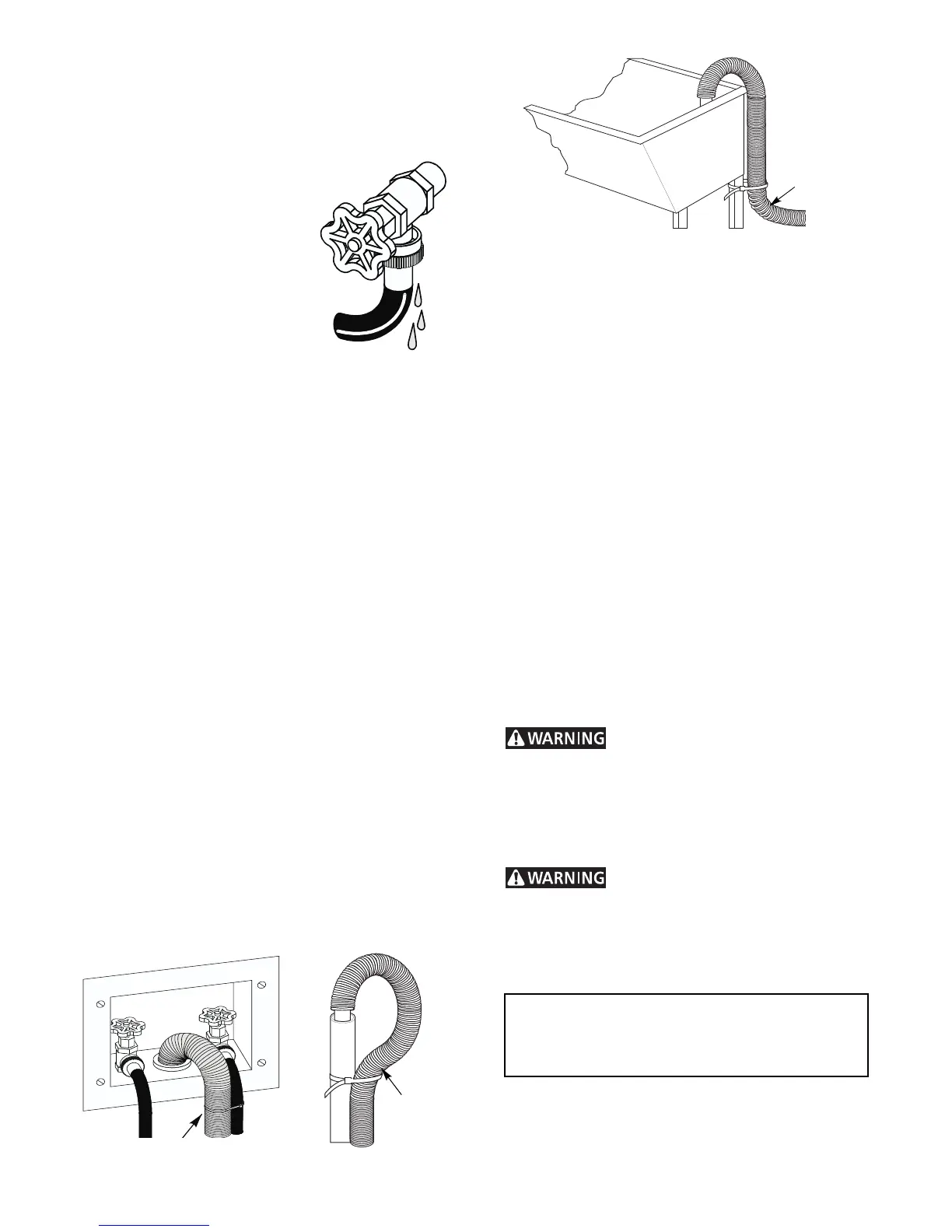

1. Run some water from the hot
and cold faucets to flush the
water lines and remove
particles that might clog up the
water valve screens.
2. Remove the inlet hoses and
rubber washers from the
plastic bag and install the
rubber washers in each end
of the inlet hoses.
3. (90° elbow end) Carefully
connect the inlet hose marked
"HOT" to the outside "H" outlet
of the water valve. Tighten by
hand, then tighten another
2/3 turn with pliers.
Carefully connect the other inlet hose to the inside
"C" outlet of the water valve. Tighten by hand, then
tighten another 2/3 turn with pliers.
Do not crossthread or over-tighten these
connections.
4. Connect the inlet hose ends to the HOT and COLD
water faucets tightly by hand, then tighten another
2/3 turn with pliers. Turn the water on and check for
leaks.
NOTE: Use only new hoses.
5. Carefully move the washer to its final location.
NOTE: Do not use the dispenser drawer or door to lift
washer.
6. With the washer in its final position, place a level on
top of the washer, no rocking of the washer should
exist. Adjust the front leveling legs up or down to ensure
the washer is resting solid. Rear leg adjustment is
accessible through the front service panel. Turn the
lock nuts on each leg up towards the base of the washer
and snug with a wrench.
NOTE: Keep the leg extension at a minimum to
prevent excessive vibration. The farther out
the legs are extended the more the washer
will vibrate.
7. Form a U shape on the end of the drain hose with
the hose pointed toward the drain. Place in a laundry
tubor standpipe and secure with the cable tie provided
in the enclosure package.
NOTE: If the drain hose is placed in a standpipe
without forming a U shape, a siphoning action
could occur. There must be an air gap around
the drain hose. A snug hose fit can also cause
a siphoning action.
To Next Page
