CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
14
NOTE
Tighten all set screws so the screw is below the surface of the handle. Draw the
handles tight to the doors/drawer with no gaps. Open the opposite door while
tightening the Allen screw to make installation easier.
The door handle may loosen over time if it was installed improperly. If this happens,
tighten the set screws on the handles.
Door Handle Mounting Instructions
Mounting Refrigerator Handles
DOOR HANDLE INSTALLATION
NOTE
When tightening the Allen set screws, you must apply force to the longer arm of the Al-
len wrench supplied in the handle packaging.

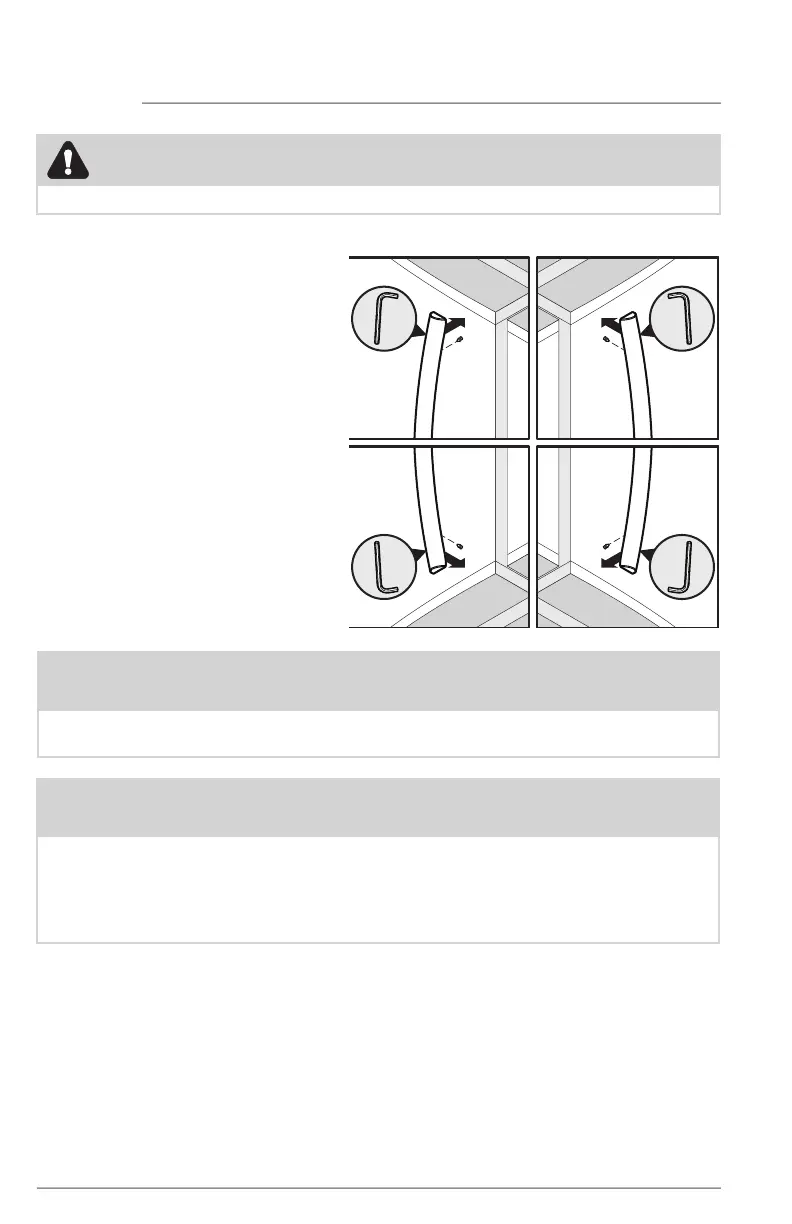

1. Remove handles from carton and
any other protective packaging.
2. Position fresh food handle end
caps over upper and lower pre-
installed shoulder bolts (A) that
are fastened into door, ensuring
the holes for the set screws are
facing towards the opposite door.
3. While holding handle firmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4. Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the first door.
