# = Fast-moving Parts 11 05/01
* = Non-Illustrated Parts
GLRS237ZA Publication No.
5995354098
A = GLRS237ZA (GLRS237ZAB0)
B = GLRS237ZA (GLRS237ZAB1)
C = GLRS237ZA (GLRS237ZAQ0)
D = GLRS237ZA (GLRS237ZAQ1)
E = GLRS237ZA (GLRS237ZAW0)
F = GLRS237ZA (GLRS237ZAW1)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B C D E F Fan Blade,red ,evaporator fan
8 5300157666 A B C D E F Bushing-motor mtg,(2)
9 5303292396 A B C D E F Bracket-motor mtg,front
13 # 240315801 A - C - E - Motor-evap fan
13 # 240315803 - B - D - F Motor-evap fan
13* 215474201 A B C D E F Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 A B C D E F Bracket-motor mtg,rear
15 5303001179 A - C - E - Light Bulb/Lamp,40 W
15 240436701 - B - D - F Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 218906801 A B C D E F Socket-light/lamp
17 240374901 A B C D E F Box-control,front
17* 240425701 A - C - E - Harness-wiring,control box
17* 240439901 - B - D - F Wiring Harness,controls
18 240360801 A B C D E F Knob-control
21 240375902 A B C D E F Control-temperature,refr section
21A 5304421067 A B C D E F Control-temperature,frzr section
22 218660702 A B C D E F Tube-insulator
23 # 215846602 A - C - E - Timer-defrost, 60 Hz, 120 V, 8 hour/30 min
23 240375803 - B - D - F Control-defrost, adaptive timer, PC board
23* 5303001259 A B C D E F Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
41 5308000039 A B C D E F Screw, hex wshr hd, 8-32CA x 0.500, (7),srrtd hd
45 5303001343 A B C D E F Screw,hex washer head ,8-15A x 0.500
53 240369501 A B C D E F Box-control
81 5308016566 A B C D E F Screw, hex wshr hd, 8-15A x 0.625, low profile
115 240347901 A - C - E - Damper Assy,w/seal
115 240440701 - B - D - F Damper Assy,w/seal
115* 5304421593 A B C D E F Switch-micro, single pole, dble throw, damper assy
137 240396401 A B C D E F Filter,water ,front ,cassette
137* 240396701 A B C D E F Bypass,water filter ,Optional Part
138 240397301 A B C D E F Button-filter release
139 240396001 A B C D E F Base-water filter
149 240331601 A B C D E F Shroud-fan orfice
150 240394203 A B C D E F Insulation-water tube cover
151 240373805 A B C D E F Cover-water tube
198 240397401 A B C D E F Retainer
199 240397501 A B C D E F Rod
199* 240398401 A B C D E F Spring-filter release rod
200 240397601 A B C D E F Light pipe
201 240398502 A B C D E F Label-control box
* 3205266 A B C D E F Edge Protector,wiring harness
* 240374701 A B C D E F Heater-freezer control

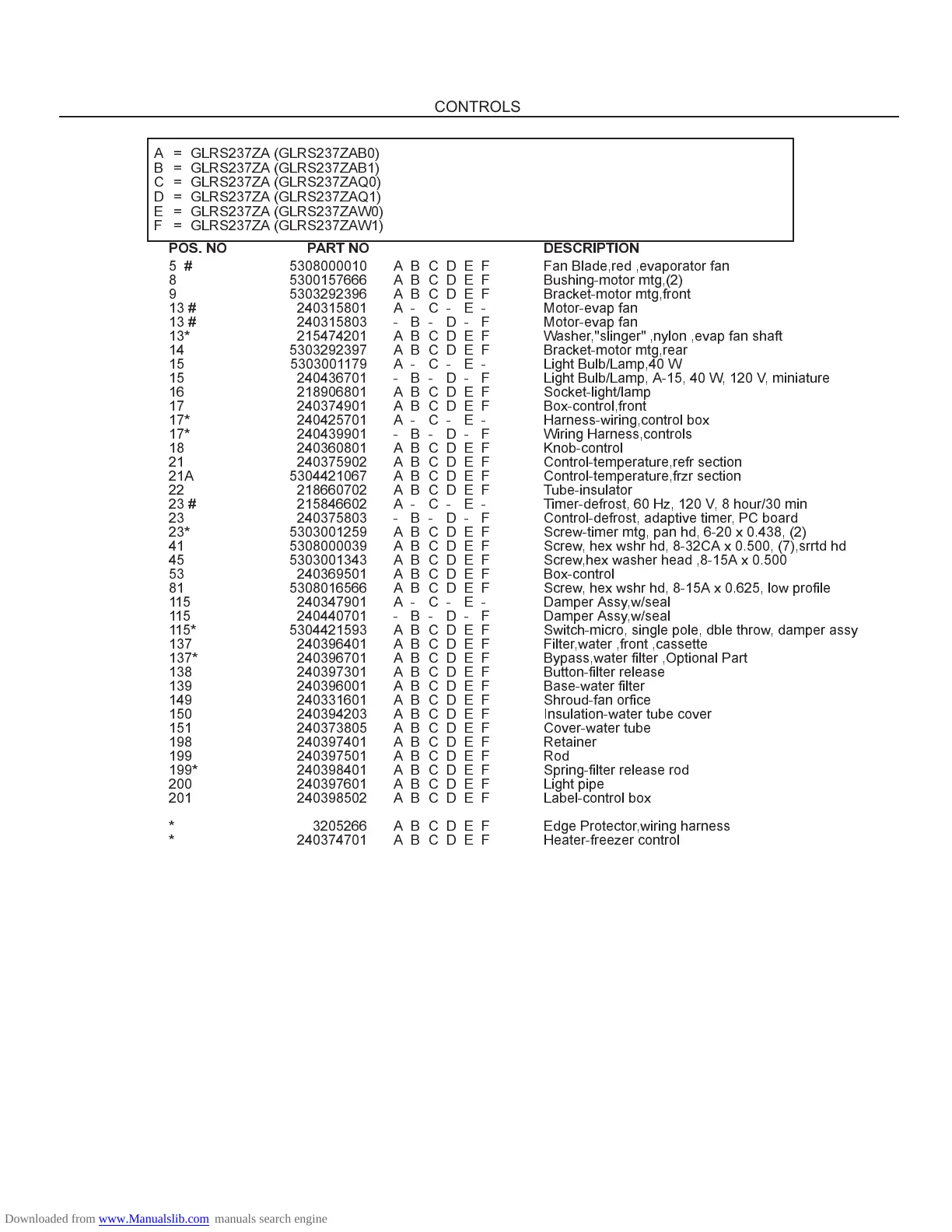

CONTROLS
