# = Fast-moving Parts 11 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
13 # 240315803 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 A B Bracket-motor mtg,rear
15 240436701 A B Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 218906801 A B Socket-light/lamp
17 240317701 A B Box-control,front
17* 240439901 A B Wiring Harness,controls
18 240360801 A B Knob-control
21 # 240375903 A - Control-temperature
21 # 240375906 - B Control-temperature
21A 5304421067 A - Control-temperature,frzr section
21A 5304421768 - B Control-temperature
22 218660702 A B Tube-insulator
22* 5303916855 A B Tube, sensor sleeve, plastic ,clear
23 240375803 A B Control-defrost, adaptive timer, PC board
23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438, (2)
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
45* 5303209814 A B Nut,"U" type ,8-15A ,fan mtr mtg
53 240369501 A B Box-control
81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile
115 240440701 A B Damper Assy,w/seal
115* 5304421593 A B Switch-micro,single pole,dble throw, damper assy
137 240396401 A B Filter,water ,front ,cassette
137* 240396701 A B Bypass,water filter ,Optional Part
138 240397301 A B Button-filter release
139 240396001 A B Base-water filter
149 240331602 A B Shroud-fan orfice
150 240394204 A B Insulation-water tube cover
151 240373806 A B Cover-water tube
198 240397401 A B Retainer
199 240397501 A B Rod
199* 240398401 A B Spring-filter release rod
200 240397601 A B Light pipe
201 240398502 A B Label-control box
* 3205266 A B Edge Protector,wiring harness
* 240427201 A B Heater-freezer control

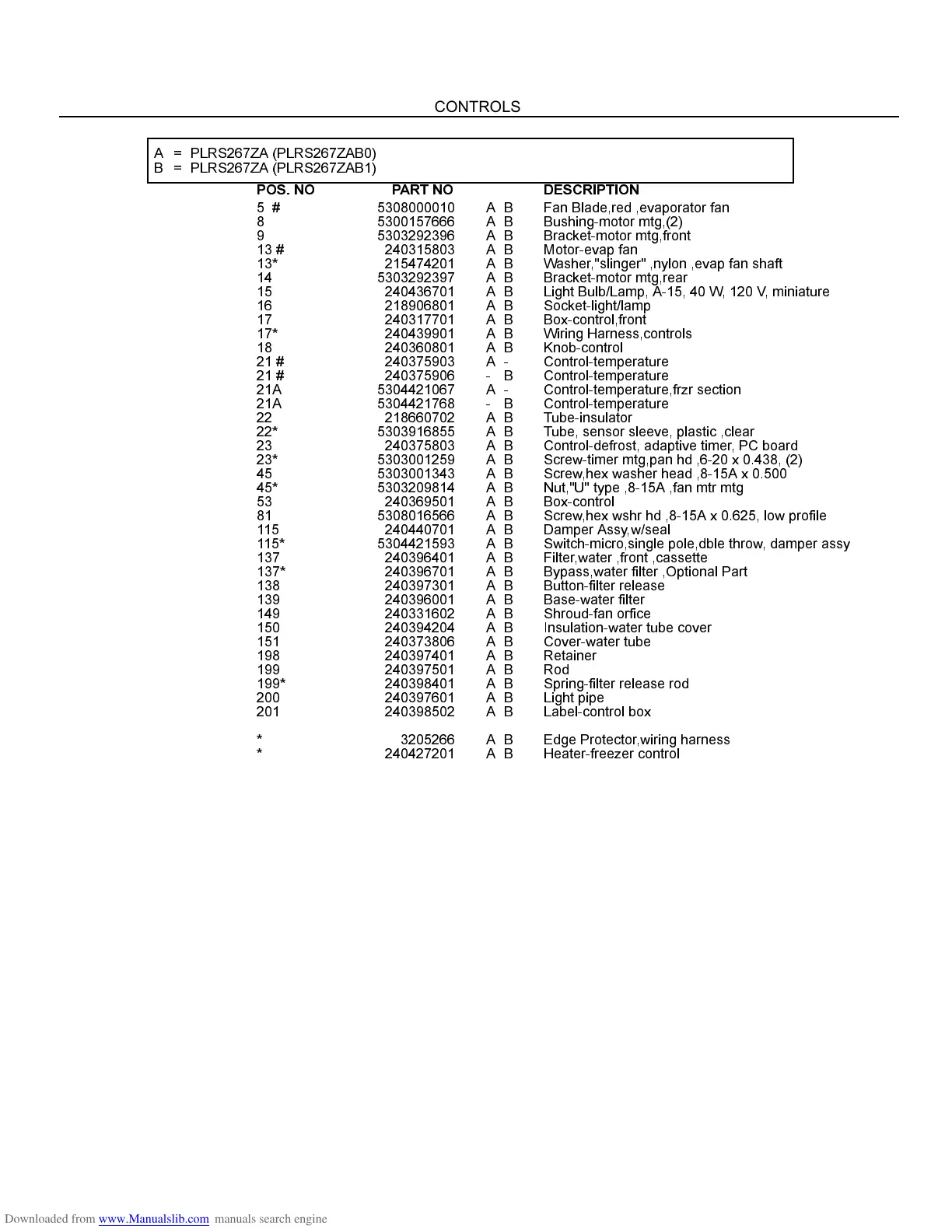

CONTROLS
