# = Fast-moving Parts 13 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil,styrofoam ,(2)
4 # 218944001 A B Drier-filter,R134a System
6 240346402 A B Harness-wiring,machine compt
6* 240439901 A B Wiring Harness,controls
14 # 5303918253 A B Defrost Heater Kit
15 # 5303918216 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
22 240330003 A B Base-compressor
23 218513300 A B Grommet-compr mtg,(4)
25 240491501 A B Screw-compr mtg, 1/4-28 x 1.16, shoulder,typ CF
26 240332602 A B Pan-defrost drain
29 # 5303918252 A - Compressor,w/electricals
29 # 5303918254 - B Compressor,w/electricals
30 # 218721114 A - Starter-PTC
30 # 218721119 - B Starter-PTC
32 218740800 A - Clamp,elec cont mtg ,compressor
32 218973501 - B Clamp,elec cont mtg ,compressor
34 240405201 A B Grommet-cond mtg,(4)
41 218897001 A B Screw,hex washer head ,8-32 x 1/4
44 215174700 A B Clamp-service cord,strain relief, galv steel
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
45 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile
55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B Clip-wiring harness
58 215004600 A B Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal,shroud
59* 240359401 A B Screw-fan shroud,(2)
59A 240346501 A B Bracket-support,cond mtr ,(3)
59B 240346601 A B Grommet-bracket,(3)
60 # 240334001 A B Motor-condenser fan
61 # 240315401 A B Fan Blade,galv steel ,condenser fan
61A 215004700 A B Nut,speed
61B 215004800 A B Grommet-silencer
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
72 218397000 A B Button-handle mtg,dovetail
82 5304418225 A B Roller,comp base ,rear ,(2)
83 215164200 A B Pin-roller,(2)
84 5304421068 A B Tube-drain,lower
85 240346201 A B Tube-connector,suction
86 240409302 A B Spacer-cond tube,black
* # 5303918218 A B Heat Exchanger Kit,suction line
* # 5303918222 A B Hot Tube Repair Kit,Service

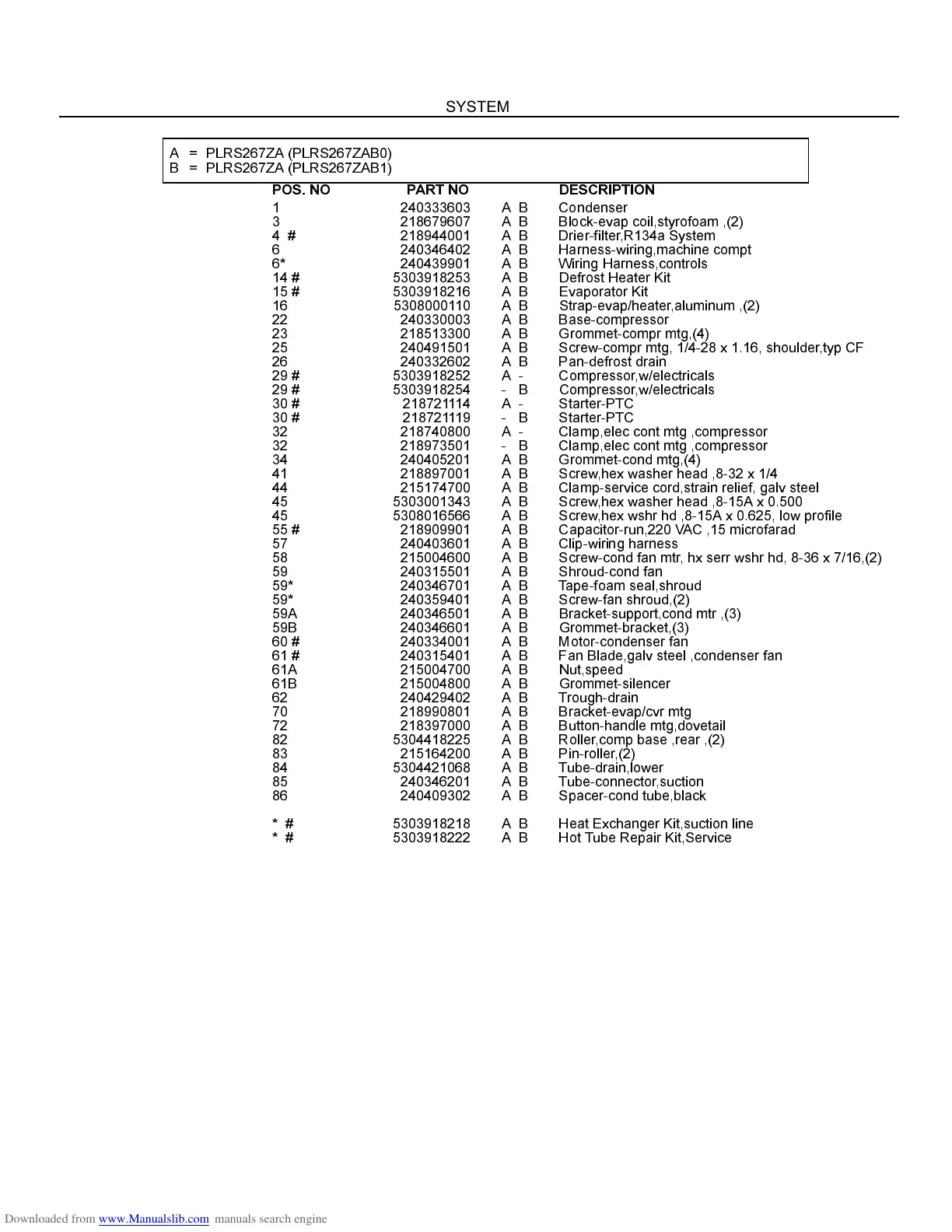

SYSTEM
