# = Fast-moving Parts 3 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486

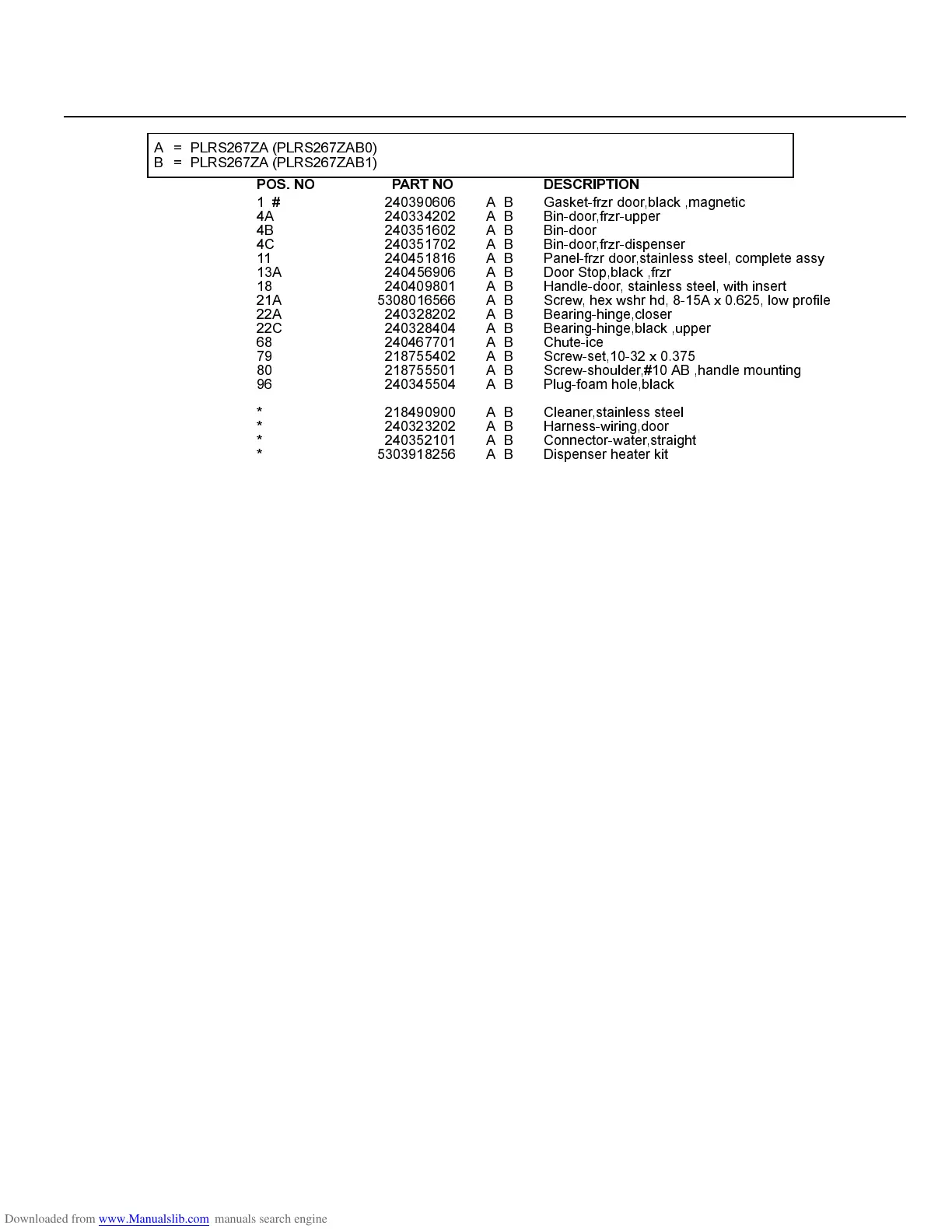

FREEZER DOOR
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
1 # 240390606 A B Gasket-frzr door,black ,magnetic
4A 240334202 A B Bin-door,frzr-upper
4B 240351602 A B Bin-door
4C 240351702 A B Bin-door,frzr-dispenser
11 240451816 A B Panel-frzr door,stainless steel, complete assy
13A 240456906 A B Door Stop,black ,frzr
18 240409801 A B Handle-door, stainless steel, with insert
21A 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
22A 240328202 A B Bearing-hinge,closer
22C 240328404 A B Bearing-hinge,black ,upper
68 240467701 A B Chute-ice
79 218755402 A B Screw-set,10-32 x 0.375
80 218755501 A B Screw-shoulder,#10 AB ,handle mounting
96 240345504 A B Plug-foam hole,black
* 218490900 A B Cleaner,stainless steel
* 240323202 A B Harness-wiring,door
* 240352101 A B Connector-water,straight
* 5303918256 A B Dispenser heater kit
