# = Fast-moving Parts 7 06/01
* = Non-Illustrated Parts
PLRS267ZA Publication No.
5995354486
A = PLRS267ZA (PLRS267ZAB0)
B = PLRS267ZA (PLRS267ZAB1)
POS. NO PART NO DESCRIPTION
10 240435902 A B Cover-air duct
10A 240475902 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
14 # 240413601 A B Switch-light/lamp
14A# 215486600 A B Switch-light/lamp
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2),special
30 240419101 A B Bracket-lower hinge, ref
30A 240419102 A B Bracket-lower hinge
37 240337603 A B Trim-cabinet corner,black
38 240327201 A B Bracket-upper hinge
40 240327003 A B Cover-upper hinge,black
41 240358701 A B Grommet-shelf mtg,1.40" long
41* 240358801 A B Grommet-shelf mtg,.875" long
42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B Roller Assy,front ,(2)
45 5303001343 A B Screw,hex washer head ,8-15A x 0.500
47 240349401 A B Channel-shelf mtg,side ,(2)
58 218749600 A B Screw,#10 pan hd ,8-18 x .5
66 240470201 A B Cover-damper
66A 240470301 A B Damper-meat keeper
66B 240355901 A B Insulation-damper
72 240324406 A B Grille/Kickplate, black
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
82 5304418225 A B Roller,comp base ,rear ,(2)
83 215164200 A B Pin-roller,(2)
89 240326104 A B Cover-access,w/ label
89* 241500301 A B Screw,#8 18 x .500 ,(3)
90 218249805 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B Support-crspr cover,(4)
100* 240350802 A B Support-crspr cover,(4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural
* 5303305345 A B Paint,touch-up ,black

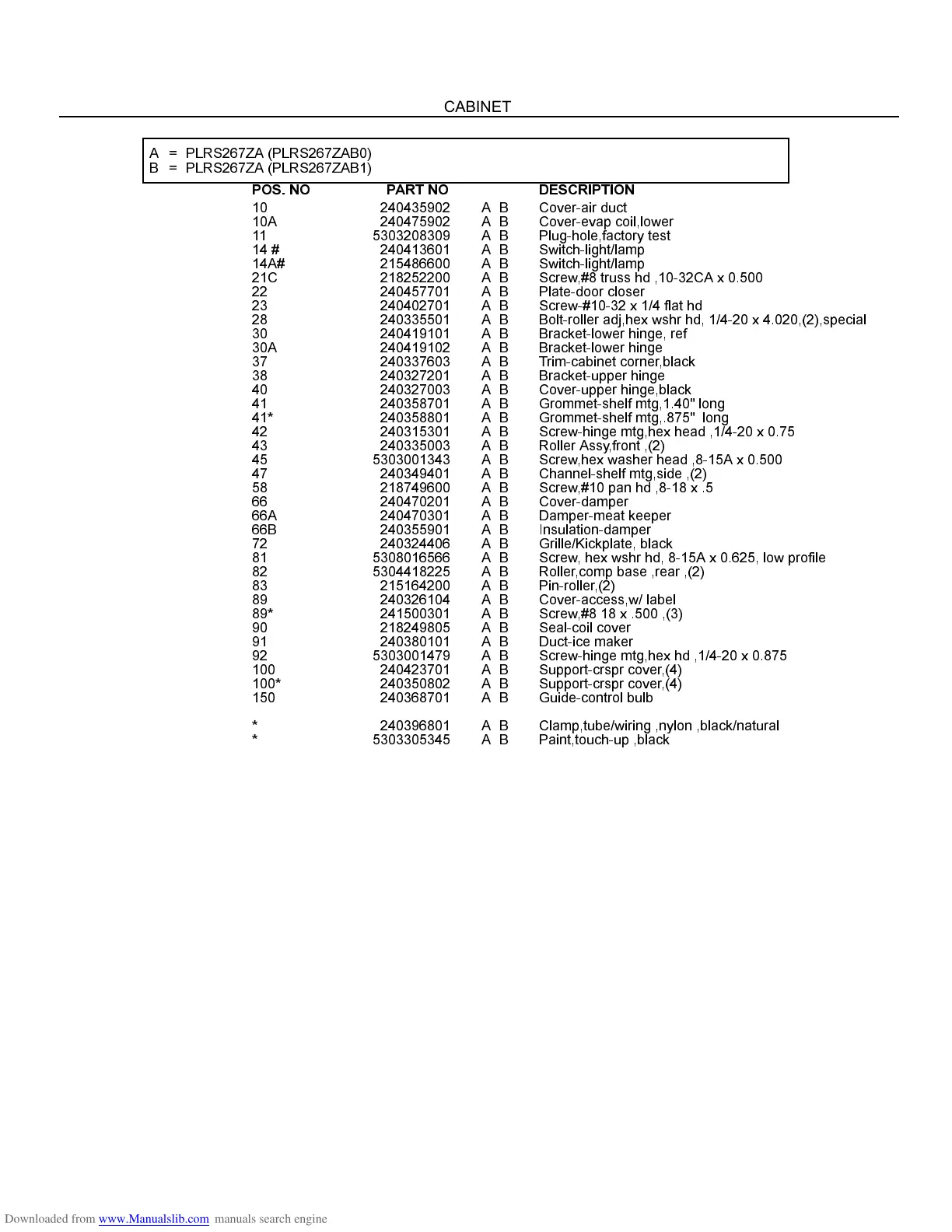

CABINET
