15
DOOR REMOVAL
CAUTION
Drawer is heavy. Use caution when lifting.

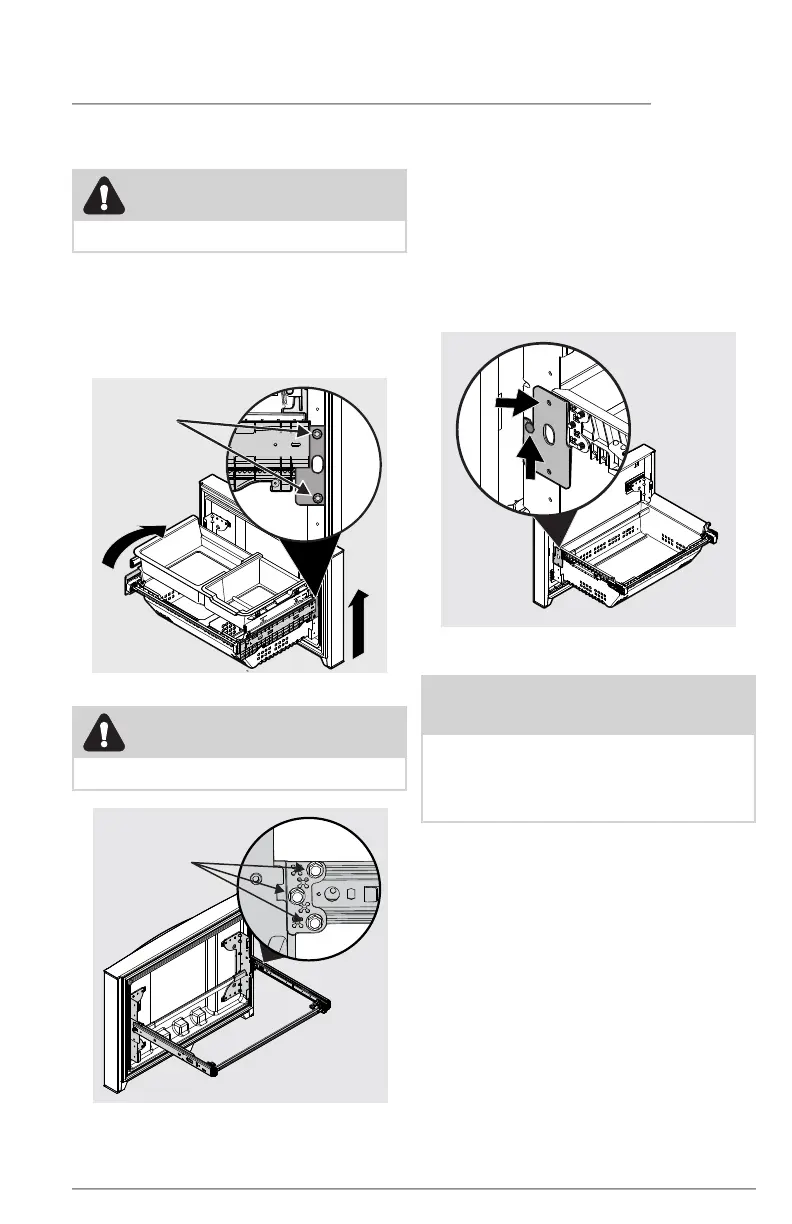

Removing Freezer Drawer
1. Remove 4 hex head drawer screws
(2 per side) that secure the drawer
to the slide assemblies.
2. Lift up drawer to remove.
Remove
Hex Head
Drawer
Screw
CAUTION
Do Not loosen or remove the 3 hex screws.
NOTE
To locate the pin, look inside the drawer
and the pin is next to the door liner and
the slides. Not all parts are shown in the
illustration.
Replacing Freezer Drawer
1. Extend the Freezer slides from the
unit.
2. Carefully align support pin with
hooks on end of freezer slides and
then lower freezer door onto slides.
3. Replace the 4 hex head screws that
secure the slides to the door (2 on
each side) and tighten.
To Next Page
