FRIGOGLASS Plus-500 - STEP-8 INSTALL TOP HINGE TO THE DOOR; Model with canopy; Model without canopy

STEP-8
INSTALL TOP HINGE TO THE DOOR
Model with canopy

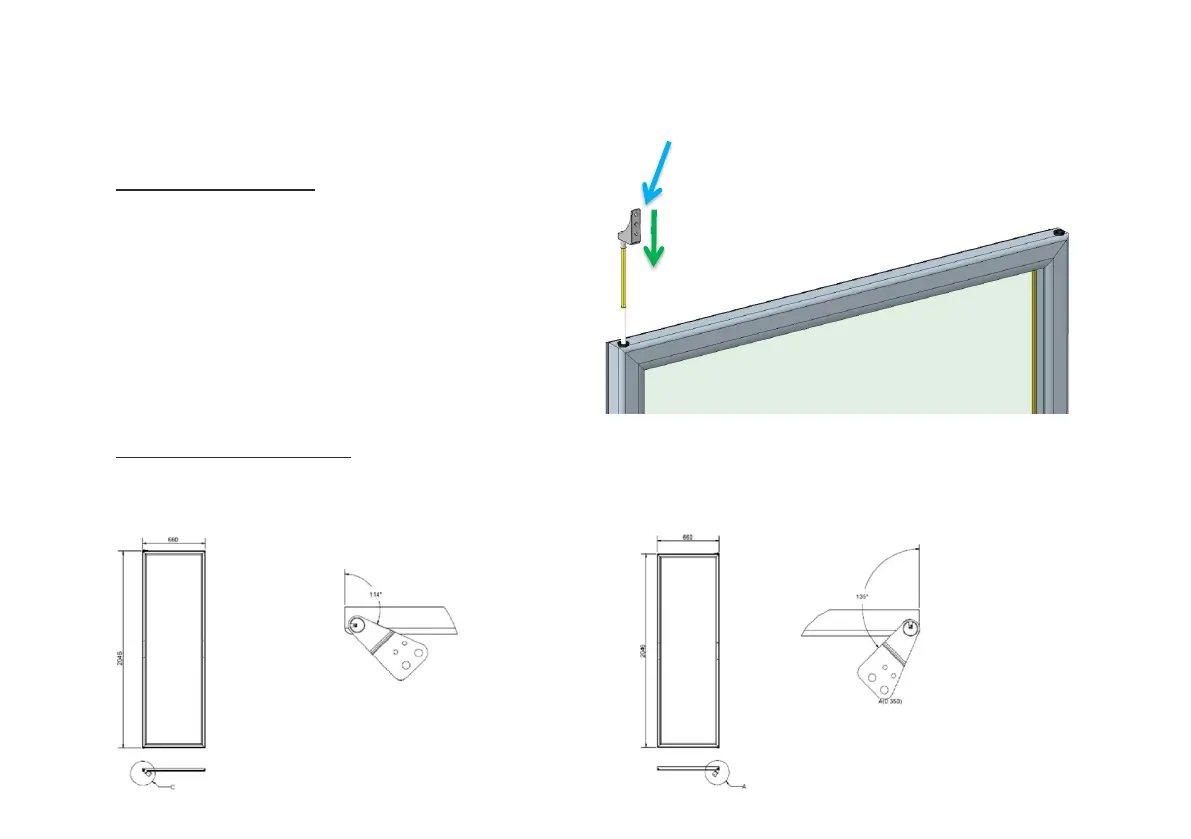

Install the top hinge as shown in a picture
together with the door spring and plasc
sleeve (while installing them, will be
resistance due to the spring support
inside the frame).
Flat surface of hinge to be oriented to
the opposite side of the door.
Model without canopy
Hinge rotaon for proper preload is shown on the sketches below:
Hinge rotaon for reversible door
from right to le side hinge door.
Hinge rotaon for reversible door
from le to right side hinge door.
FRONT SIDE VIEW
FRONT SIDE VIEW
HINGE ROTATION FOR
PROPER PRELOAD
HINGE ROTATION FOR
PROPER PRELOAD
