FRIGOGLASS Super-8 FFD - Step 9: Install Door on Cabin

STEP-9
INSTALL DOOR ON CABIN

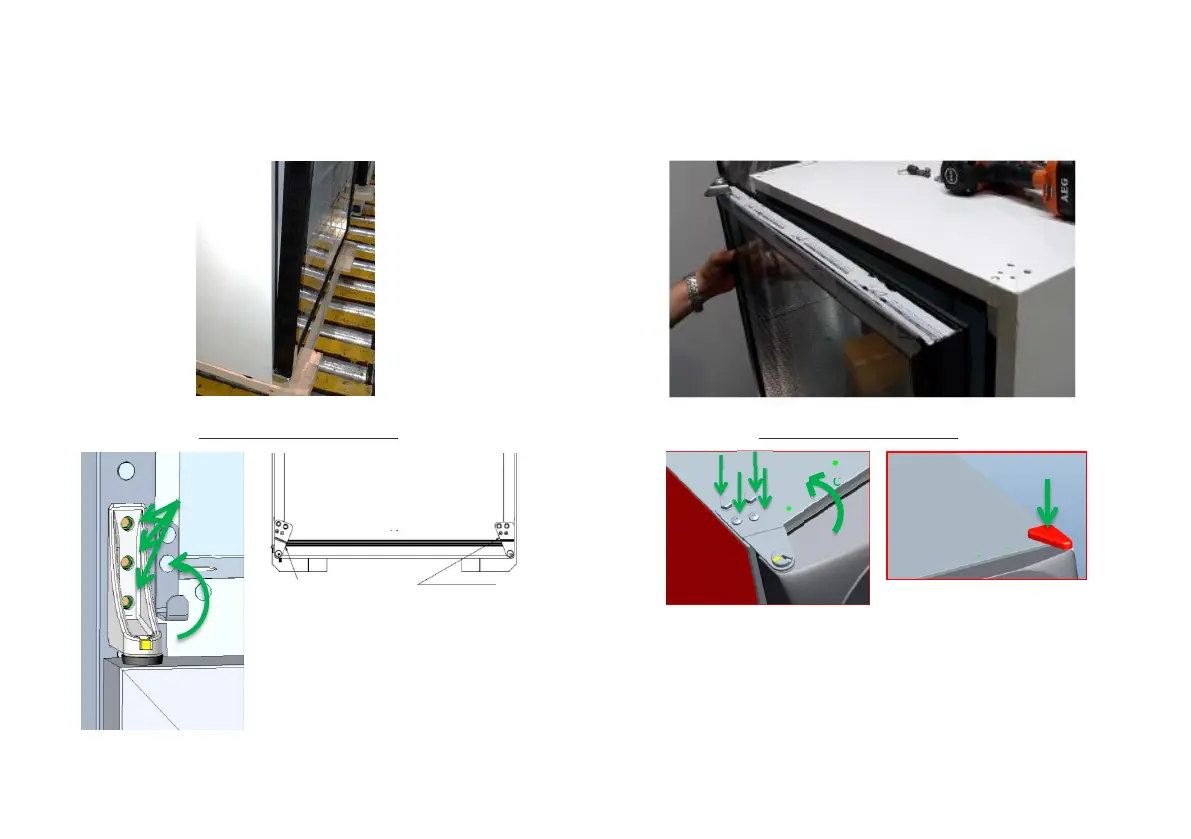

a. Install door on the boom hinge.
b. Align the door with the cooler sides.
Model with canopy
Model with canopy
c
d
Hinge Final Posion
le opening direcon:
turn the hinge 114° counterclockwise
and fix it on the cab roof
opening direcon:
turn the hinge 114° counterclockwise
and fix it on the cab roof
c. Use pliers to rotate hinge by 90°
counterclockwise to load the spring.
d. While holding the hinge in aligned
posion with cabin holes ghten
3 screws holding hinge in place.
c
d
e
c. Rotate hinge clock wise (Right hinge door)
OR counter-clockwise(Le hinge door).
d. Using electric screw drivers fix screws
used for top hinge fixing (Removed
at Step 3).
e. Install top hinge cover (opon).
