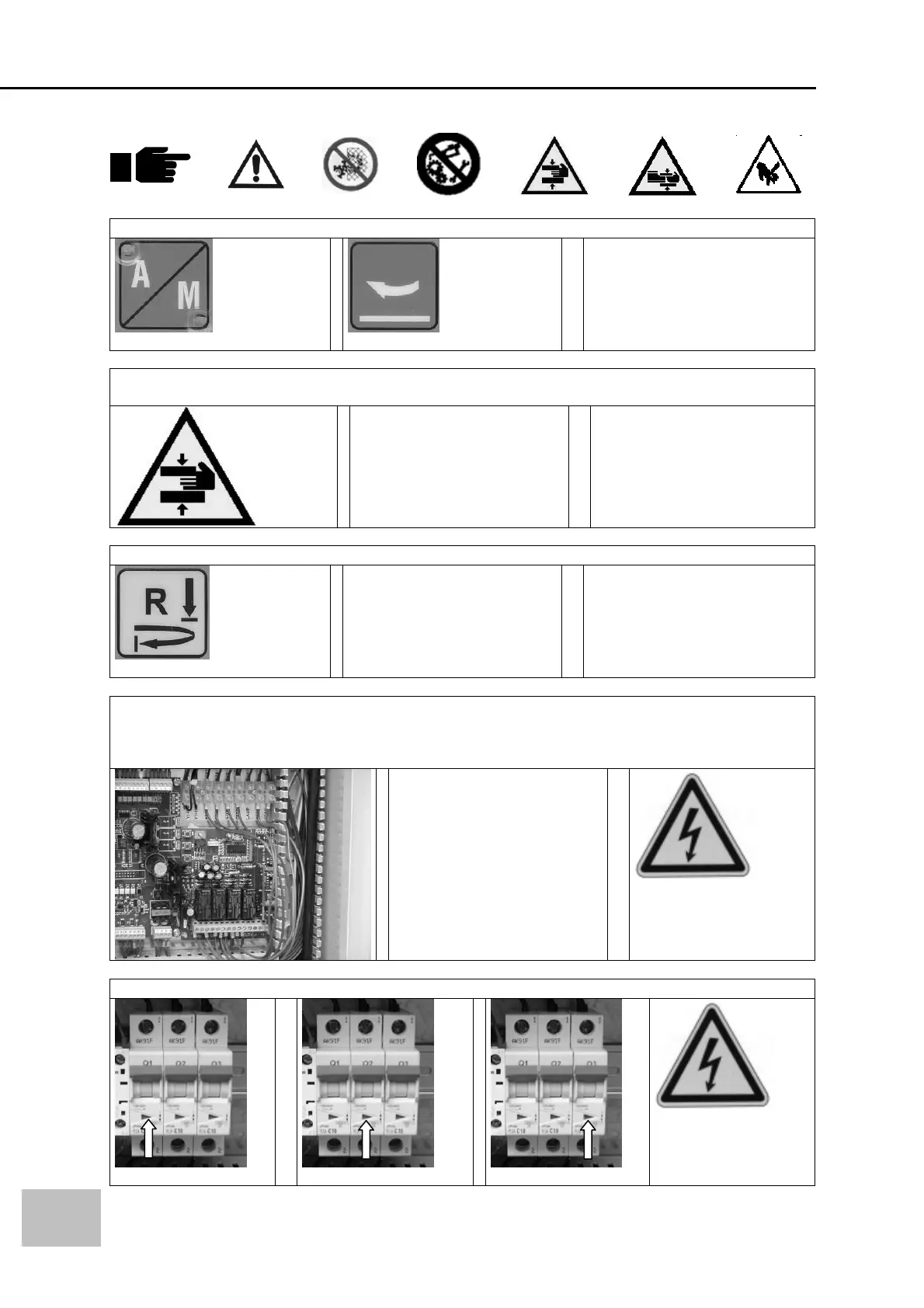

ASSEMBLY SEQUENCE
12. Check the functionality of the MOVEMENT of the TURNTABLE (Fig. 1 & 2)
Fig. 1 / Manual movement
Fig. 2 / Movement JOG
13. Check the functionality of the PROXIMITY SENSOR (1) for turntable zero position
14. Check the functionality of the RESET of the MACHINE (Fig. 1)
Fig. 1 / Reset function
15. Check the functionality of the REMOTE Control (Code FS4.0147)
- The remote control can be used to activate the machine from a distance. The machine will
always be activated in the pre-selected program. Program change has still to be executed on the
operating panel of the machine.
16. Check the functionality of the TERMINAL / OVERCURRENT / CIRCUIT / BRAKERS (Fig. 1 & 2)
Fig. 1 Q1 = Carriage
Fig. 2 Q2 = Pre-Stretch
Fig. 3 Q3 = Turntable
