Please remove all contents from the package, inspect and review checklist.
Some parts may be included in the Styrofoam packaging.
Do not discard any packaging or box until assembly is complete.

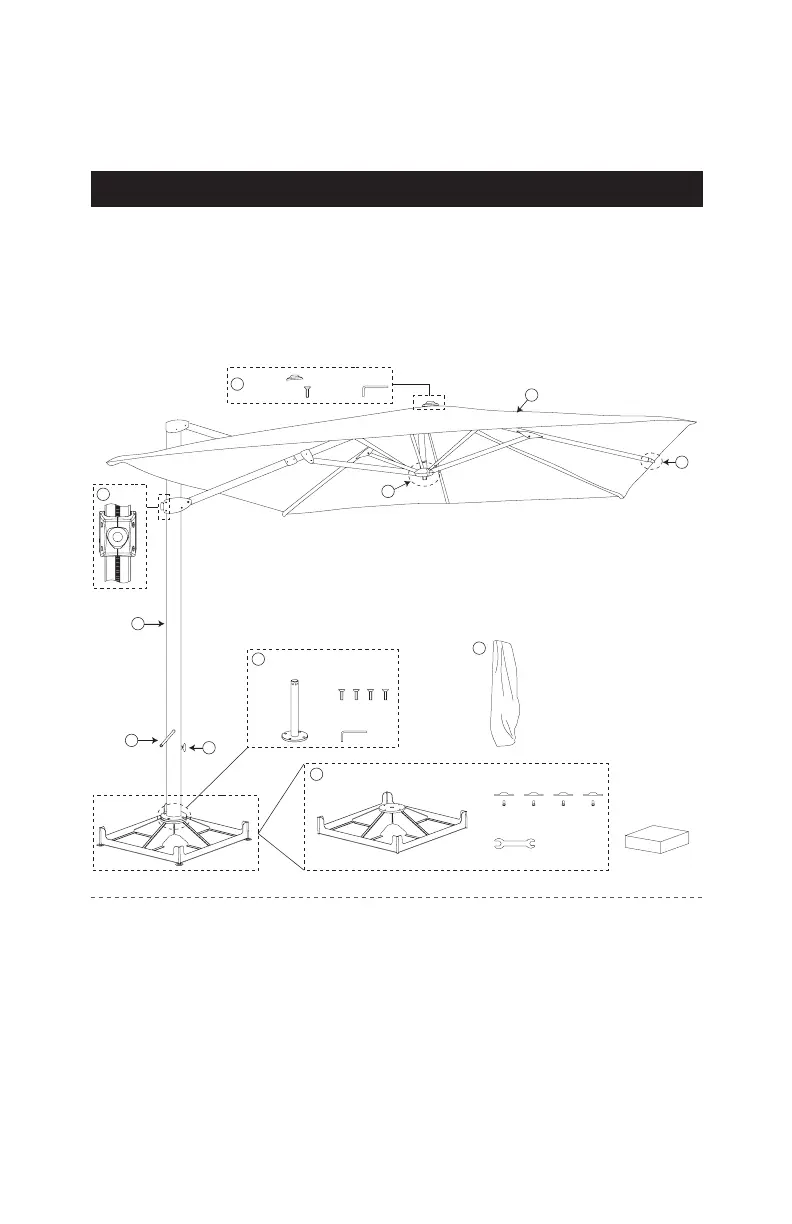

CHECKLIST
101
A - (1) Base Assembly G - (1) Finial Assembly
B - (1) Internal Stem Assembly H - (1) Canopy
C - (1) Rotation Knob I - (1) Spring Loaded Rib End
D - (1) Crank Handle J - (1) Light Adapter (light sold separately)
E - (1) Main Frame K - (1) Protective Cover
F - (1) Adjustment Knob
(4) Feet and Screws
Required:
(4) 50lbs. Weights/
Stones Required
Sold Separately
(1) Base Frame
(4) Hub Bolts
(1) 6mm Hexagon
Wrench
(1) Internal Mast Stem
(1) Finial Bolt
(1) 5mm Hexagon
Wrench
(1) Finial
(1) Wrench
D
E
F
J
I
K
C
A
B
G
H
REQUIRED FOR ASSEMBLY:
• Four (4) 50 lb. weights - square stones or concrete weights. (200 lb. total weight needed
for support - weights not included) Stones & weights, standard sizes can be used up to
16” L x 16” W x 1.5” H.
NOTE: Using base frame without weights will damage your umbrella and may cause injury.
CAUTION:
• Fully assembled, the umbrella weighs over 500 lbs. Moving umbrella fully assembled
will increase the risk of damage to your umbrella and/or can cause serious injury. We
recommend a two-person team for assembly and disassembly.
Cantilever Umbrella
