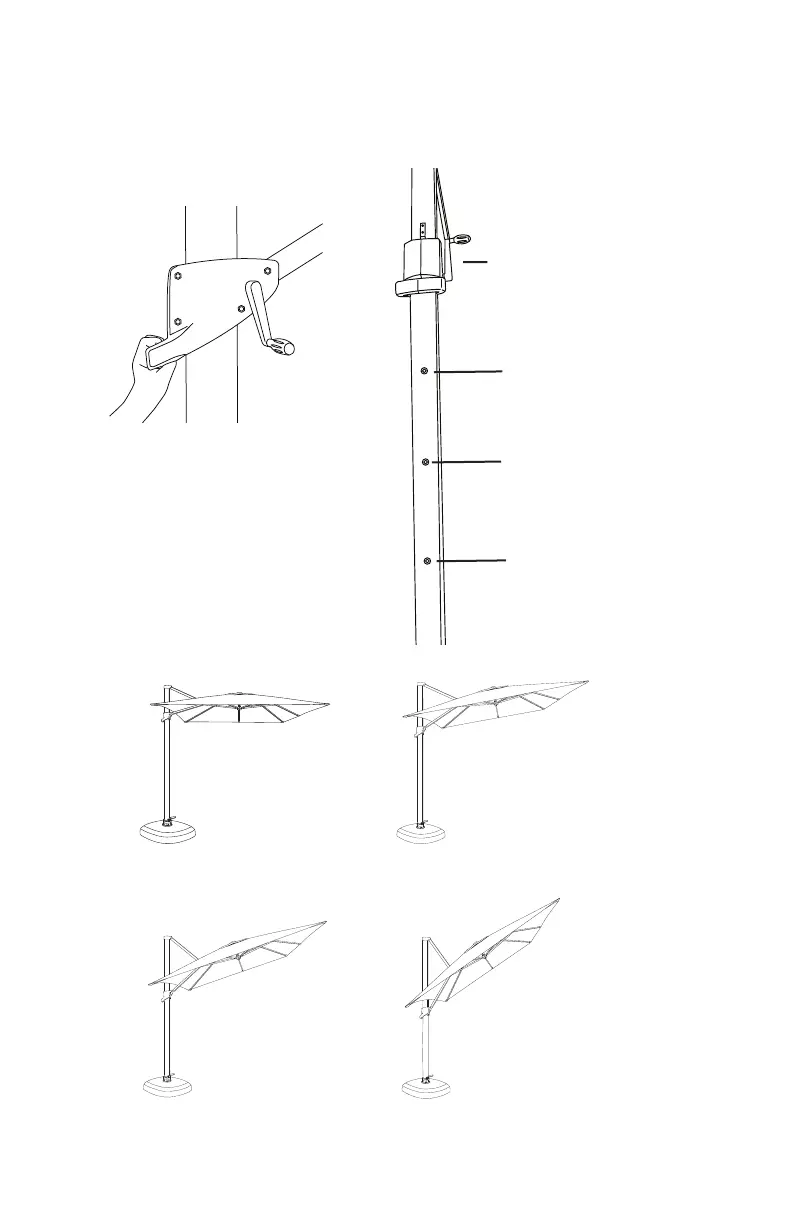

Tilt Positions (Fig. 16)
S T E P 4 Tilting Umbrella
To tilt umbrella, squeeze the main frame grip handle (Fig. 15) and slide handle to
desired tilt position (Fig. 16). Release main frame grip handle to lock into tilt position.
(Fig. 15)
Tilt Position #1
Tilt Position #2
Tilt Position #3
Horizontal/Open Position
Tilt Position #3 Hole
Tilt Position #2 Hole
Tilt Position #1 Hole
Horizontal Position Hole
S T E P 3 Opening Umbrella
From closed position, turn the crank clockwise while disengaging main frame
grip handle and guiding up main frame (Fig. 12), until the umbrella is fully opened
(Fig. 13) and the hub is at the top most position (Fig. 14). Tilt umbrella to desired
position. See Step 4 for tilt operation.
NOTE:
When cranking umbrella open, if you feel resistance and the umbrella is not
opening, do not force the crank. Gently spread umbrella ribs with hands, then continue
to crank open.
(Fig. 14)
Hub
(Fig. 12)
(Fig. 13)
