12 Operation
5WPMAN0148 (Rev. 5/16/2008)
Blade Rotation (Figure 9)
The blade can be reversed for backfilling. Remove the
drop pins and rotate the blade 180 degrees from the
forward position. Reinstall the drop pins and secure.
The tractor draw bar must be removed or installed in its
shortest position to allow the blade to rotate 180
degrees.
Adjust sway blocks or tighten tractor 3-point sway
chains to eliminate implement side-to-side movement
during operation.

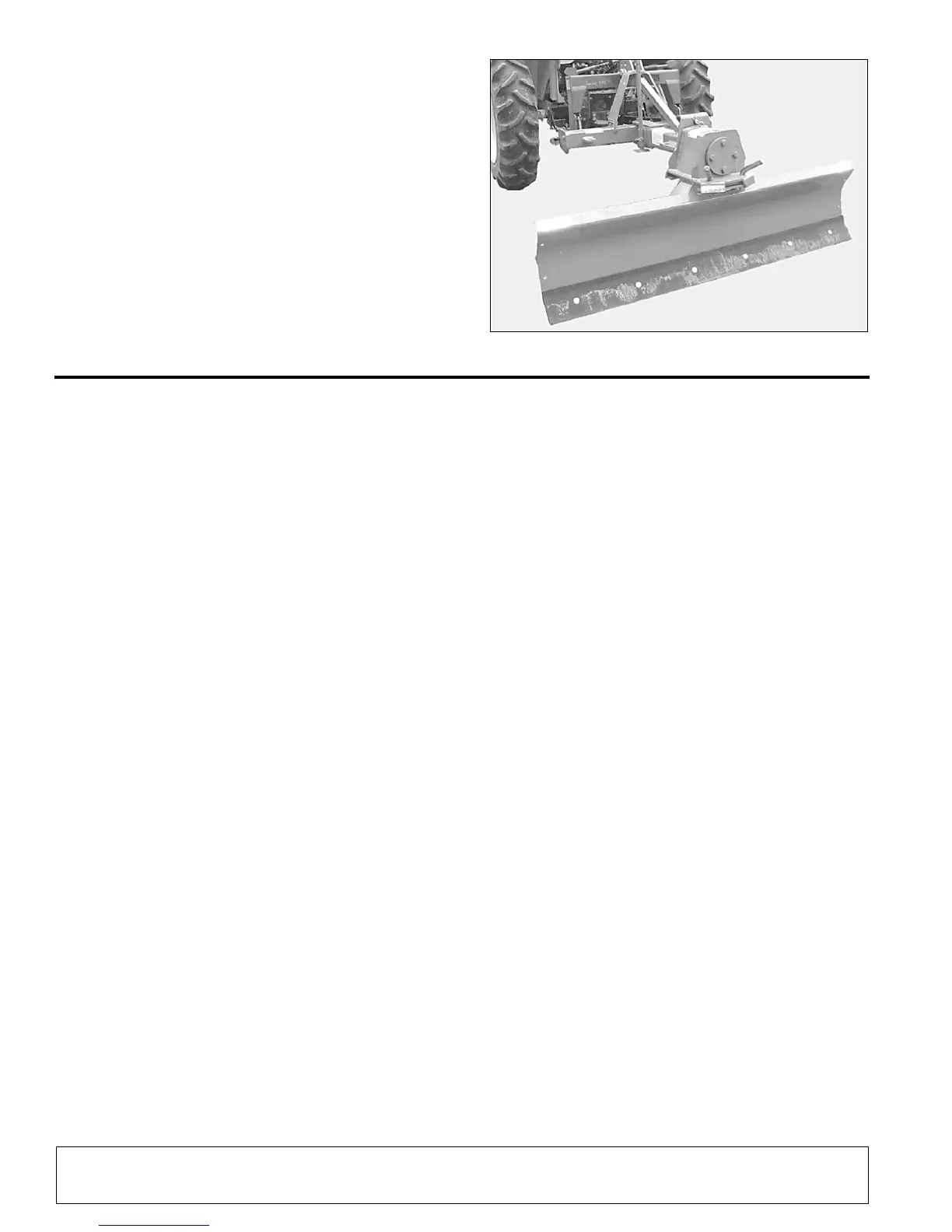

Figure 9. Blade Rotated 180 Degrees
