FS E Series - Page 4

EN
3

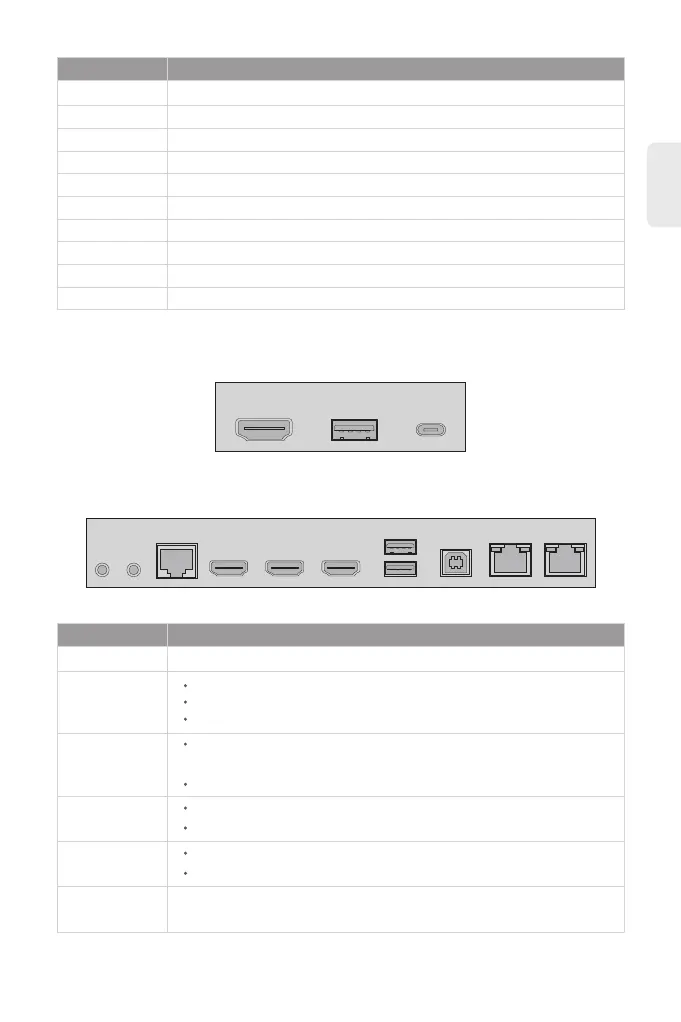

Bottom Ports
Side Ports
No. Name
1
2
Touch pen slot
Module connector
3
4
5
6
7
8
9
10
OPS computer slot
Side ports
Bottom ports
Bracket mounting hole
Wireless module slot
Power button
Power port and power switch
Handle
Ports Description
HDMI IN
USB
Three video input ports for connecting to a video signal output device
· Three USB Type-A ports for connecting to a USB device
· Bottom USB port for both Android and Windows
· Side USB port for Android only
USB TYPE-C
LINE IN
LINE OUT
RS232
· USB Type-C port for connecting to a video signal output device or a
DP adapter
· Supporting USB 2.0 for data transmission
· Audio input port for connecting to an audio output device
· Supporting stereo
· Audio output port for connecting to an audio input device
· Supporting stereo
RS232 serial port for connecting to an RS232 device for signal input
control
LINE
IN
LINE
OUT
RS232 HDMI
IN
HDMI
IN
HDMI
OUT
USB
TYPE-B
LAN IN LAN OUTUSB
HDMI IN
USB USB
TYPE-C
