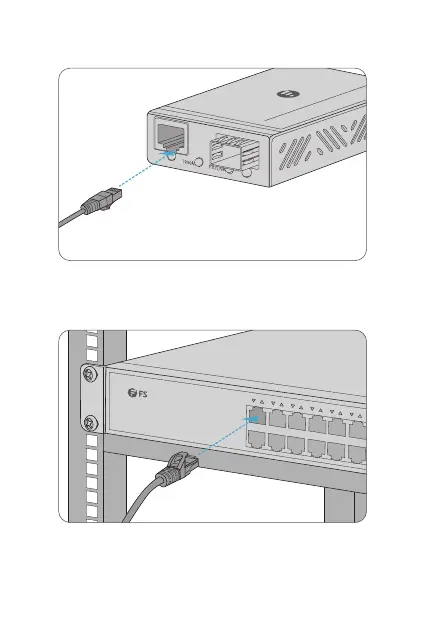

Connecting to the RJ45 Port
1. Connect an Ethernet cable to the RJ45 port of the media converter.
2. Connect the other end of the Ethernet cable to the network device (switch,
PC, router, etc.).
S3900-24T4S
1 2 3 4 5 6 7 8
9
10 11 12
13 14
15 16
PWR
TP/LNK
GIGA MC
MMC-GASFP-V
10/100/1000Base-TX to 1000Base-FX
Mini Media Converter
