FS UMC-2S User Manual

- 4 -EN

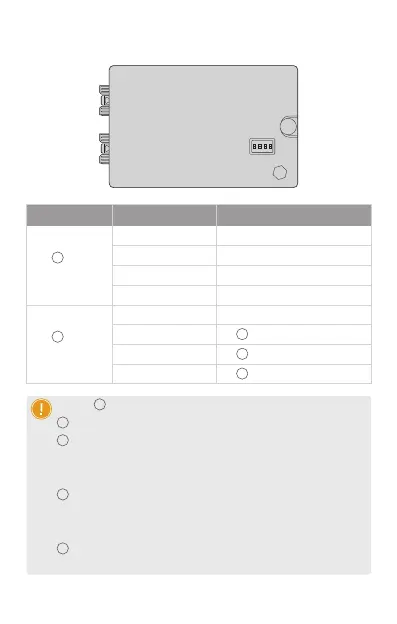

Bottom Panel (DIP Switch)
NOTE: SW1 and SW2 are combination switches
SW3 and SW4 are combination switches
ALS (Automatic Laser Shutdown) Function: If enabled, the
output power of the SFP transmitter will be automatically shut
down in case of ber break.
LFP (Link Fault Pass Through) Function: If enabled, when a
device is connected to the converter and the TP/ber line loses
the link, the converter's ber will disconnect the link of transmit.
LOOP Function: Run a loop back test to check the
interconnection between two Media Converter devices.
1
2
3
4
5
NO Status Description
OFF/OFF 125M-11.3G
8.5G
Normal
4 LFP enable
5 LOOP enable
10.35-11.7G
N/A
3 ALS enable
ON/OFF
OFF/ON
ON/ON
OFF/OFF
ON/OFF
OFF/ON
ON/ON
SW1
SW2
1
SW3
SW4
2
ON
1 2 3 4
KE

FS UMC-2S Specifications

General

Brand	FS
Model	UMC-2S
Category	Media Converter
Language	English
