CAC (AC Fail)
12V (red)
GND (black)

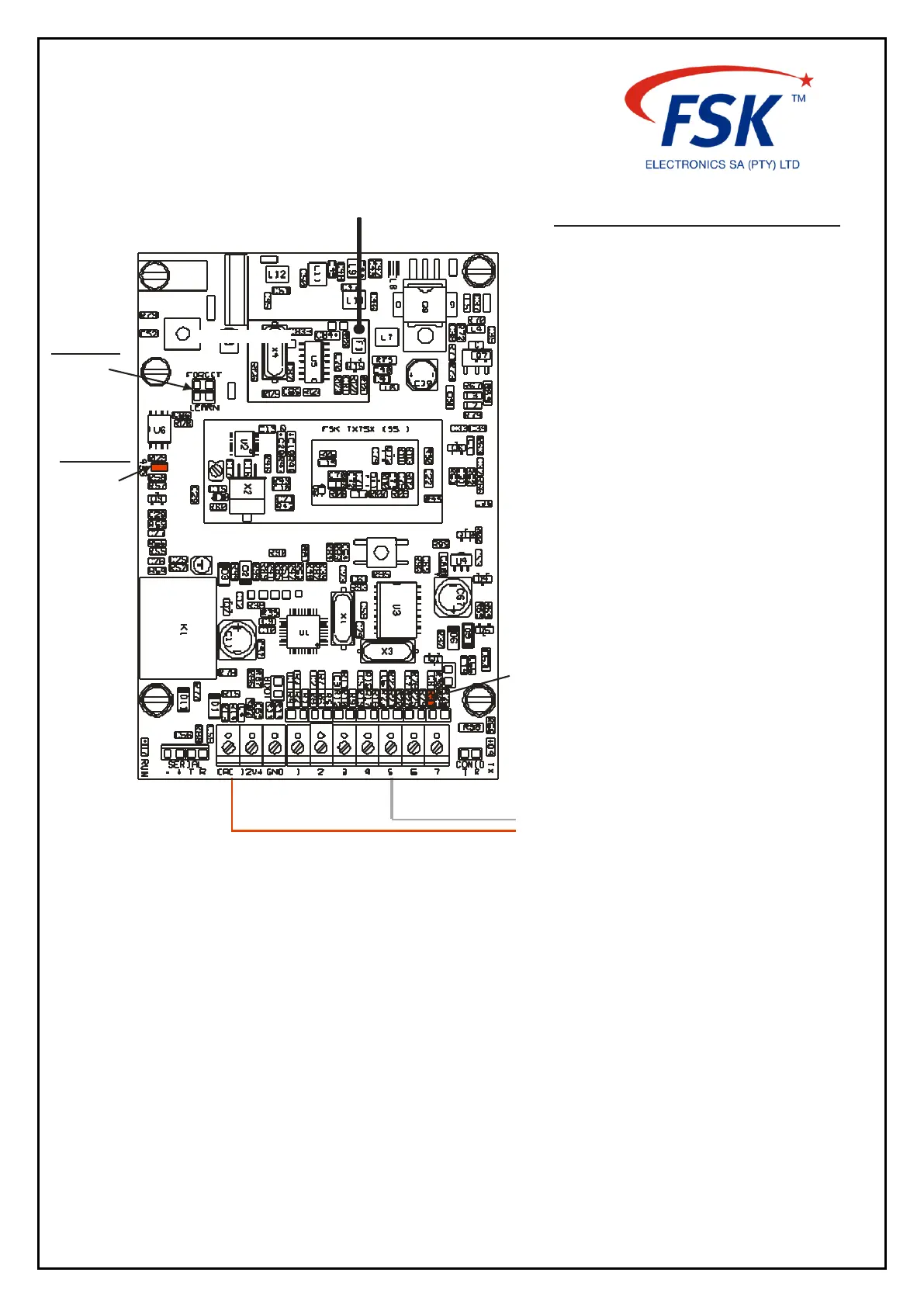

MODIFYING THE TX75X
TAMPER
SWITCH
Connect the tamper switch as shown
(wire one side into 12V and the other into Input 6)
For the SIREN output
R31 must be changed to 1k
WIRING INSTRUCTIONS
Connect the following wires
R31 = 1k
The tamper switch is a normally open contact
(closed when the box is closed)
REMOTE CONTROL PROGRAMMING
The remote control is factory programmed
into the unit
delete all the
remotes by
Placing a jumper on the ‘F’orget pins
The RED lamp flashes five times
Remove the jumper thereafter
To program in a new remote
Place a jumper on the ‘L’earn pins
Press the RED button on the remote
twice (the RED lamp will flash twice)
Remove the jumper after the remote
has been programmed.
Up to 10 remotes can be programmed into
TX75X
Should a remote get lost,
LEARN/
FORGET
JUMPERS
REMOTE
REMOTE
STATUS
LAMP
