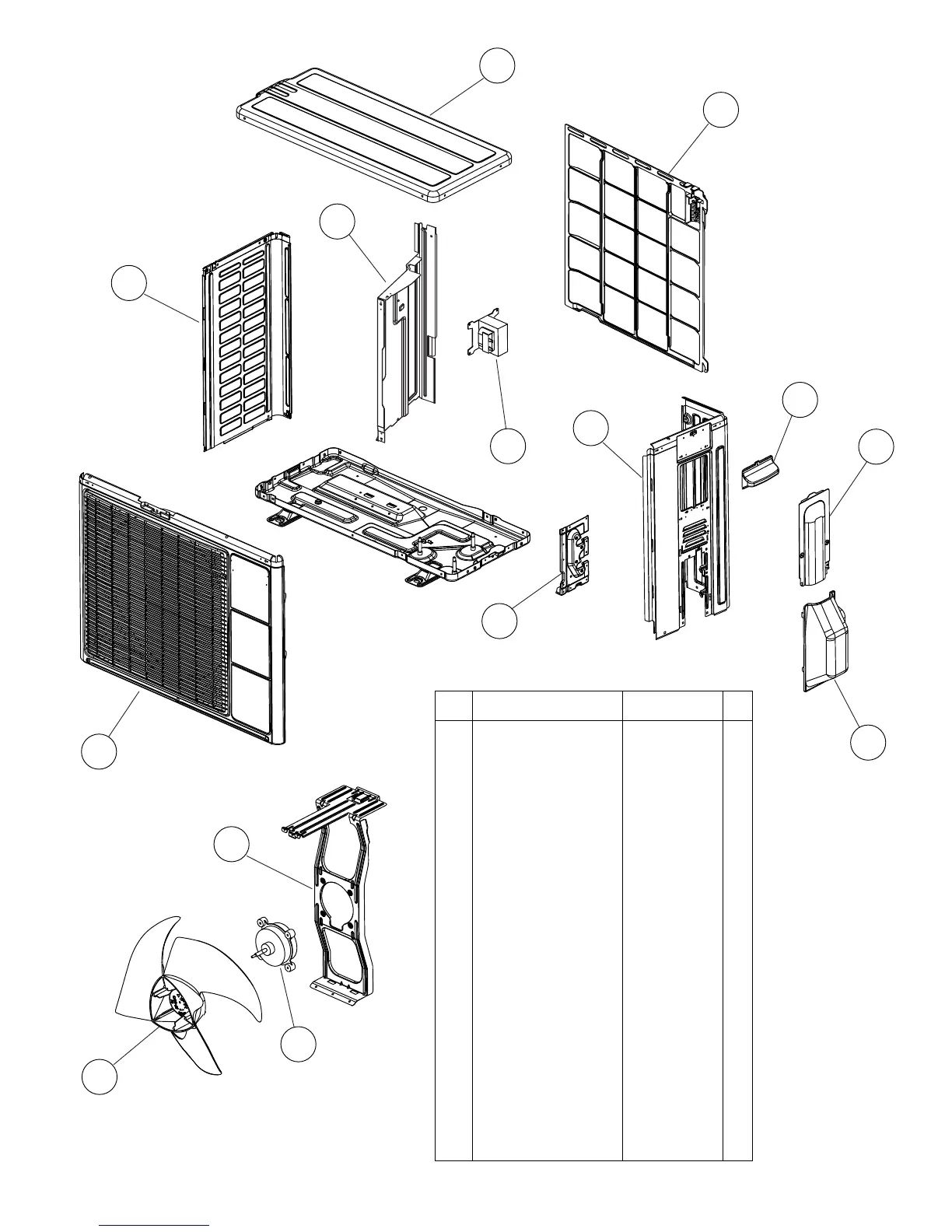

PARTS
OUTDOOR UNIT
2011.01.25 17
3 Front Panel Assy 9317789028
2 Top Panel Assy 9317939027
1 Protective Net 9331262033
4
7
Cabinet Left Assy 9317813006
-- Drain Assy 9303029022
-- Emblem 9319158006
Switch Cover A 9317795005
9 Valve Bracket 9316523012
5 Cabinet Right Assy 9317788021
10 Motor Bracket 9332289039
12 Propeller Fan 9309909014
13 Reactor Assy 9900583002
14 Separator Assy 9317786010
8 Switch Cover B 9317582001
6 Grip 9317588003
11 Fan Motor 9602664009
Ref. Description Part number
3
8
4
14
13
12
11
10
1
7
6
5
9
2
