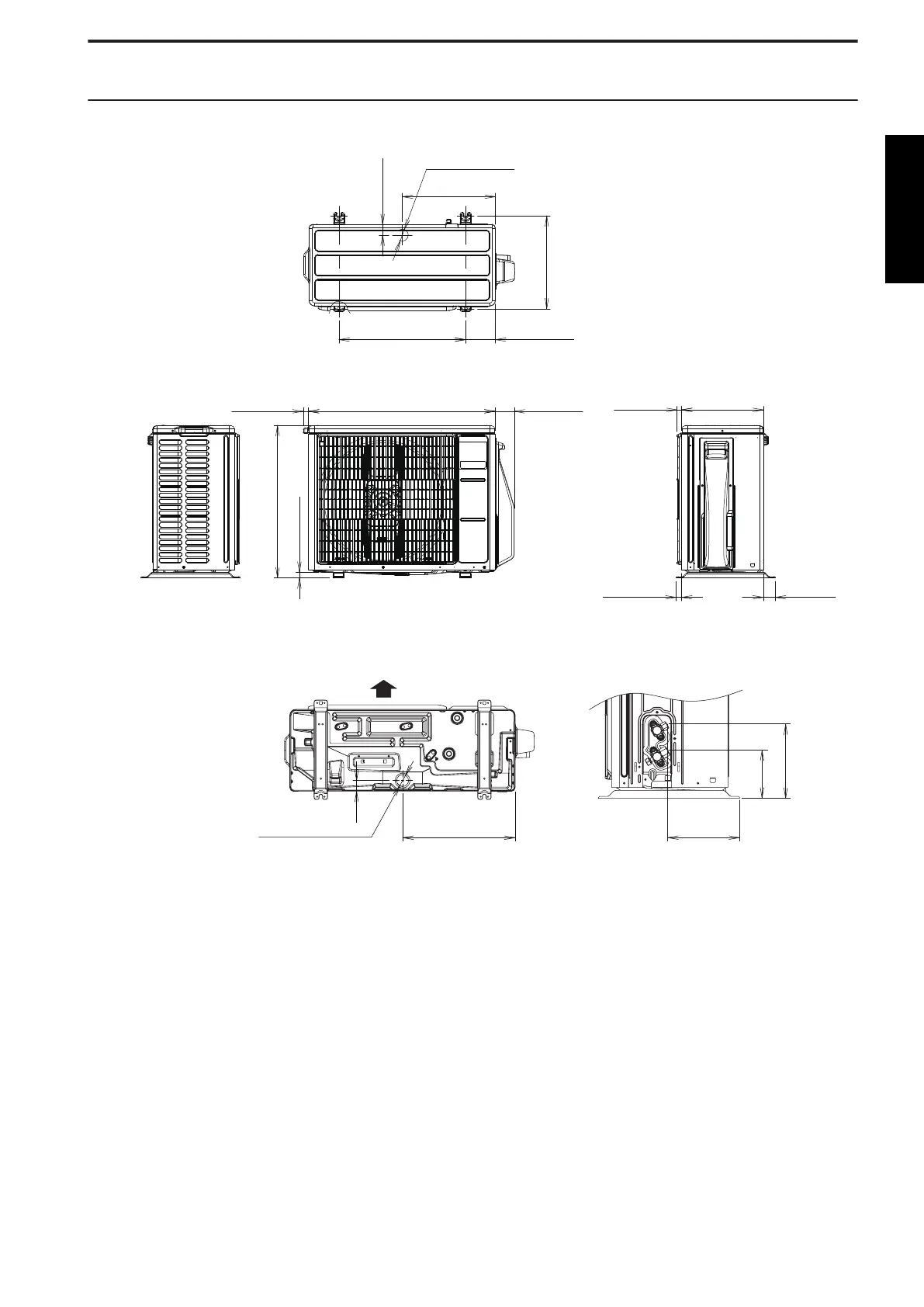

2. Dimensions
2-1. Models: ROG07KMTA, ROG09KMTA, and ROG12KMTA
Unit: mm
290
16
20 42
450
Pitch of bolts for installation
330
Pitch of bolts
for installation
106
37
331
Drain port Ø42
Top view
Side view
663
68
19
541
20
Front view
Side view
Airflow
184
120
37
179331
Bottom view Side view (Bulb part)
Drain port Ø42
- 41 -
OUTDOOR UNIT
ROG07-14KMTA
