Problem Solving
670
Problem Solving
15
2

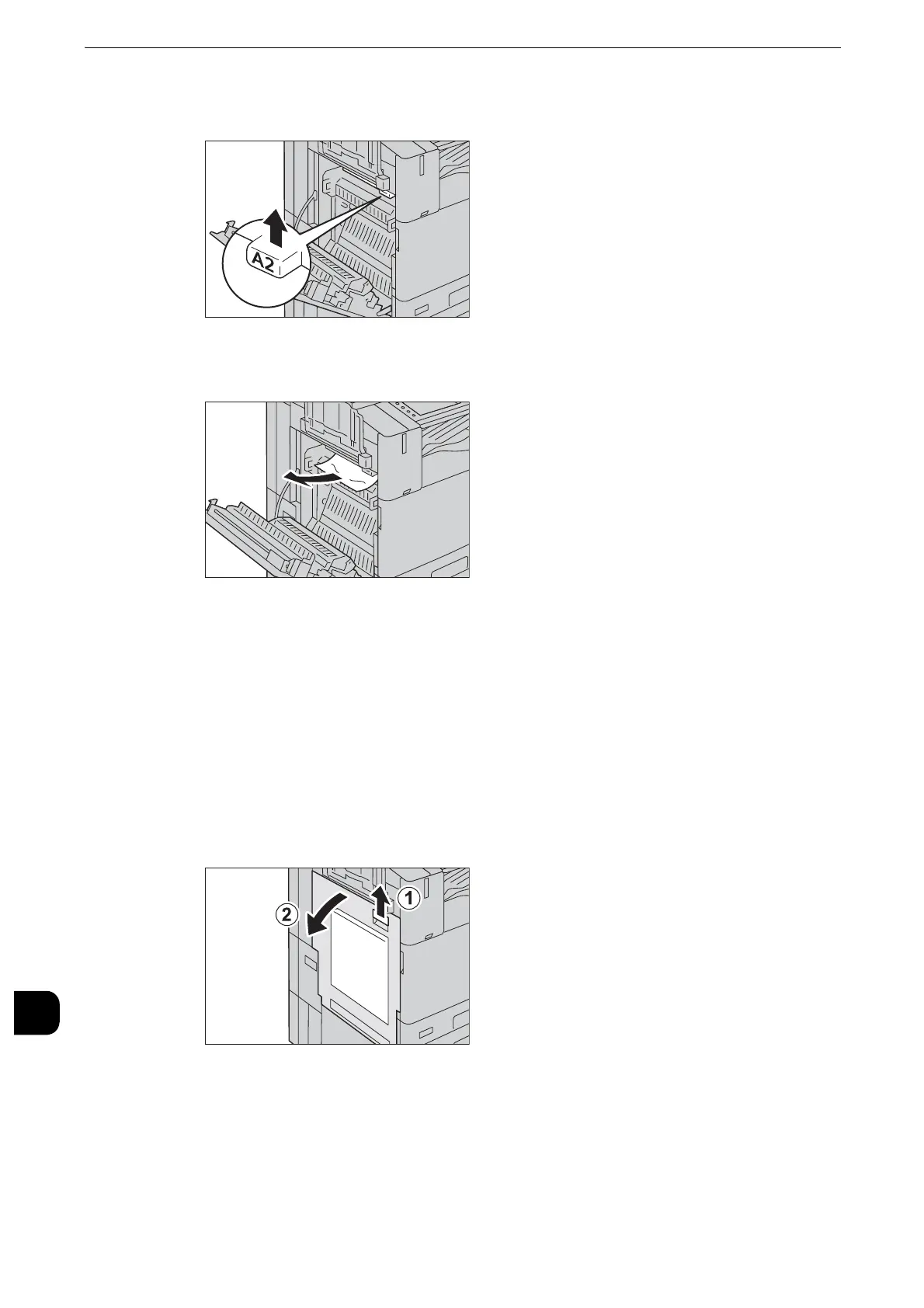

Move the lever A2 in the arrow direction.
3
Holding the lever A2, remove the jammed paper.
z
If the paper is torn, make sure no piece of paper remains inside the machine.
4
Return the lever A2 to the original position.
5
Push the center of the top left cover and close the cover gently.
Paper Jams in Duplex Module
1
While lifting up the release lever (1), gently open the top left cover (2).
To Next Page
