Device Components
35

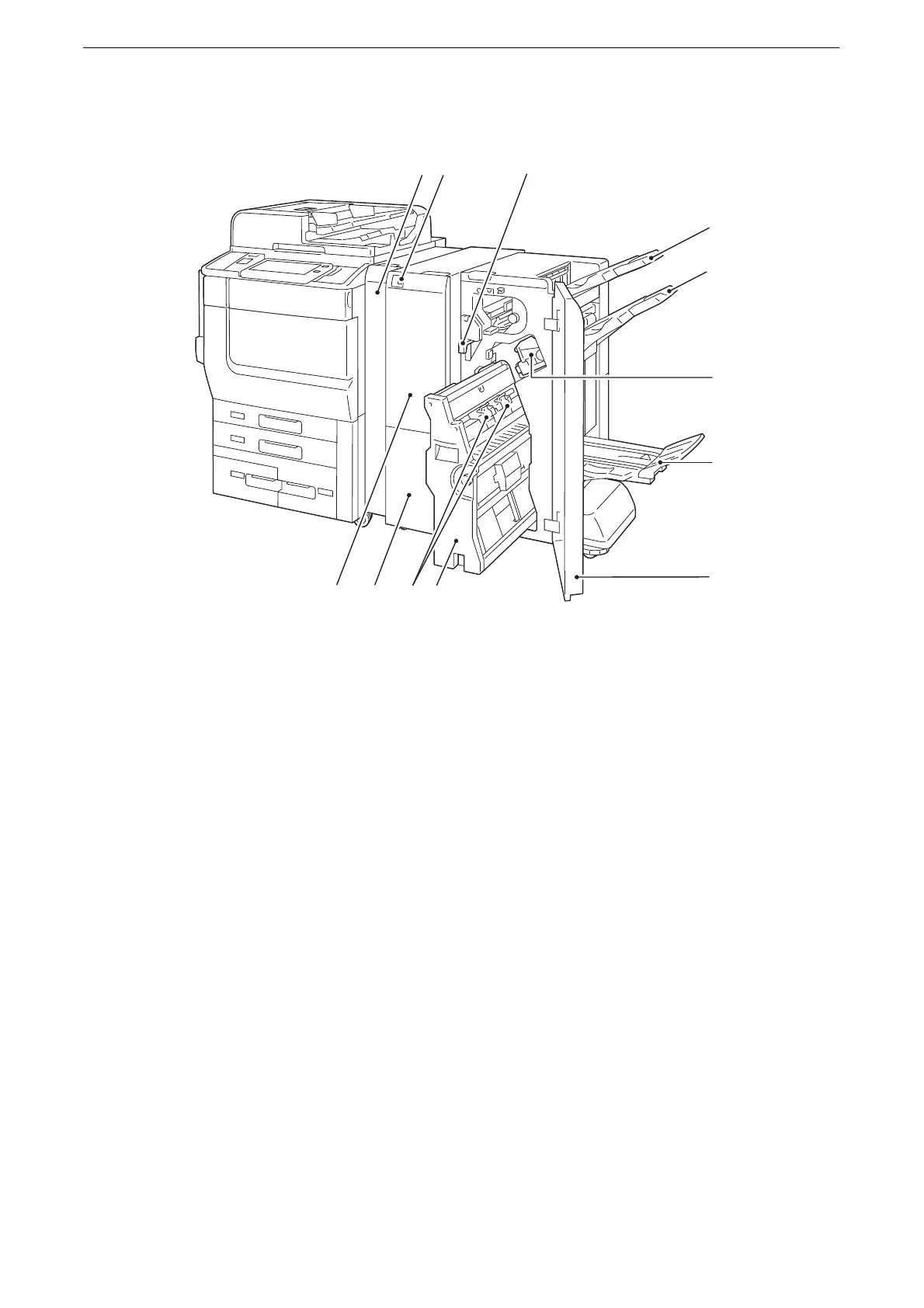

C3 Finisher (optional), C3 Finisher with Booklet Maker (optional), and Folder Unit CD1
(optional)
1 Transport Unit V1 front door
Open this door to clear paper jams.
2 Tri-fold output tray (Envelope Folder Tray) button (When the optional Folder Unit CD1 is
installed)
Press this button to open the tri-fold output tray.
3 Hole-punch waste container
Collects punch scraps from the puncher. Remove this container when discarding the scraps.
4 Output tray (Right-Top Output Tray)
Outputs are delivered here.
5 Finisher tray (Right-Middle Output Tray)
Outputs are delivered here.
6 Staple cartridge
Staples are stored in this cartridge. Pull out this cartridge to replace staples or clear staple
jams.
7 Booklet tray (Right-Bottom Output Tray)
Bound booklets are delivered here.
8 Finisher front door
Open this door to clear paper or staple jams, replace staples, or discard punch scraps.
9Booklet unit
This unit is for folding outputs in half and stapling the folded outputs.
10 Booklet staple cartridge
Two staple cartridges for booklet creation. Take out the cartridges when clearing stapled
jams, or when replacing them with new ones.
11 Tri-fold output tray (Envelope Folder Tray) (When the optional Folder Unit CD1 is installed)
Tri-folded outputs are delivered here.
