2 Product Overview
50
Product Overview
2
îš„ Duplex automatic document feeder
6 Waste toner container Used to collect waste toner.
7 Fusing unit Fuses toner on paper.
Important • Do not touch this unit as it is extremely hot.
8 Handle Used to pull out the transfer unit.
9 Transfer unit Transfers toner images on the drum to paper. Open this unit to clear paper
jams.
10 Drum cartridges Contain photoconductors. R1, R2, R3, and R4 are installed from the left.
11 Toner cartridges Contain toner (image forming power). Black (K1 and K2), Cyan (C), Magenta
(M), and Yellow (Y) toner are installed from the left.
No. Component Function
8
7
12 3 5 6
4

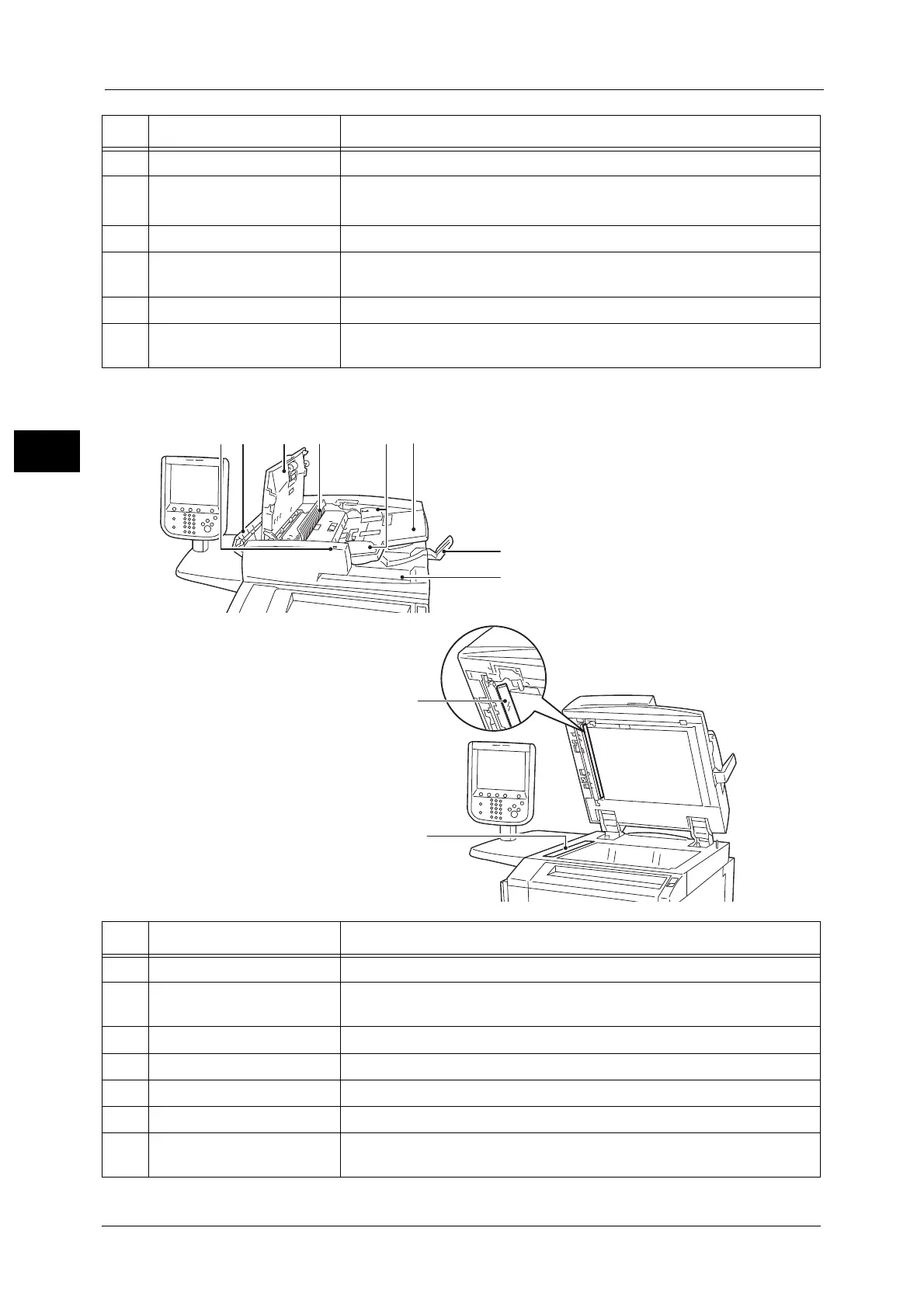

No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Document feeder left cover This cover slightly opens when the document feeder top cover is opened.
Open this cover widely to clear document jams.
3 Document feeder top cover Open this cover to clear document jams.
4 Inner Cover Open this cover to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document stopper Holds large size documents such as A3 in place. Open this stopper rightward
when using it.
