HP-GL/2 Emulation
719
Appendix
16

IW
The area specified by the last IW command in the data becomes the active coordinates
area.
If there are no IW commands in the data, the active coordinates area is determined by
Adapted.

IP
The coordinates encompassing all areas specified by IP commands in the data becomes
the active coordinates area.
If there are no IP commands in the data, the active coordinates area is determined by
Adapted.

Adapted
The active coordinates area is determined by the following conditions:
- Minimum/Maximum position coordinates plotted by drawing commands
- Maximum font size specified within the page
-Maximum line width

PS
The coordinates encompassing all areas specified by PS commands in the data becomes
the active coordinates area.
If there are no PS commands in the data, the active coordinate area is determined by
Adapted.
 Paper Margin
Set the range from 0 to 99 mm. The default value is 0 mm. To get the active coordinates
area, subtract the area set in paper margins from the active coordinates area obtained in
the area determination mode.
 Scaling Mode
Select the mode for determining the document size from the obtained active coordinates
area. Use active coordinates area to determine whether the paper orientation will be
portrait or landscape.

If it is an Active Coordinates Area
To obtain the document size, subtract the area specified in paper margins from the active
coordinates area obtained in the area determination mode.

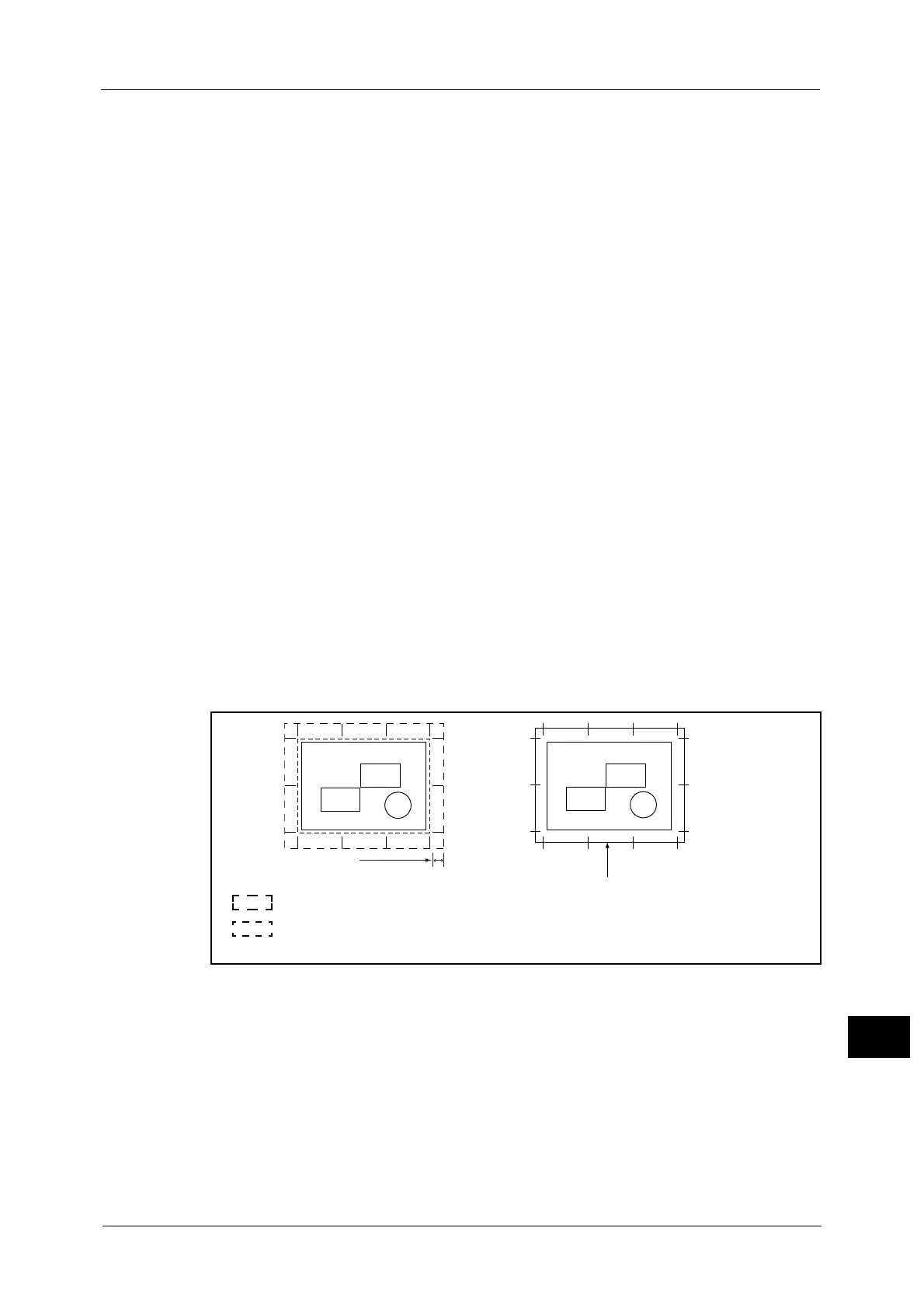

Area obtained by area determination mode
Area remaining when paper margin subtracted from
area obtained by area determination mode
Cannot plot because active
coordinates area exceeds
hard clip is exceeded
Paper Margins
