Machine Components
39
Product Overview
2

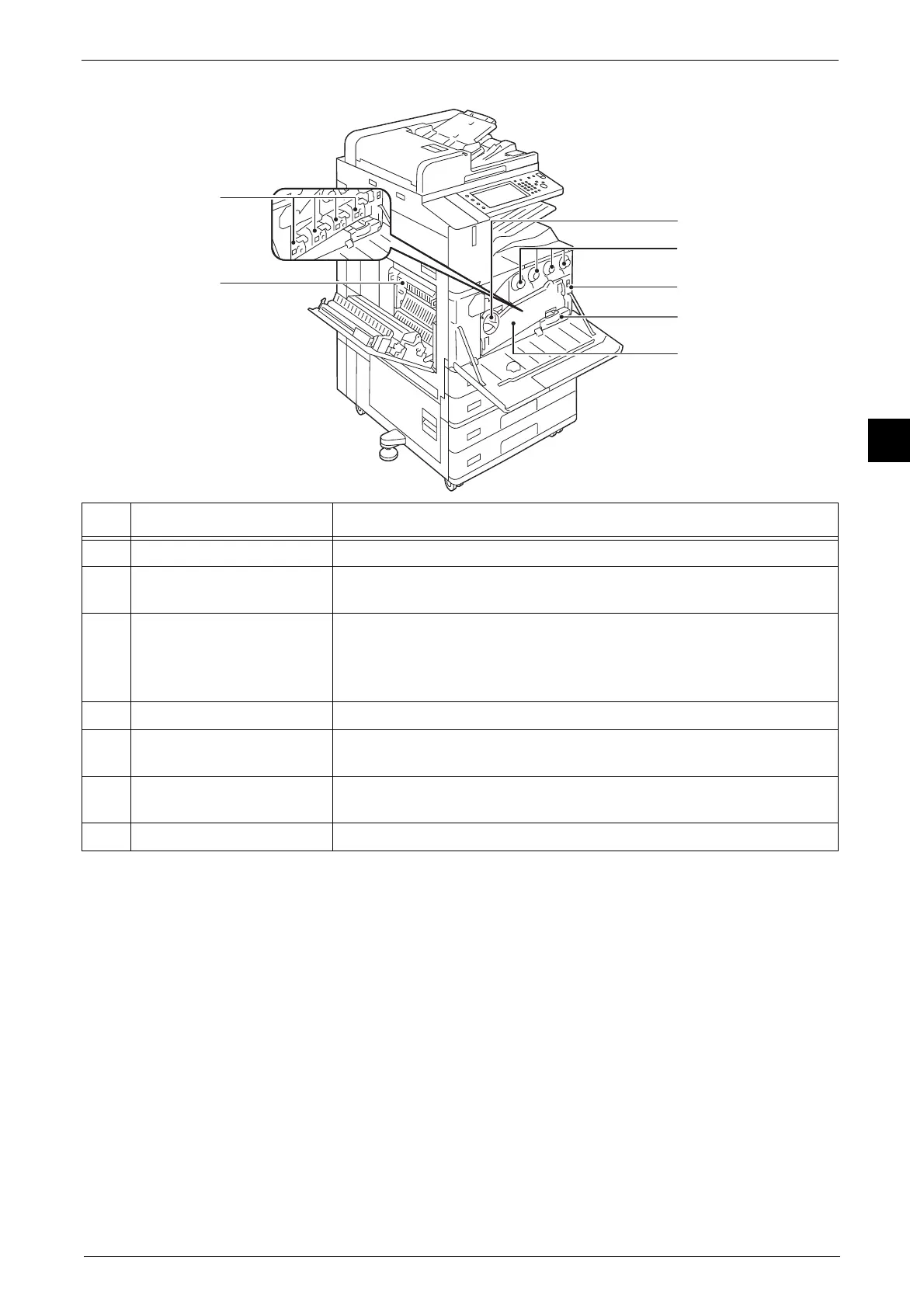

Inside
No. Component Function
1 Handle Unlock this handle when replacing a drum cartridge.
2 Toner cartridges Contains Black (K), Cyan (C), Magenta (M), and Yellow (Y) toner (image
forming powder).
3 Main power switch Switches the main power on/off of the machine. Always follow the
instructions by the system administrator.
Important Always switch the power off before switching the main power off. Refer
to "Power On/Off" (P.52).
4 Waste toner container (R5) Collects waste toner.
5 Conveyance box Remove this box when replacing a drum cartridge or cleaning the interior of
the machine.
6 Drum cartridges
(R1, R2, R3, R4)
Contains photoconductors R1, R2, R3, and R4.
7 Fusing unit (R8) Fuses toner on paper. Do not touch this unit as it is extremely hot.
1
2
3
4
5
6
7
