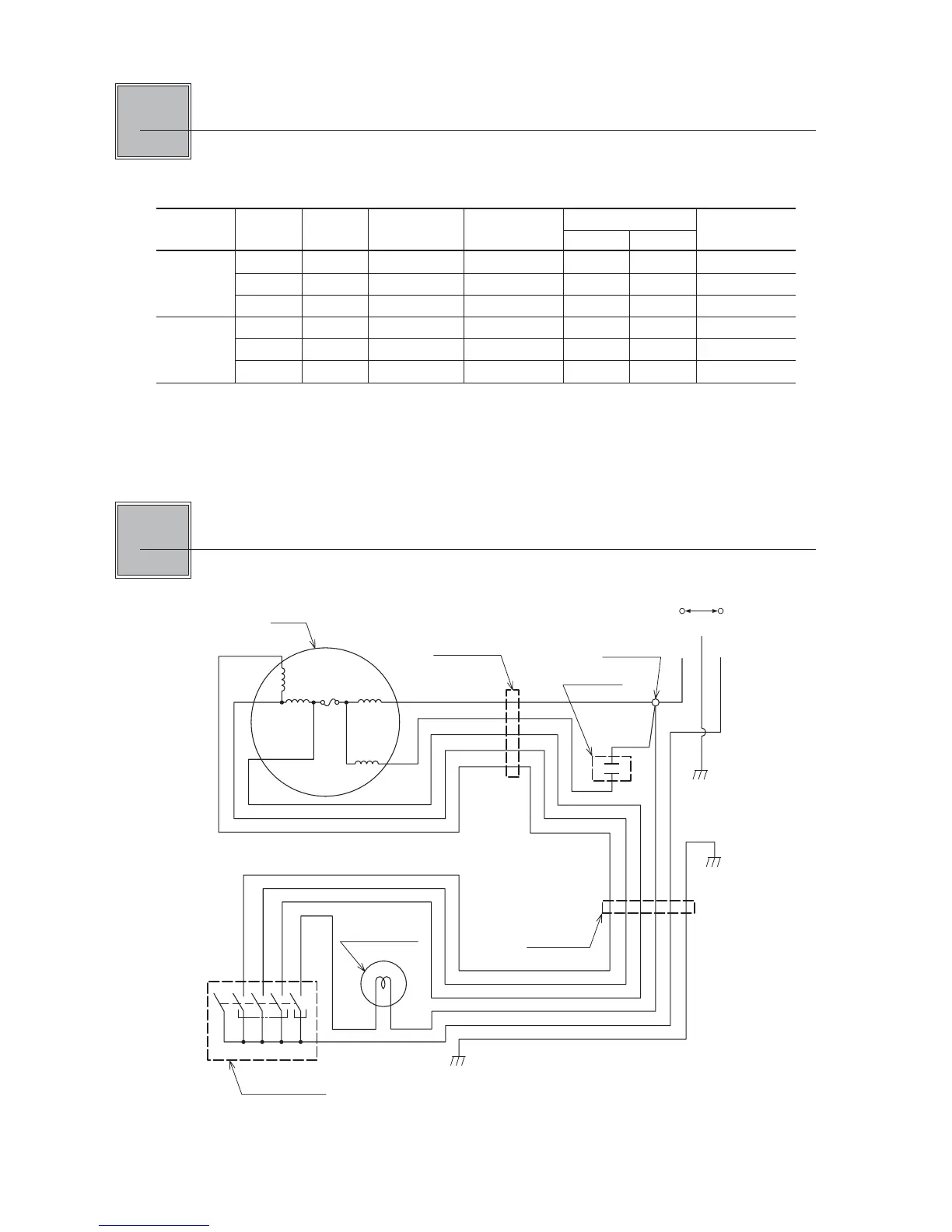

Fujioh BUF-0 - Circuit Diagram; Specifications

10
Motor
Connector
Connector
Terminal
Capacitor
Red
Red
Red
White
White
Orange
Brown
Blue
White Orange Brown Blue
Green
Green
Black
Black
White
Orange
Brown
Blue
Green
Black
120V 60Hz
Bulb:Max40W
Control Switch
specifications
circuit diagram
Refer to the following table.
NOTE
FUJI INDUSTRIAL CO., LTD. has measured airflow under HVI-916 and noise levels
under Japanese Industrial Standard (JIS) C9603 items 8.8 and 8.9.
Model
Voltage
Speed
Frequency Power Air Flow (CFM) Noise Level
(V) (Hz) Consumption(W) at 0 Pa at 25 Pa (dB)
120 Hi 60 140 250 240 47.0
BUF-01 120 Me 60 110 200 180 40.0
120 Lo 60 70 100 70 25.0
120 Hi 60 210 380 350 55.5
BUF-02 120 Me 60 140 220 200 43.0
120 Lo 60 95 150 120 33.0
