Brief description of mainbo ard
Procedure
The processor socket is covered with a protective cap to protect the spring
contacts. In the event of a warranty claim, the mainboard can only be taken back
by Fujitsu Siemens Computers with the protective cap secured !
a
b
b
► Remove the h eat sink.
► Press down the lever and unhook it.
► Fold up the frame .

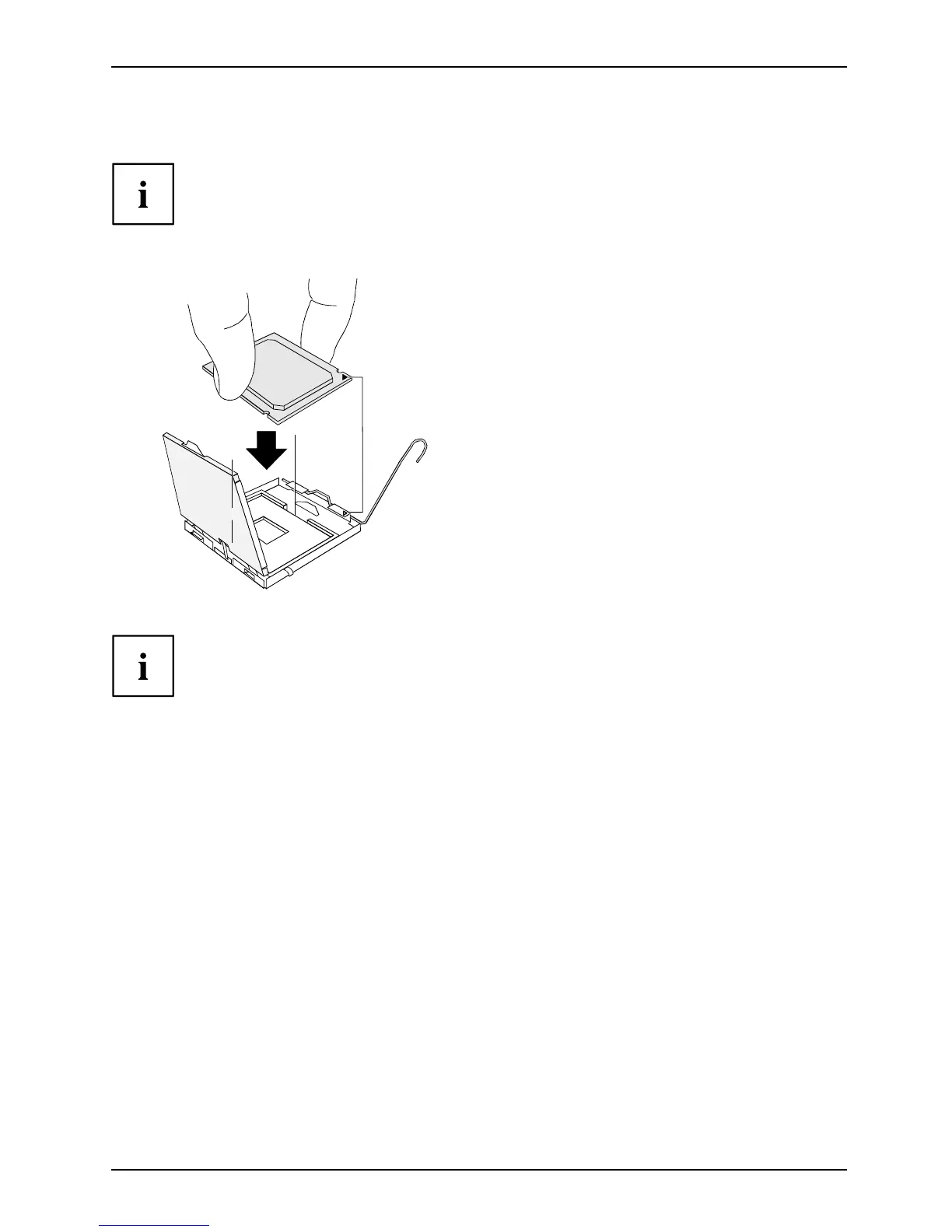

► Hold the processor between your thumb
and index finger and insert it into the socket
(b) so that the marking of the processor is
aligned with the marking on the socket (a).
► Press the lever downward until it is
hooked in again.
► Removetheprotectivecapandkeepit.
Please note that, depending on the heat sink used, different heat sink
mounts are required on the mainboard.
► Depend ing on the configuration variant, you must pull a protective f oil off the h eat sink
or coat the heat sink with heat conducting paste before fitting it.
► Secu re the heat sink - depending on the m odel - with four screws or pu sh it into the mounts.
A26361-D2750-Z110-1-7419, edition 2 English - 3
