Fujitsu AB*18LBAJ User Manual

- (01 - 19) -
MULTI TYPE 2ROOM TYPE MULTI TYPE 2ROOM TYPE

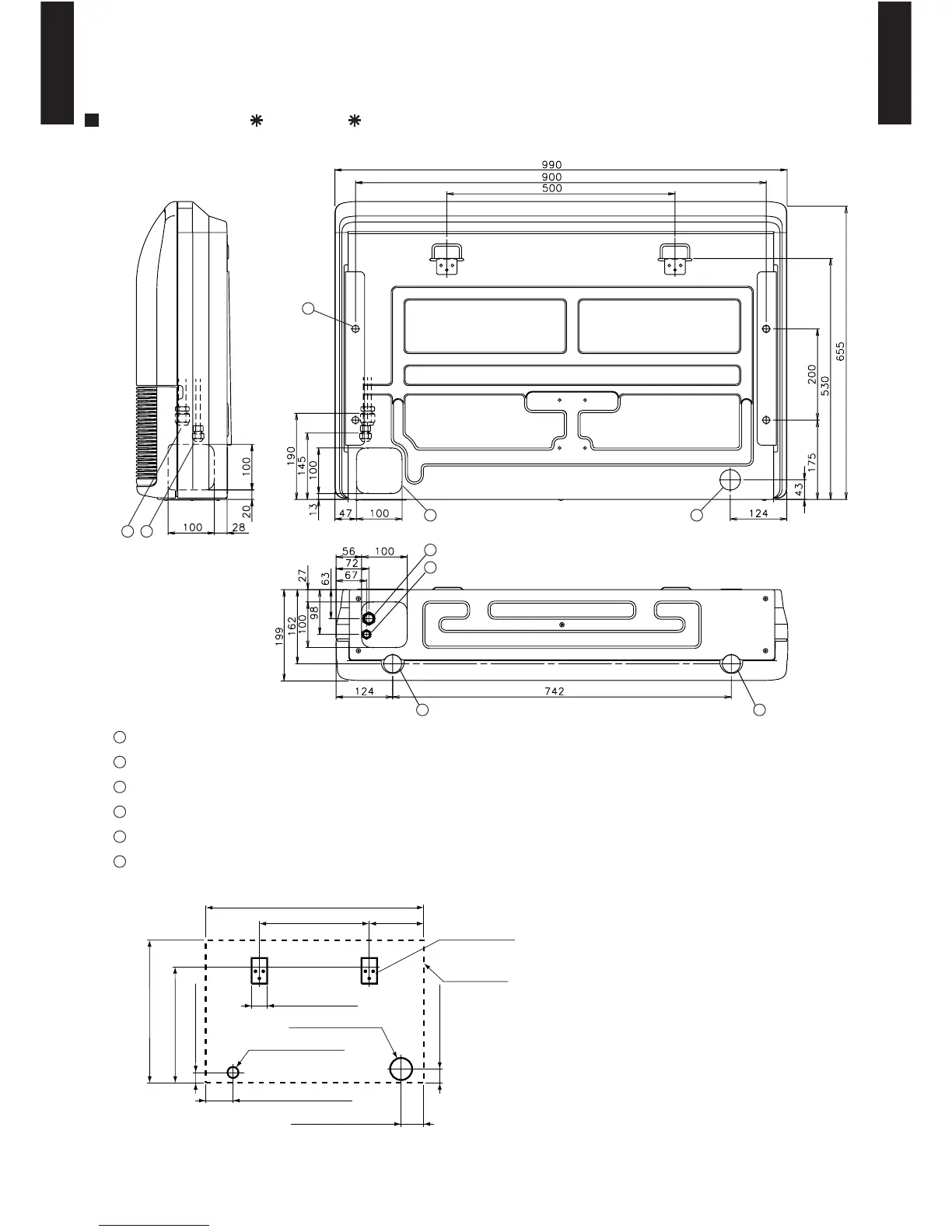

4-3. UNIVERSAL MODEL
MODELS : AB 14L, AB 18L
(Unit : mm)
100 hole
50 hole
125
100 hole
655
530
45
65
500 245
990
65
Wall bracket
Side of set
1
Refrigerant piping flare connection (Gas)
Refrigerant piping flare connection (Liquid)
Drain piping connection
Knock out hole for drain piping
Knock out hole for refrigerant piping
Hole for lifting bolt (Use M10 screw bolt)
2
3
4
5
6
1
2
3
45
6
3
1 2
Side view
Rear view
Bottom view

Fujitsu AB*18LBAJ Specifications

General

Brand	Fujitsu
Model	AB*18LBAJ
Category	Air Conditioner
Language	English
