Fujitsu AB*18LBAJ User Manual

- (02 - 09) -

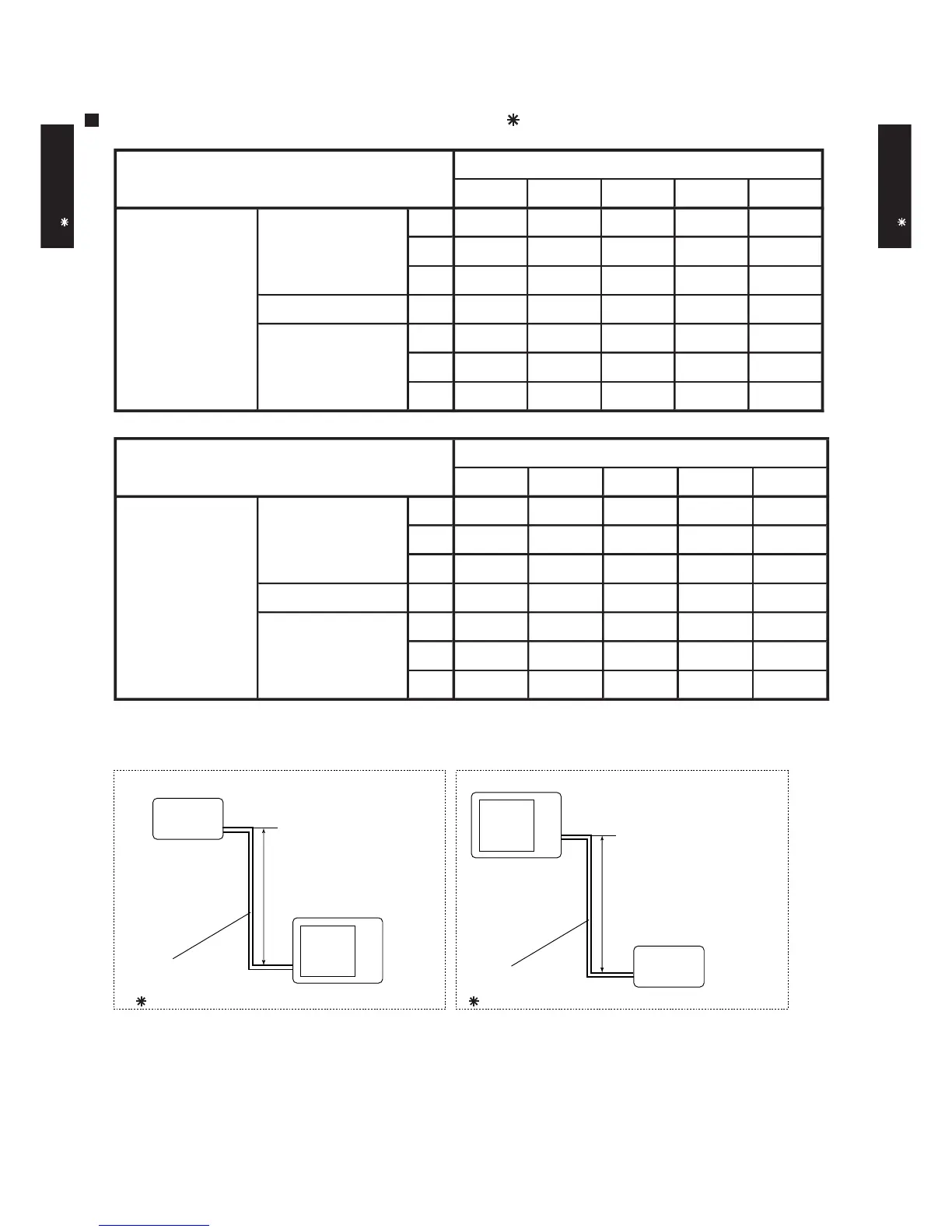

OUTDOOR UNIT AO 18-24L2
OUTDOOR UNIT AO 18-24L2
MODEL : INDOOR UNIT 18000BTU (AO 24L2)
Indoor unit
Height difference H
Connection pipe
H
Outdoor unit
Indoor unit
Connection pipe
H
Outdoor unit
Indoor unit is upper than outdoor unit.
1
Indoor unit is under than outdoor unit.
2
5 7.5 10 15 20
10 - - 0.996 0.985 0.970
7.5 - 1.000 0.996 0.985 0.970
5 1.004 1.000 0.996 0.985 0.970
0 1.004 1.000 0.996 0.985 0.970
-5 0.996 0.992 0.988 0.977 0.962
-7.5 - 0.988 0.984 0.973 0.958
-10 - - 0.980 0.969 0.955
COOLING
Height difference H
(m)
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
Pipe length (m)
5 7.5 10 15 20
10 - - 0.973 0.935 0.900
7.5 - 0.993 0.976 0.938 0.902
5 1.010 0.995 0.978 0.940 0.905
0 1.015 1.000 0.983 0.945 0.909
-5 1.015 1.000 0.983 0.945 0.909
-7.5 - 1.000 0.983 0.945 0.909
-10 - - 0.983 0.945 0.909
HEATING
Pipe length (m)
Height difference H
(m)
*1
Indoor unit is upper
than outdoor unit
*2
Indoor unit is under
than outdoor unit
