The airflow can be switched in 5 steps such as Auto, Quiet, Lo, Me, Hi,
while the indoor fan only runs.
When Fan mode is set at (Auto), it operates on (Me) Fan Speed.
2. FAN OPERATION
3. COOLING OPERATION (Auto : Cooling)
Switch the airflow [Auto], and the indoor fan motor will run according to a room temperature,
as shown in Fig 3.
On the other hand, if switched in [Hi] [Quiet], the indoor motor will run at a constant airflow of [Cooling]
operation modes Quiet, Lo, Me, Hi.
( Fig.3 : Airflow change - over (Cooling : Auto) )
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
TR-Ts > +2°C
=
+1°C > TR-Ts
+2°C > TR-Ts > +1°C
=
TR-Ts >
+2.5°C
=
+1.5°C > TR-Ts
+2.5°C) > TR-Ts > +1.5°C
=
Hi
Me
Lo
=
=
=
=
4. DRY OPERATION (Auto : Dry)
During the dry operation, the fan speed setting can not be changed,it operates automatically as shown in Fig. 4.
Room temperature variation which the room temperature sensor of the indoor unit body has detected.

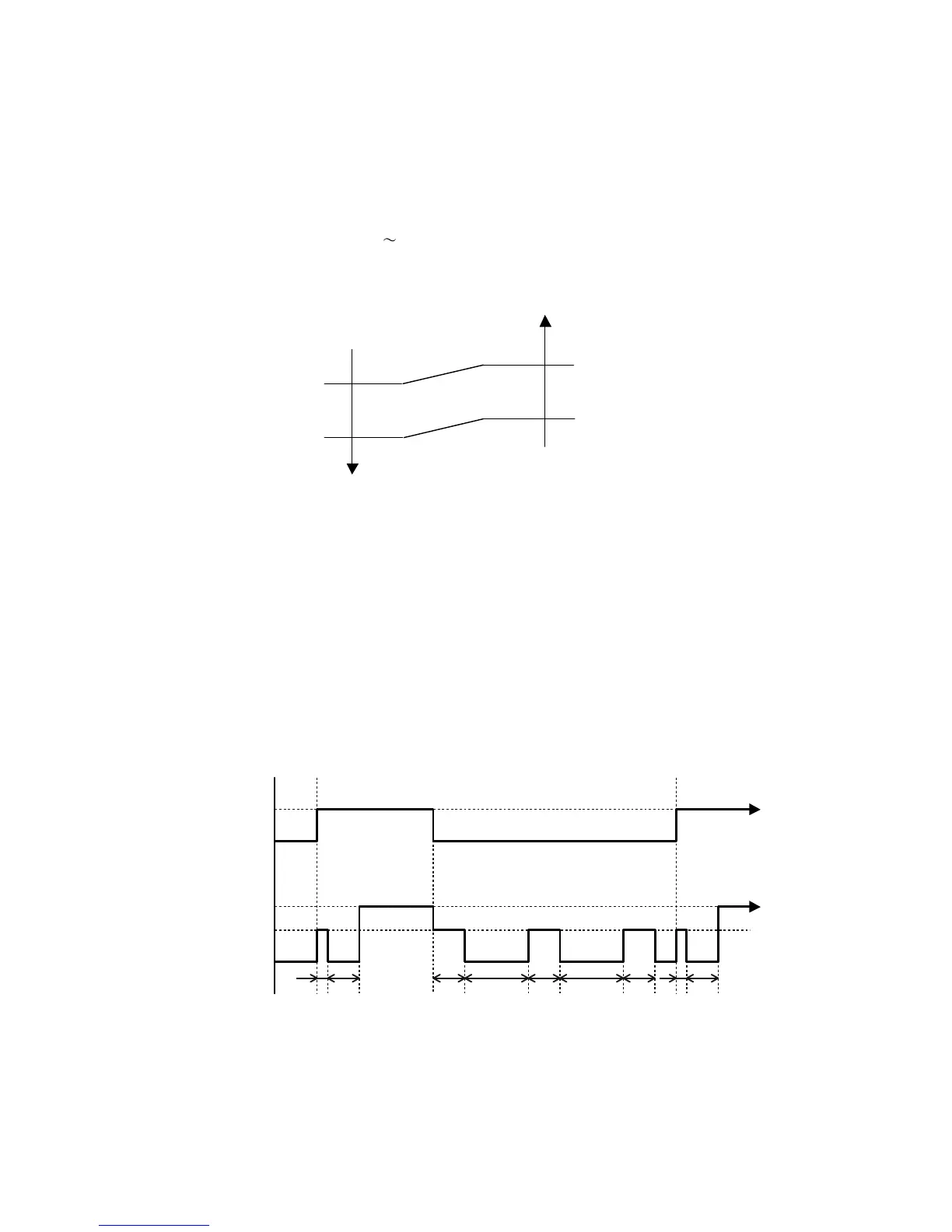

( Fig. 4 : Indoor fan control )
10 30 60 180 60 180 60 10 30 (sec)
Fan OFF
OFF
< Compressor >
ON
Setting air flow
S-Lo
< Indoor fan air flow mode >
< All models >
< All models >
01-08
3-1 INDOOR UNIT FAN CONTROL FOR ENERGY SAVING (Cooling mode)
Switch the airflow at cooling mode, and the indoor fan motor will run as shown in Fig.4.
It depends on the Function setting "Indoor unit fan control for energy saving."
