01-14

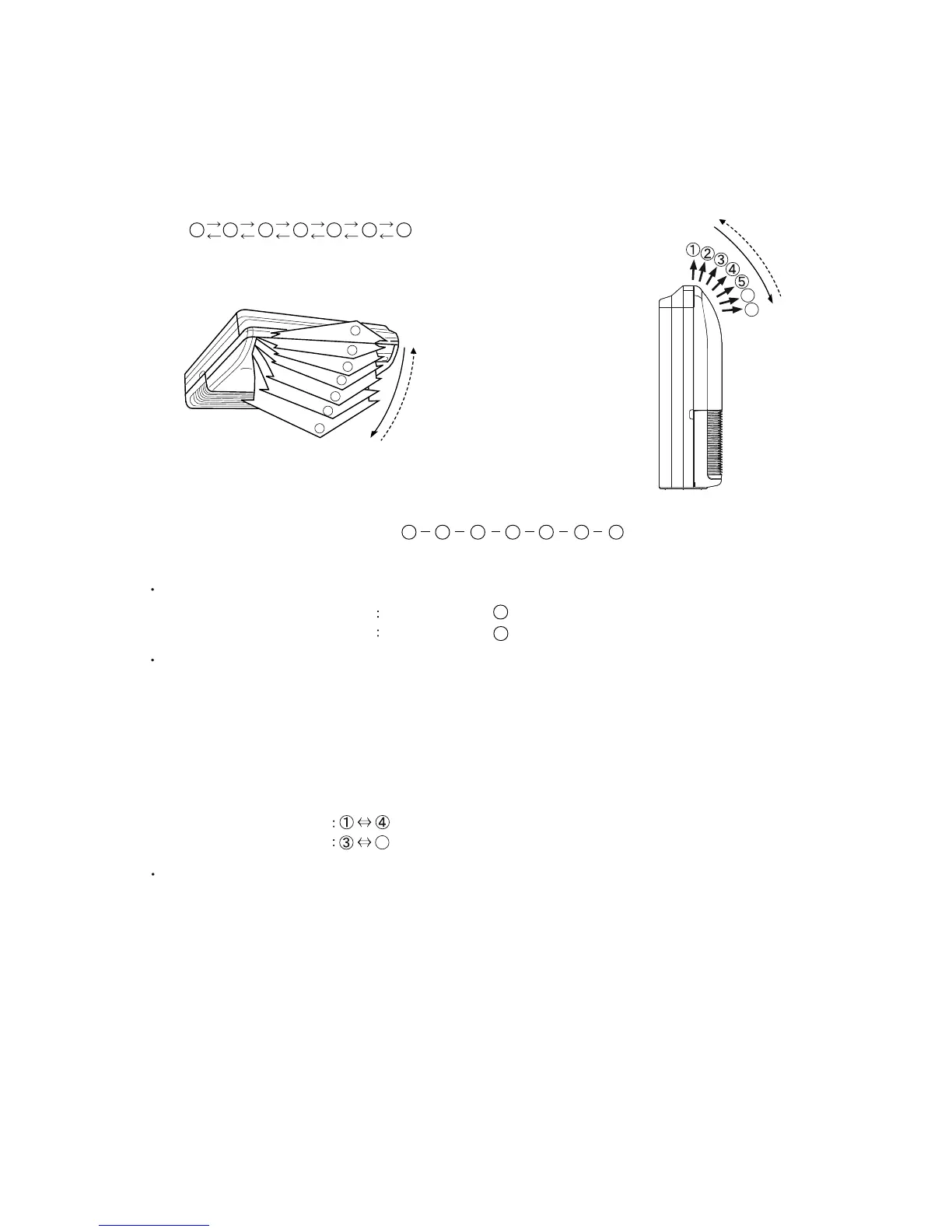

( Fig.11 : Air Direction Range : Ceiling installation)
For Floor / Ceiling Type < AB*G14/18 >
1-1. VERTICAL LOUVER CONTROL
Each time the button is pressed, the air direction range will
change as follows:
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry / Fan mode
Horizontal flow
Heating mode
Downward flow
(Function Range)
(Operation Range)
1-2. SWING OPERATION
When the swing signal is received from the remote controller, the vertical louver starts to swing.
The range of swing depends on the set airflow direction.
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrupted
and it stops at either upper end or bottom end.
The indoor fan motor starts after the louver reaches to the setting position.
( Stop mode means Operation stop.)
1
4
5
6
7
3
2
1234567
1234567
1
7
(Swinging Range)
7
Cooling / Dry / Fan mode
Heating mode
6
7
( Fig.12 : Air Direction Range : Floor installation)
Cooling / Heating / Dry / Fan mode :
To Next Page
