SERVICE PARTS INFORMATION 2

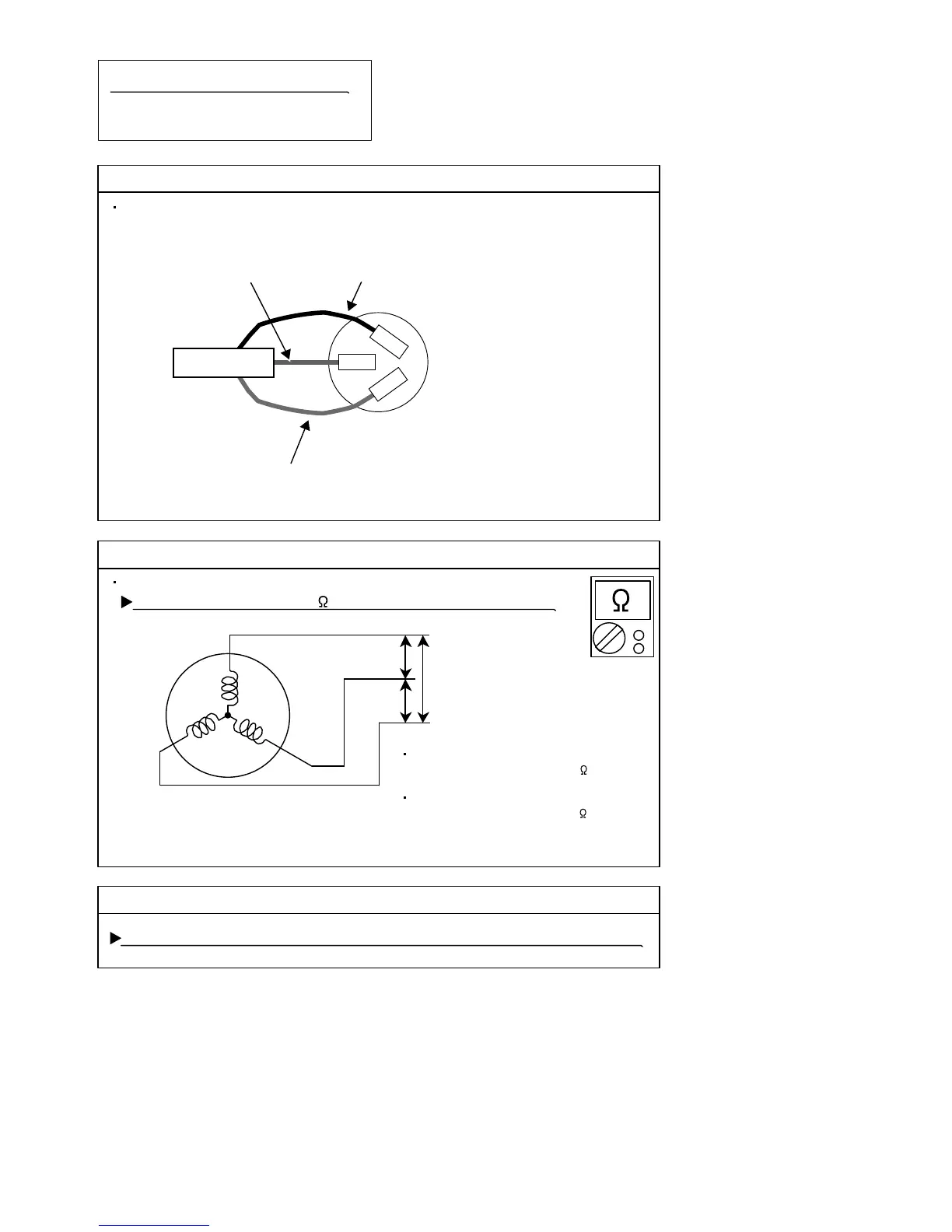

Check Point 1 : Check Connection
Check Point 2 : Check Winding Resistance
Check Point 3 : Replace Main PCB
U(R)
V(S)
W (T)
Inverter Compressor
Check terminal connection of Compressor
(loose or incorrect wiring)
Check winding resistance of each terminal
If the resistance value is 0 or infinite, replace Compressor.
If the symptom does not change with above Check 1, 2, replace Main PCB.
02-40
U(R)
(RED)
V(S)
(WHITE)
W (T)
(BLACK)
Main PCB
Resistance Value : 0.97 at 20°C
Resistance Value : 0.88 at 20°C
For AO*G18/ 24LAT3
For AO*G30LAT4
To Next Page
