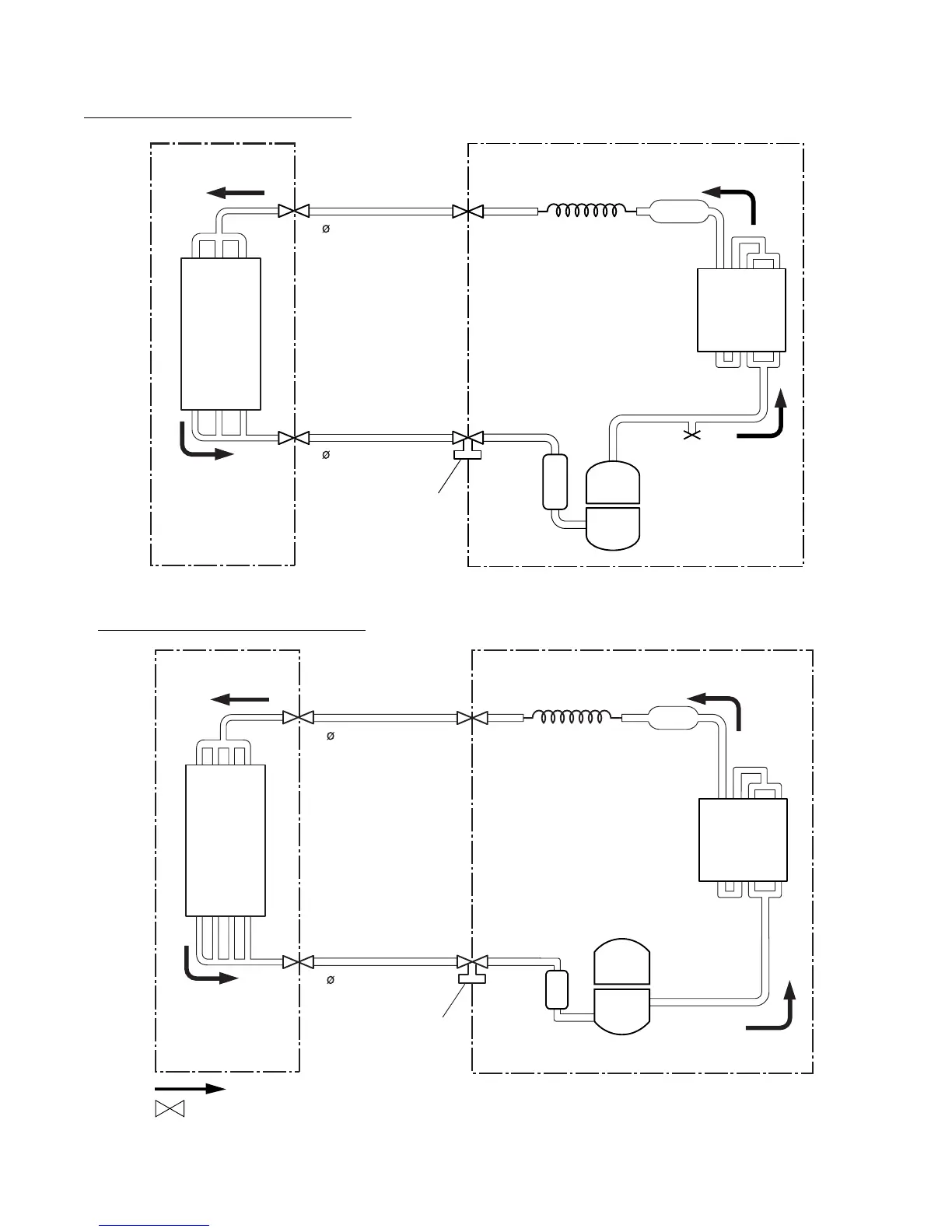

Models : ABY18FBBJ / AOY18FNBK
Cooling
: Flare coupling
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Charging valve
INDOOR UNIT
Evaporator
Capillary tube
Compressor
Strainer
OUTDOOR UNIT
Condenser
Models : ABY24FBBJ / AOY24FNBK
Strainer
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Capillary tube
Charging valve
Compressor
OUTDOOR UNITINDOOR UNIT
Evaporator
Condenser
2004.02.16 6
