Fujitsu ABY14FBBJ User Manual
4
of 1
of 1 rating
38 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Models
:
ABY18UBBJ / AOY18UNBKL
Models
:
ABY24UBBJ / AOY24UNBKL

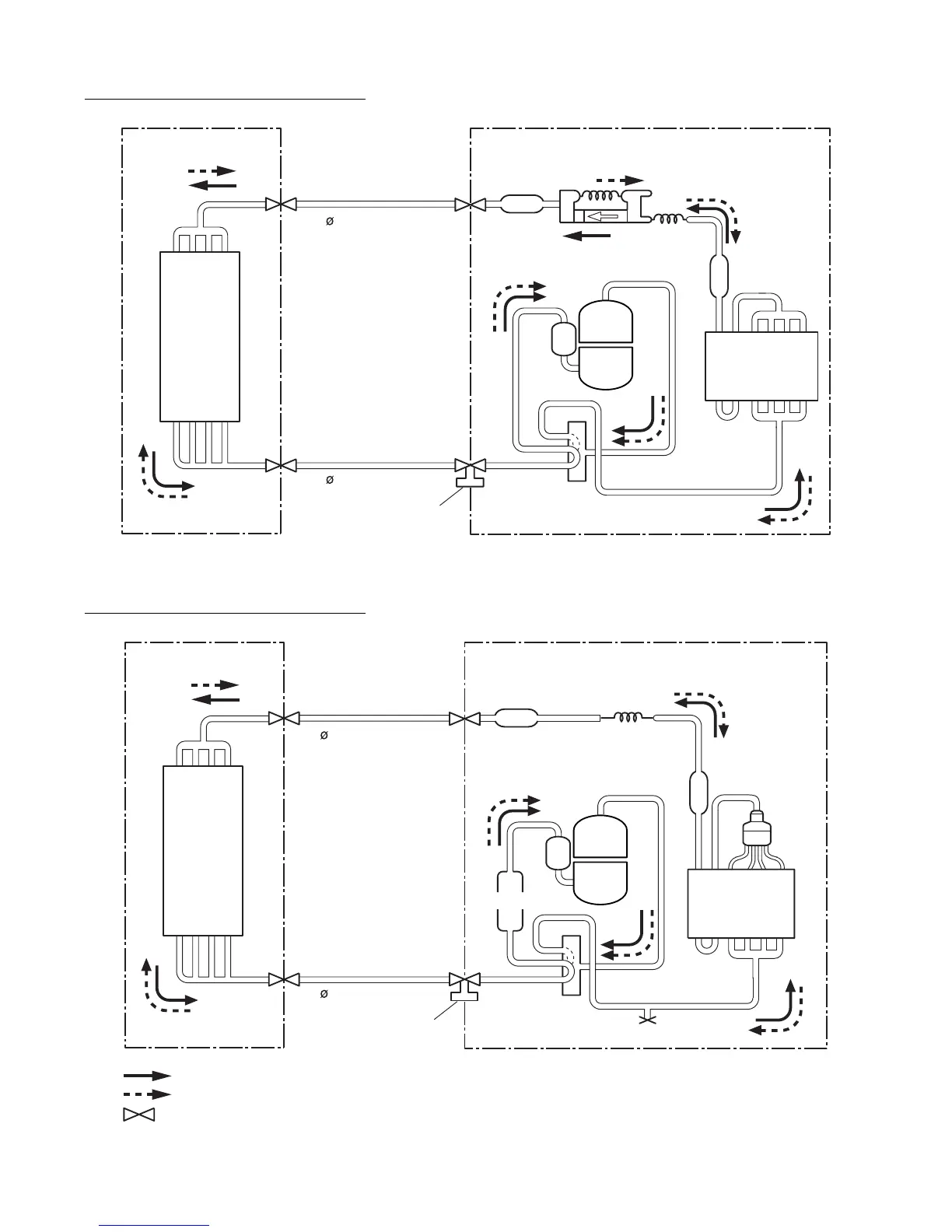

Evapor
ator
Distributor
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Cooling
Heating
:
Flare coupling
INDOOR UNIT
Strainer
Strainer
Charging valv
e
4-W
a
y
valv
e
Compressor
Capillar
y
tube
OUTDOOR UNIT
Condenser
Accumulator
Evapor
ator
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
INDOOR UNIT
Strainer
Strainer
Charging valv
e
4-W
a
y
valv
e
Compressor
Capillar
y
tube
OUTDOOR UNIT
Condenser
2004.02.16
7
7
9
Table of Contents
Table of Contents
1
Specifications
2
Electrical Data
3
Fan Motor
3
Outline and Dimensions
4
Refrigerant System Diagram
6
Circuit Diagram
9
Error Display
13
Pcb Circuit Diagram
14
DISASSEMBLY ILLUSTRATION (Indoor Unit)
16
DISASSEMBLY ILLUSTRATION (Outdoor Unit)
23
PARTS LIST (Indoor Unit)
32
PARTS LIST (Outdoor Unit)
34
Standard Accessories
36
Indoor Unit Accessories
36
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fujitsu ABY14FBBJ and is the answer not in the manual?
Ask a question
Fujitsu ABY14FBBJ Specifications
General
Brand
Fujitsu
Model
ABY14FBBJ
Category
Air Conditioner
Language
English
