Fujitsu ABY30TBAG User Manual

2003.12.12 PRELIMINARY
11

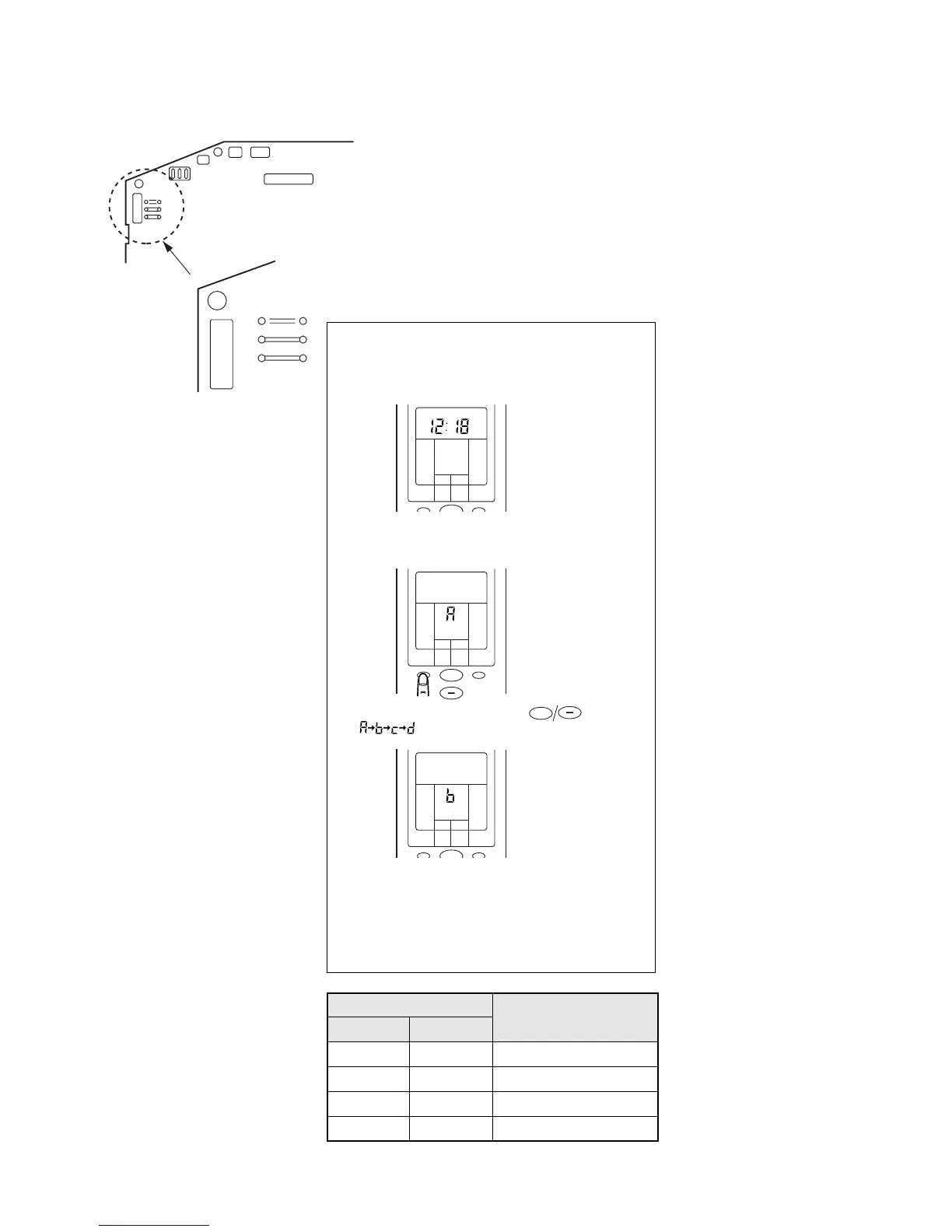

REMOTE CONTROL UNIT CODE SWITCHING
JM1
JM2
JM3
JM1
JM2
JM3
Indoor unit
Printed circuit board
Jumper wire
JM 2 JM 3
Connect Connect
Remote control unit
signal selector switch
A (Primary setting)
Connect Disconnect B
Disconnect Connect C
Disconnect Disconnect D
SET
TIME
SET
TEMP.
FAN
CONTROL
MASTER
CONTROL
+
+
CLOCK
SET
TIME
SET
TEMP.
FAN
CONTROL
MASTER
CONTROL
+
SET
TIME
SET
TEMP.
FAN
CONTROL
MASTER
CONTROL
+
€ Remote control unit settings
(1) Press the START/STOP button and display
only the clock.
(2) Press the MASTER CONTROL button continuously
for more than five seconds to display the current
signal code.
(3) Change the signal code with the button
( ).
(4) Press the MASTER CONTROL button again to return
to the clock display and change the signal code.
Confirm the setting of the remote control unit signal codes
setting and the printed circuit board setting.
If these are not confirmed, the remote control unit cannot be
used to operate for the air conditioner.
Other models

Fujitsu ABY30TBAG Specifications

General

Cooling Capacity	3.0 kW
Heating Capacity	3.4 kW
Energy Efficiency Class (Cooling)	A++
Energy Efficiency Class (Heating)	A+
Refrigerant	R32
Power Source	Electric
Type	Split
Power Supply	220-240 V, 50 Hz
