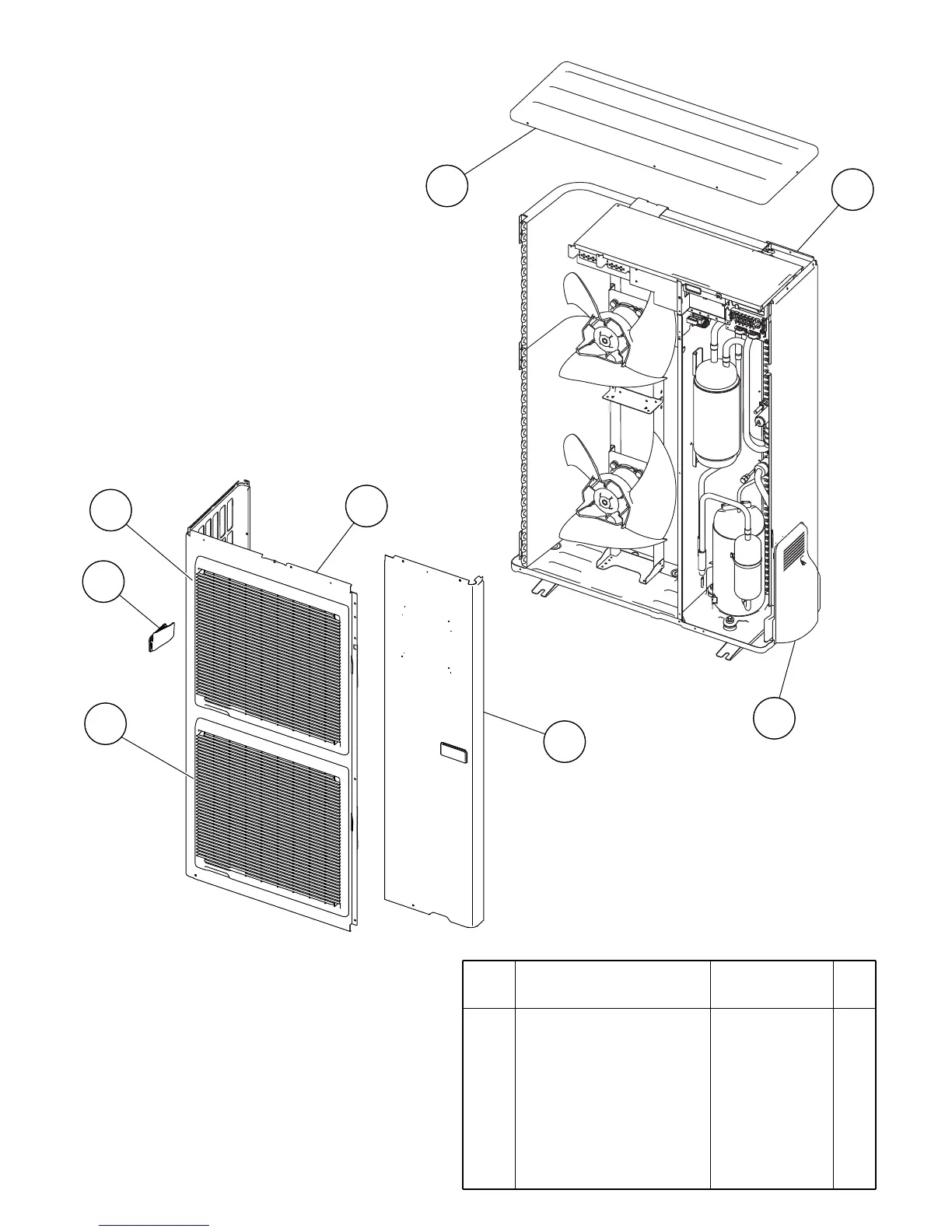

OUTDOOR UNIT
PARTS
2007.02.02
22
1
T
op Panel Sub
Assy
2
Front Panel
3
Fan Guard
4
Grip Side
5
Service Panel Sub
Assy
6
Right Panel Sub
Assy
7
V
alve Cover
9374417025
9374094028
9374330010
9374173013
9374415069
9374416141
9374174010
--
Emblem Rear
9351355005
Description
Parts number
Ref.
No.
Ord.
Q'ty
22
24
Table of Contents
Table of Contents
1
Air Conditioner
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
5
Circuit Diagram
6
Indoor Pcb Circuit Diagram
8
Outdoor Pcb Circuit Diagram
12
Troubleshooting
15
Error Contents
15
Remote Control Unit
16
Parts (Indoor Unit)
18
Control Unit
22
Parts (Outdoor Unit)
23
Standard Accessories
27
