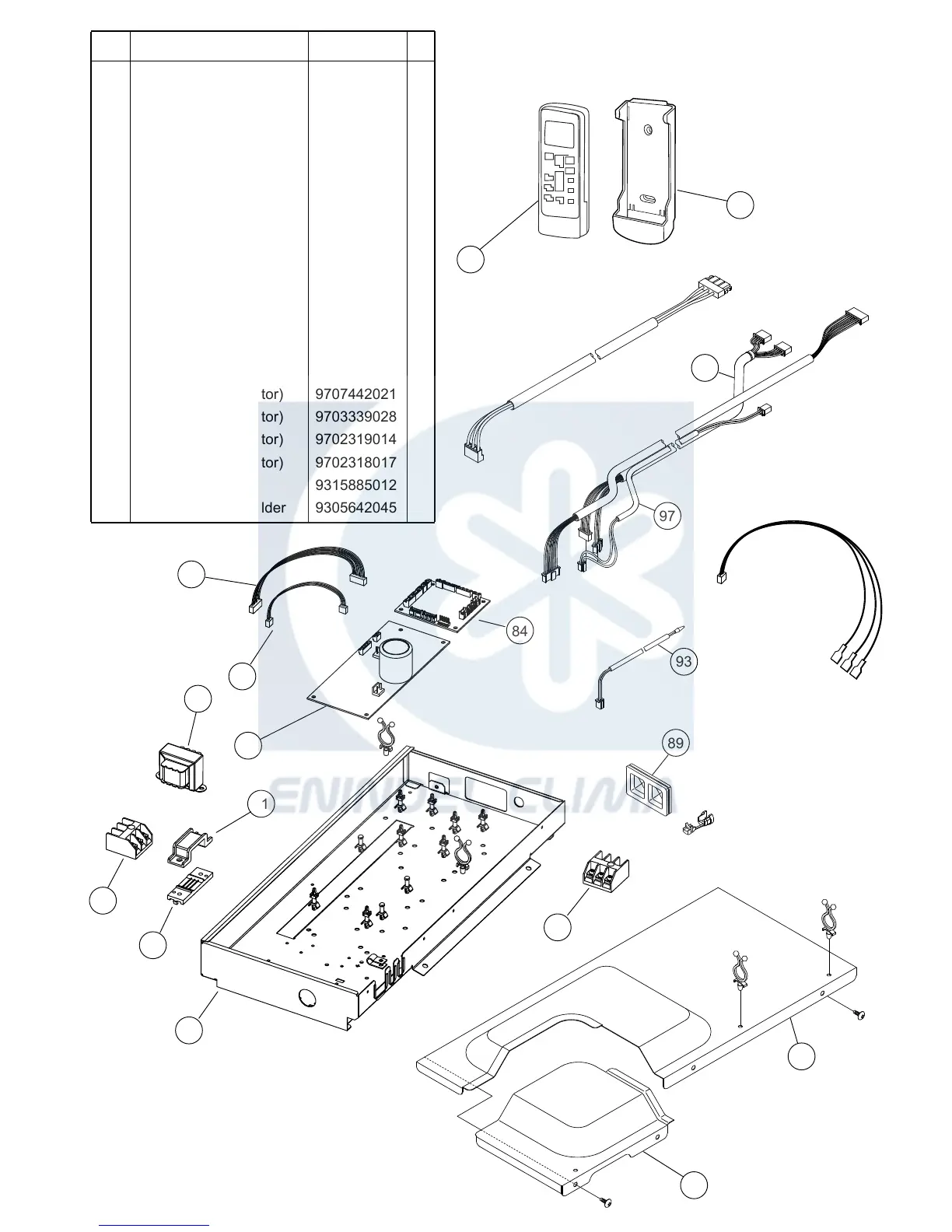

INDOOR UNIT
Control unit
2008.11.25 26
93
99
94
82
83
98
89
88
95
81
87
92
91
86
97
96
84
85
Ref. Description Part number
89 Rubber Bushing 9357376004
81 Control Box Assy 9377912015
93 Room Thermistor 9703299025
84 Controller PCB Assy (36) 9707393460
84 Controller PCB Assy (45) 9707393453
84 Controller PCB Assy (54) 9707393446
94 Wire Assy (Connector) 9707442021
95 Wire Assy (Connector) 9703339028
96 Wire Assy (Connector) 9702319014
97 Wire Assy (Connector) 9702318017
98 Remote Control 9315885012
99 Remote Control Holder 9305642045
83 Control Box B 9359713005
82 Control Box A 9359712008
86 Terminal 3P 9703345012
87 Terminal 3P 9306489045
88 Reactor Assy 9707457018
85 Power Supply PCB Assy 9707398168
91 Cord Clamp A 9359820017
92 Cord Clamp B 9359821014
