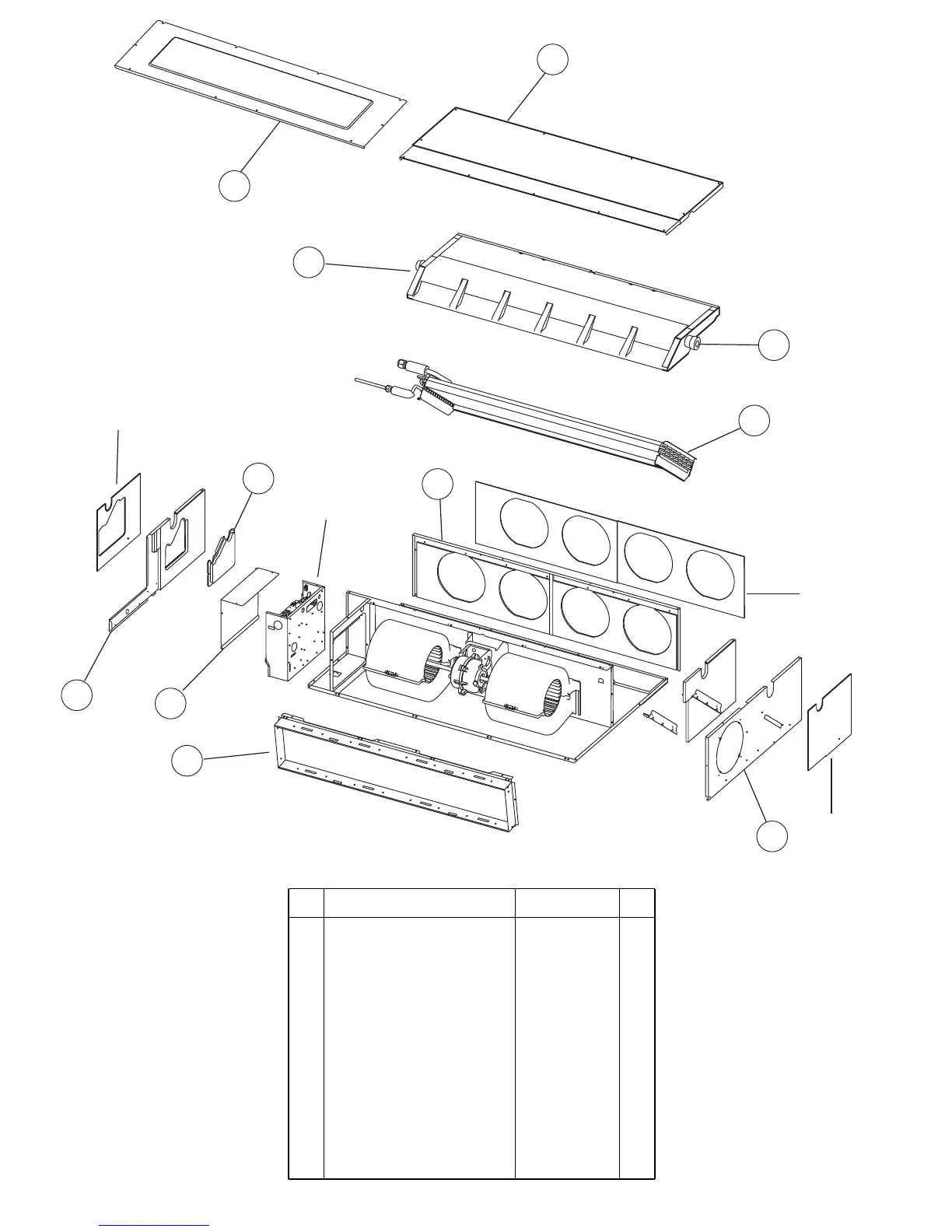

DUCT TYPE
INDOOR UNIT
ARYF22LBTU
ARYF24LBTU
2012.08.29 56
1
2
3
4
5
10
11
7
9
8
6
7 Control Cover-A Sub Assy 9374516018
10 Cabinet L Sub Assy 9374509010
9 Cabinet R Sub Assy 9374508013
1 Intake Cover Sub Assy 9374512010
6 Outlet Panel Sub Assy 9374510016
5 Evaporator Total Assy 9374517145
3 Drain Pan Sub Assy 9374513017
2 Main Panel Sub Assy 9374511013
11 Intake Frame Assy 9374216017
4 Drain Cap 9356541007
8 Bracket (pipe) Sub Assy 9374514014
