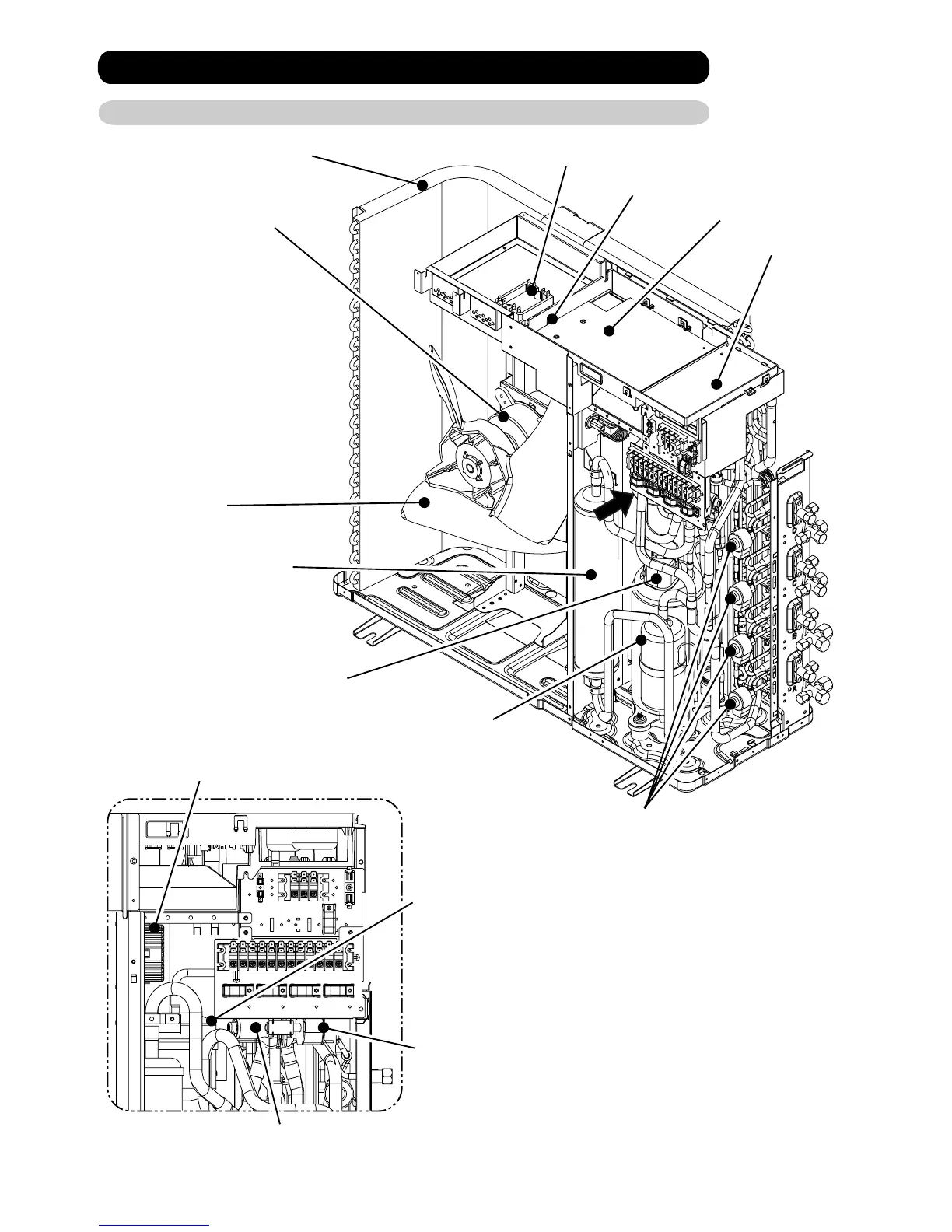

Fujitsu AO*30LMAW4 - For AO*30 LMAW4; Parts Layout Drawing

Main PCB
Filter PCB
Active Filter Module
Thermistor (Heat sink)
Fan motor
Fan
Heat Exchanger
Accumulator
Compressor
4-way valve
Solenoid
Thermistor
(Compressor temp.)
Coil(Expansion valve)&
Expansion valve
VIEW - A
A
Choke coil
Receiver tank
1-2-1 PARTS LAYOUT DRAWING
1-2 For AO*30LMAW4
