Fujitsu AO G09KATA Series Service Manual

Operation mode Fan mode
Speed (rpm)
ASHG18KMTB
ASHG18KMTE
ASHG22KMTB
ASHG22KMTE
ASHG24KMTB
ASHG24KMTE
Heating
POWERFUL 1,400 1,470 1,570
HIGH 1,300 1,370 1,470
MED+ 1,230 1,230 1,230
MED 1,130 1,130 1,130
LOW 900 900 900
QUIET 760 760 760
Cool air prevention 650 650 650
S-LOW 520 520 520
Cooling/Fan
POWERFUL 1,400 1,470 1,570
HIGH 1,260 1,370 1,470
MED 1,080 1,080 1,130
LOW 900 900 900
QUIET 760 760 760
Soft quiet
650*
1
650*
1
650*
1
S-LOW
520*
2
520*
2
520*
2
Dry
X zone: 760
J zone: 670
X zone: 760
J zone: 670
X zone: 760
J zone: 670
*1: Fan mode only
*2: Cooling mode only
 Fan operation
Airflow can be switched in 5 steps such as AUTO, QUIET, LOW, MED, HIGH while indoor unit fan
only runs.
When fan mode is set at AUTO, it operates on MED fan speed.
 Cooling operation
Switch the airflow AUTO, and indoor fan motor will run according to room temperature, as below.
On the other hand, if switched in HIGH—QUIET, indoor motor will run at a constant airflow of COOL
operation modes QUIET, LOW, MED, HIGH as shown in “Fan speed” above.
Airflow change over (Cooling: Auto)
When room
temperature rises
When room
temperature drops
Tr - Ts ≥ 1.5°C
MED mode
LOW mode
LOW mode
1.5
°C > Tr - Ts ≥ 0.5°C
0.5°C > Tr - Ts
Tr - Ts ≥ 2.5°C
2.5
°C > Tr - Ts ≥ 1.5°C
1.5°C > Tr - Ts
 Dry operation
During dry operation, fan speed setting can not be changed as shown in “Fan speed” above.

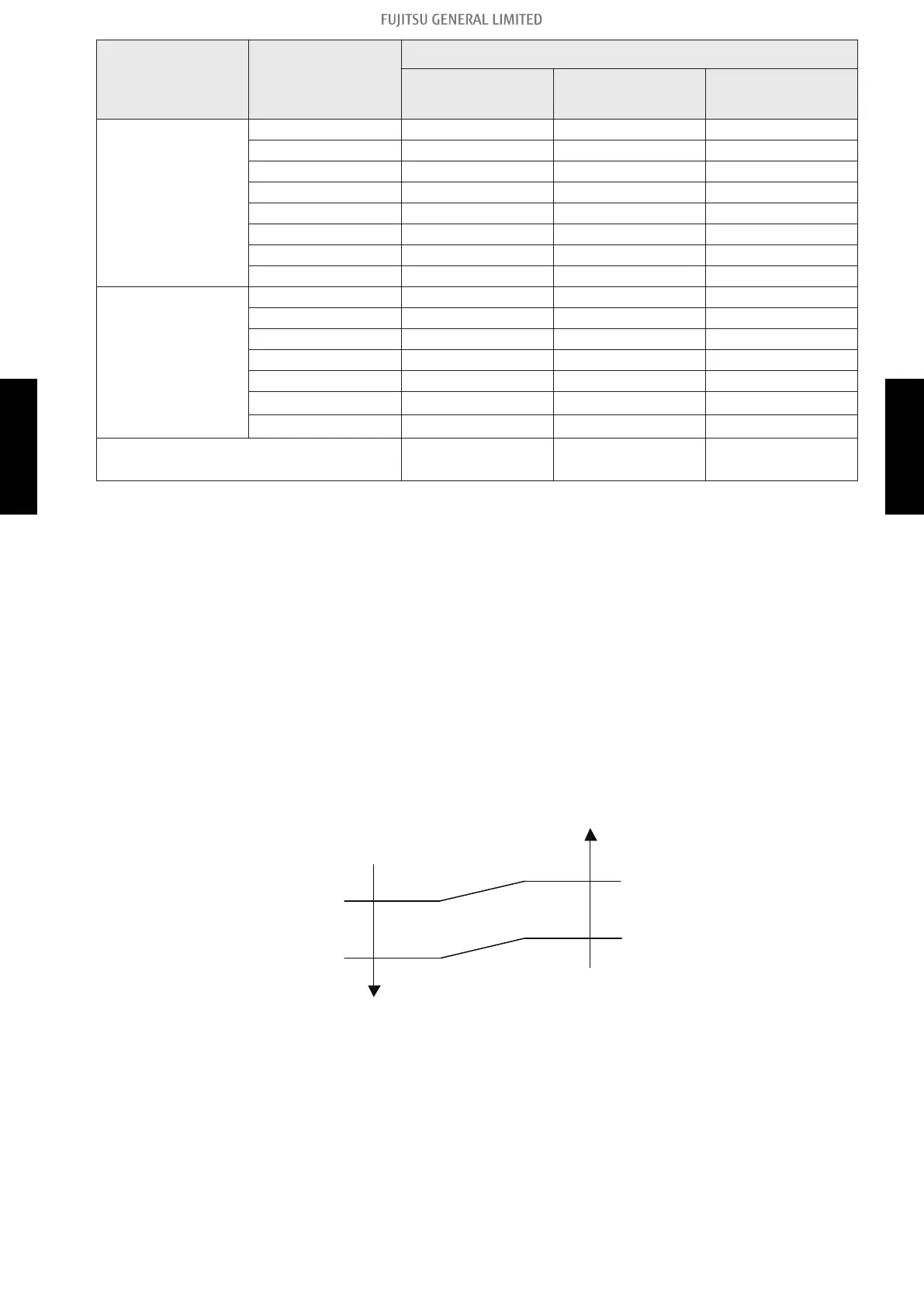

3-1. Indoor fan control
- (04-40) - 3. Fan control
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS
