Cable guide
Step motor
holder assy
Step
motor
holder
62
61
63
Motor case
Motor cover assy
66
65
67
64
Item no. Part no. Part name Service part
61
9387593143 Evaporator total assy (For 07, 09, 12 model) ♦
9387593150 Evaporator total assy (For 14 model) ♦
62 9387590166 Drain pan total assy ♦
63 9387714005 Step motor holder assy ♦
64
9603614010 Brushless motor (For 07, 09, 12 model) ♦
9603572020 Brushless motor (For 14 model) ♦
65 9387055047 Crossflow fan assy ♦
66 9333628004 Bearing D assy ♦
67 9387587098 Base assy ♦

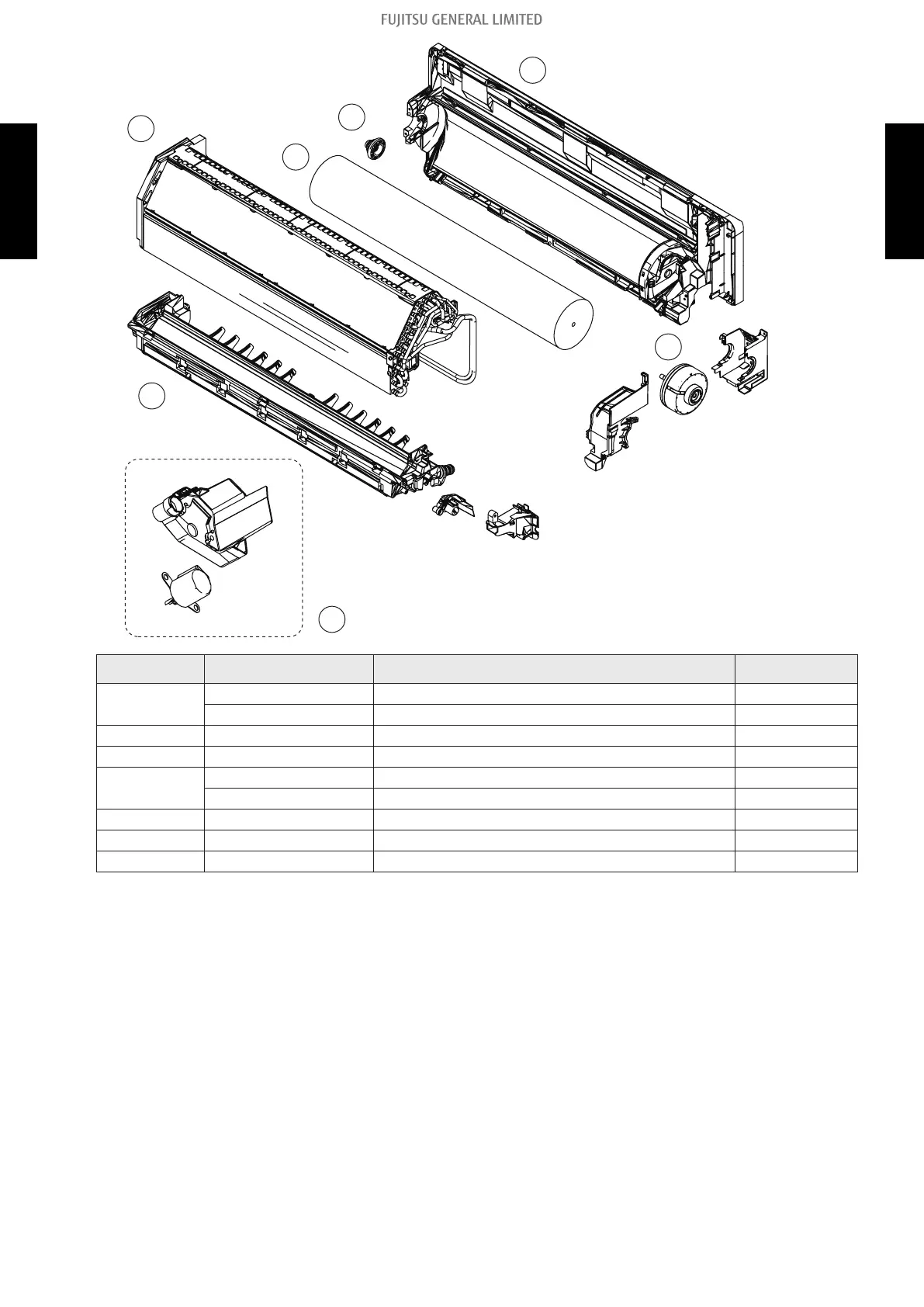

3-4. Wall mounted type - (02-32) - 3. Indoor unit parts list
